In the world of off-grid power, the question “Can I charge a 12V battery with a 400W panel?” is a classic. From a technical standpoint, the answer is a resounding Yes. However, as a custom solar solution provider, my job is to warn you: “Can you” and “Should you” are two very different things.
This guide is part of our 400W Solar Panel Ultimate Guide: TOPCon & BC Tech for RV & Off-Grid. If you are looking for physical installation tips, check the pillar guide first.
If you simply connect a high-voltage 400W panel to a 12V battery, you aren’t charging it—you’re essentially “assaulting” it with excessive voltage.
Quick Answer
Can a 400W solar panel charge a 12V battery? Yes, but you must use an MPPT charge controller. Most 400W solar panels have an open-circuit voltage (Voc) of 40V to 50V, which will damage a 12V battery if connected directly. An MPPT controller steps down the high voltage to the required ~14.4V while boosting the charging current (up to 30A), ensuring safe and efficient energy transfer.
The Voltage Mismatch: A "High-Pressure" Problem
A standard 400W panel, such as those used in residential or high-performance RV setups, is typically a “24V nominal” module. This means its working voltage is far higher than what a 12V battery can handle.
Think of it as trying to fill a water balloon with a high-pressure fire hose. Without a regulator, the “balloon” (your battery) will either leak, overheat, or fail prematurely. In electrical terms, that 40V+ pressure can break down the chemical separators in your battery, leading to permanent capacity loss or thermal runaway.
Why 400W solar panel Demands MPPT (And Why PWM is a Mistake)
I often see DIYers try to save $50 by using a cheap PWM controller with a 400W panel. This is arguably the worst investment move in solar.
The PWM “Clipping” Effect: A PWM controller is a simple switch. It pulls the panel’s voltage down to the battery’s voltage. If your 400W panel is producing 40V at 10A, the PWM forces it down to 13V at 10A. You’ve just turned a 400W panel into a 130W panel. You are throwing away nearly 70% of your money.
The MPPT Advantage: An MPPT (Maximum Power Point Tracking) controller acts like a sophisticated DC-to-DC transformer. It takes that 40V/10A and converts it into ~14V/28A. It “boosts” the current, ensuring you actually get the 400W you paid for.
Can a 400W solar panel charge a 12V battery?
Most guides tell you “the more power, the better.” This is a dangerous half-truth. As a solution provider, we analyze the Charge Rate (C-rate), which is the “speed” at which you push energy into a battery.
The Lead-Acid Warning: If you have a single 100Ah Lead-Acid (AGM or Gel) battery, its ideal charging current is 10A to 15A (0.1C to 0.15C). A 400W panel with an MPPT pushes nearly 30A.
The Result: Pushing 30A into a 100Ah lead-acid battery causes it to “boil” internally, drying out the electrolyte and causing grid corrosion. You might charge fast, but your battery life will drop from 3 years to 12 months.
The Expert Solution: If you insist on 400W for a 12V system, you must use a LiFePO4 (Lithium) battery or a battery bank of at least 300Ah. Lithium can handle the “violence” of 30A; lead-acid cannot.
Real-World Scenarios: Choosing the Right Architecture
Based on our years of customizing off-grid kits, here is how we recommend handling a 400W setup:
Scenario A: The “Compact Power” (12V System)
Best For: Small campers, vans, or tool trailers.

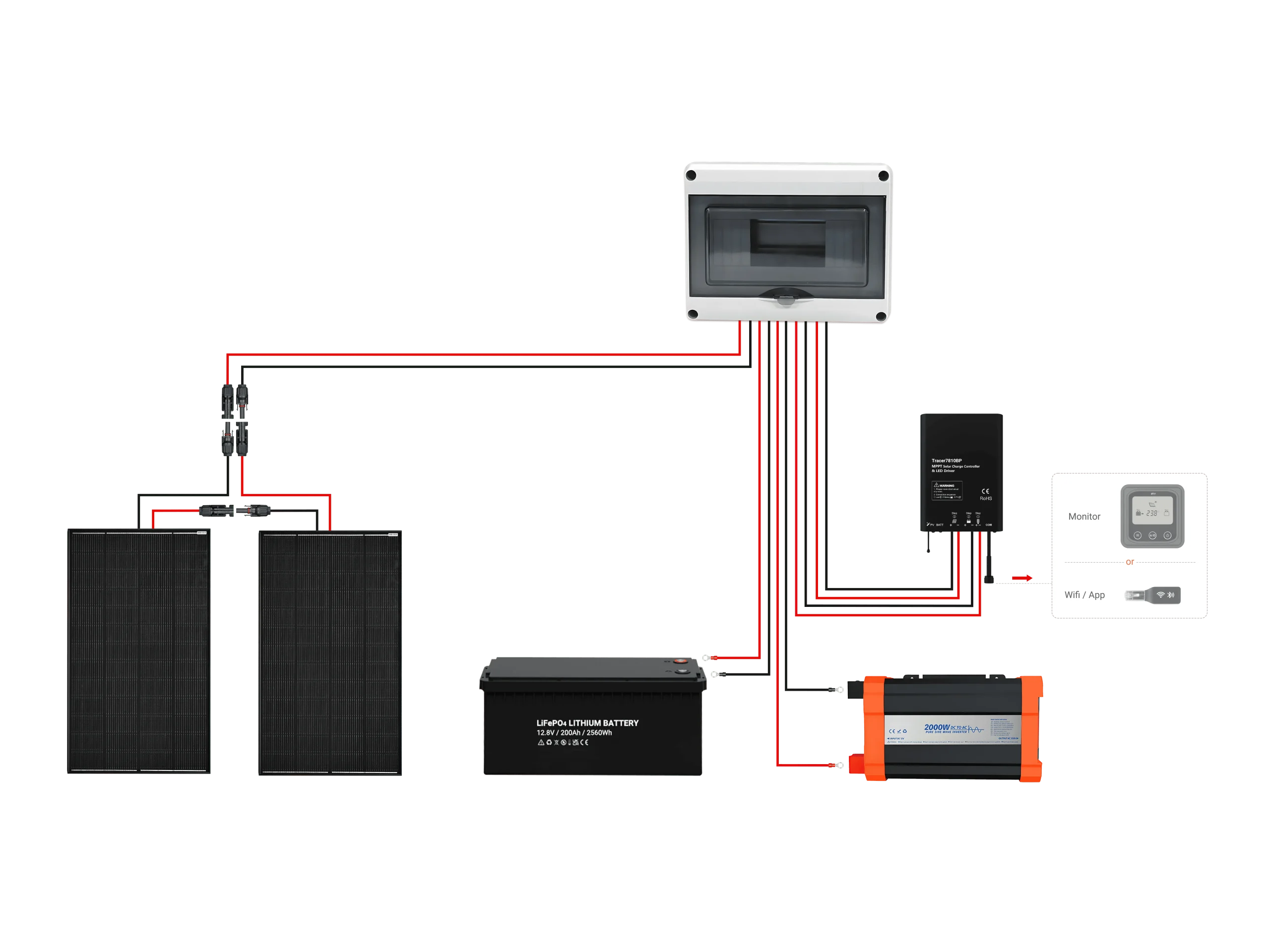

Configuration: 1x400W (or 2x200W Sungold PA612 in parallel) + 40A MPPT + 200Ah Lithium Battery.
Why Sungold PA612? Parallel wiring with two 200W modules reduces the heat stress on individual connectors and provides “shade insurance”—if one part of the roof is shaded, the other half keeps the 12V system alive.
Scenario B: The “Efficiency Upgrade” (Moving to 24V)
Best For: Off-grid cabins or full-time RVers.
Our Recommendation: If you are buying a 400W panel today, upgrade your battery bank to 24V.
The Logic: At 24V, your current drops from 30A to 15A. You can use thinner, cheaper wires, and your inverter will run significantly cooler and more efficiently. For more on this, read our guide on 12V vs 24V: Which Architecture is Better for 400W Systems?.
Safety Checklist: Don't Skimp on the Details
Before you flip the switch on your 400W-to-12V system, check these four things:
Wire Gauge: Do not use the 10 AWG wire that came with your “starter kit.” For 30A over a 10ft run on a 12V system, you need at least 8 AWG to prevent voltage drop and overheating.
Controller Capacity: Use a 40A or 50A MPPT. A 30A controller will run at 100% load during noon, causing the cooling fans to fail or the unit to throttle power.
Fuse Protection: Place a 40A fuse between the controller and the battery. A short circuit at 30A can cause a fire in seconds.
Heat Dissipation: Ensure your MPPT is mounted on a vertical surface with at least 6 inches of clearance for airflow. 400W to 12V conversion generates significant heat.
FAQ: People Also Ask
Q: Can I use a 400W portable panel with a “Solar Generator”? Ans: Check your portable power station’s Max PV Input Voltage. Many mid-sized units have a limit of 30V. Plugging in a 400W panel (Voc 40V+) will fry the internal circuitry instantly. Always verify the Voc before plugging in.
Q: Will a 400W panel charge my 12V battery faster in the rain? Ans: Solar panels don’t like rain, but they do like the cool air that comes with it. A 400W panel will still output ~20-40W in heavy overcast, which might be enough to maintain your battery’s “idle” state, but not for a full recharge.
Q: Why does my MPPT say I’m only getting 200W from a 400W panel? Ans: This is usually due to “Battery Full” throttling. If your battery is already at 90%, the controller limits power to prevent overcharging. It could also be a high-temperature limit or poor wire connection causing resistance.
Charging a 12V battery with a 400W panel is a powerful way to ensure you never run out of juice, provided you respect the physics of the system. Invest in a quality MPPT and a Lithium battery, and you’ll have a reliable power station for years.
