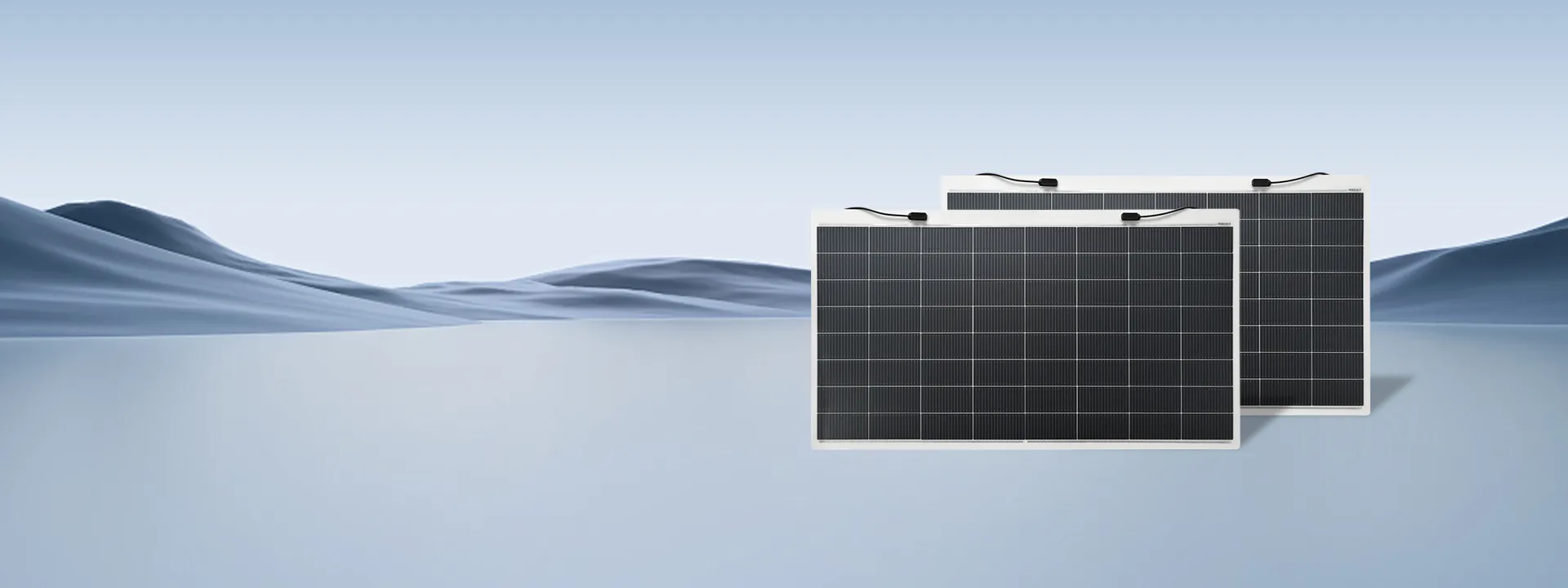

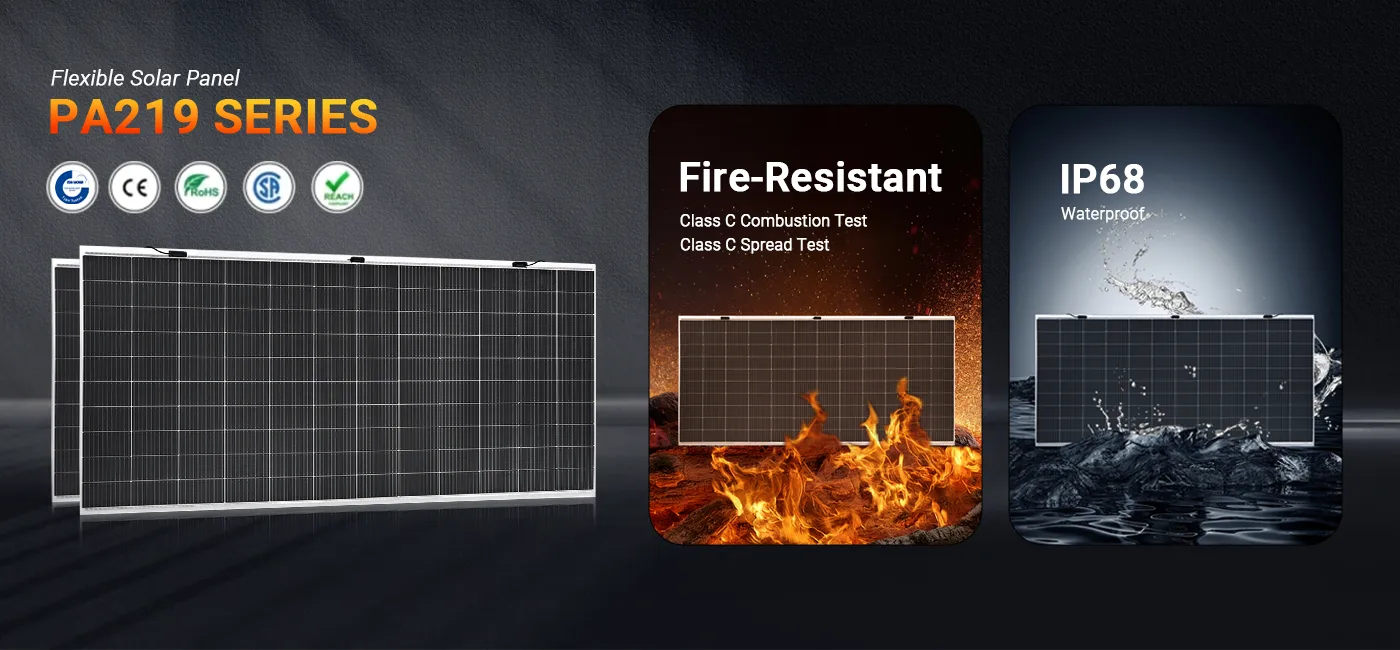

Sungold PA219 Series
Flexible Solar Panel
Why PA219 Flexible Solar Panel Is Built for Your Business
TÜV & CSA Certified
22.70% High Efficiency
Only 3.3kg/㎡
IEC61730 & IEC61215 Tested
Class C & Class C Flame Retardant
Why Choose PA219？Over Standard Flexible Solar Panels
Unmatched Fire Safety：Our PA219 flexible solar panels feature flame-retardant polymer composites, passing IEC 61730-2 Class C tests. Reduce fire risks and ensure safe, high-load operation – ideal for commercial roofing and sensitive installations.

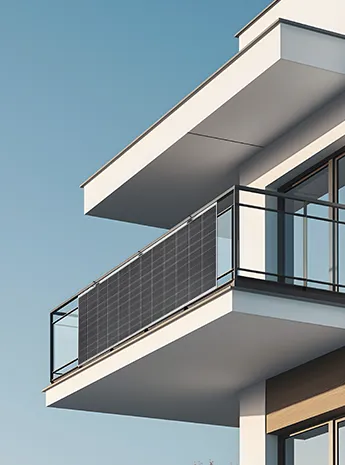

Solar Power, Everywhere: From balconies to off-grid cabins, PA219’s lightweight and flexible design adapts to any surface. At just 35% the weight of traditional panels, it’s the go-to solution for retailers and contractors tackling low-load roofs or custom projects.
Where the PA219 Series Performs Best
Built to withstand tough conditions without compromising integrity, Sungold solar panels are designed for longevity, delivering customer advantages for commercial roofing and custom roofs.
Advanced Technology for Flexible, Off-Grid Solar Performance
Anti-Glare Design for Safety
The PA219 With a matte coating that cuts glare, PA219 ensures safety near airports or urban rooftops – a must-have for project developers.
Excellent Anti-PID Performance
Frameless polymer design beats degradation, passing IEC certification for stable, long-term performance – perfect for off-grid reliability.
Crack-Resistant Design for Durability
High-strength composites and symmetric design prevent micro-cracks, passing IEC61730 hail tests. Built to last, even in harsh climates.
PA219 Flexible Solar Panels-Full Series
Complete specification comparison across the PA219 Flexible Solar Panels series for B2B sourcing, OEM/ODM evaluation, and project-based solar integration.
| Model | PA219-100W | PA219-150W | PA219-200W | PA219-265W | PA219-295W | PA219-325W | PA219-400W | PA219-445W | PA219-490W |
|---|---|---|---|---|---|---|---|---|---|
| Power Voltage | 100W/24.8V | 150W/25.4V | 200W/34.2V | 265W/22.9V | 295W/25.4V | 325W/27.9V | 400W/34.3V | 445W/38.1V | 490W/41.9V |
| Open Circuit Voltage | 28.0V | 28.7V | 40.4V | 25.8V | 28.7V | 31.5V | 38.7V | 43.0V | 47.3V |
| Operating Voltage | 24.8V | 25.4V | 34.2V | 22.9V | 25.4V | 27.9V | 34.3V | 38.1V | 41.9V |
| Short Circuit Current | 4.23A | 6.20A | 6.14A | 12.15A | 12.19A | 12.23A | 12.24A | 12.26A | 12.28A |
| Operating Current | 4.04A | 5.91A | 5.85A | 11.58A | 11.62A | 11.65A | 11.67A | 11.68A | 11.70A |
| Max System Voltage | 1500V DC(IEC) | ||||||||
| Cell Type | Monocrystalline | ||||||||
| Cell Efficiency | >25.0% | ||||||||
| Warranty | 10 Years | ||||||||
| Weight | 1.7kg | 2.6kg | 3.6kg | 4.5kg | 5.1kg | 5.5kg | 6.8kg | 7.5kg | 8.2kg |
| Product Dimension | 890*595*3mm | 1005*780*3mm | 1380*780*3mm | 1515*925*3mm | 1515*1020*3mm | 1515*1110*3mm | 2250*920*3mm | 2250*1015*3mm | 2250*1110*3mm |
| Remarks | SUNGOLD Offer Customize Service,Please Refer To Our Website Or Ask SUNGOLD Workers For More Sizes And The Latest Parameters. | ||||||||

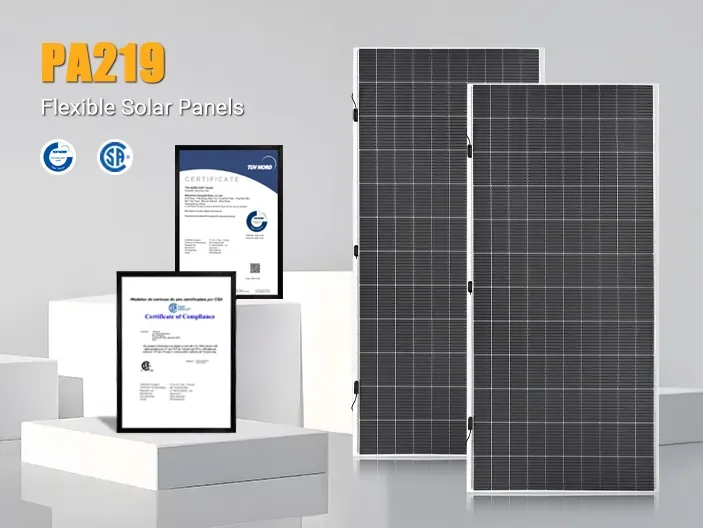

Certifications
PA219 series
Sungold PA219 series bifacial Solar panels 200w are CE, RoHS, TUV, and CSA certified, ensuring superior quality and safety. After a series of rigorous tests, including UV, humidity, and heat resistance, thermal cycling, and static mechanical load tests, they have demonstrated excellent reliability and durability under a variety of environmental conditions.

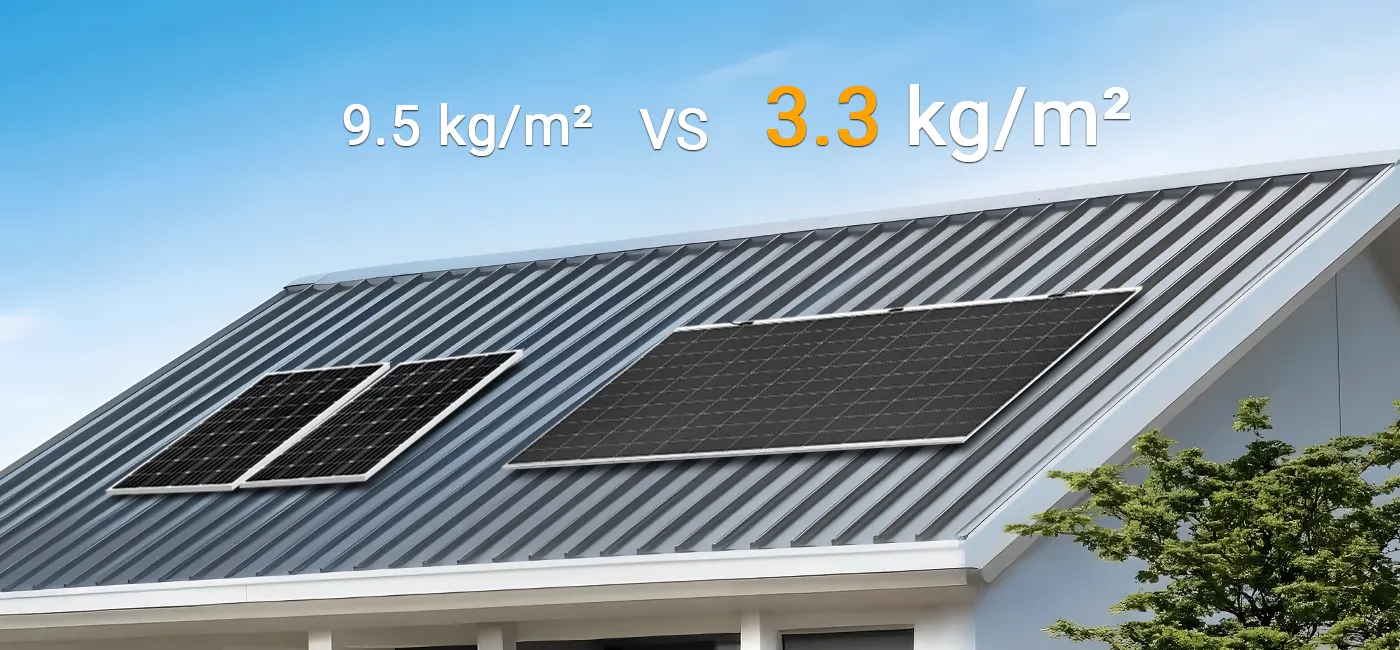

Lightweight Design，solar everywhere
With just 3.3 kg/m², the PA219 flexible solar panel weighs only 35% of traditional rigid solar panels, making it ideal for roofs with lower load-bearing capacity, such as steel tile or older structures. Even roofs with a load capacity of only 5 kg/㎡ can easily accommodate the installation of these flexible solar panels on roof, overcoming the challenge of high load requirements often associated with traditional solar panel systems.

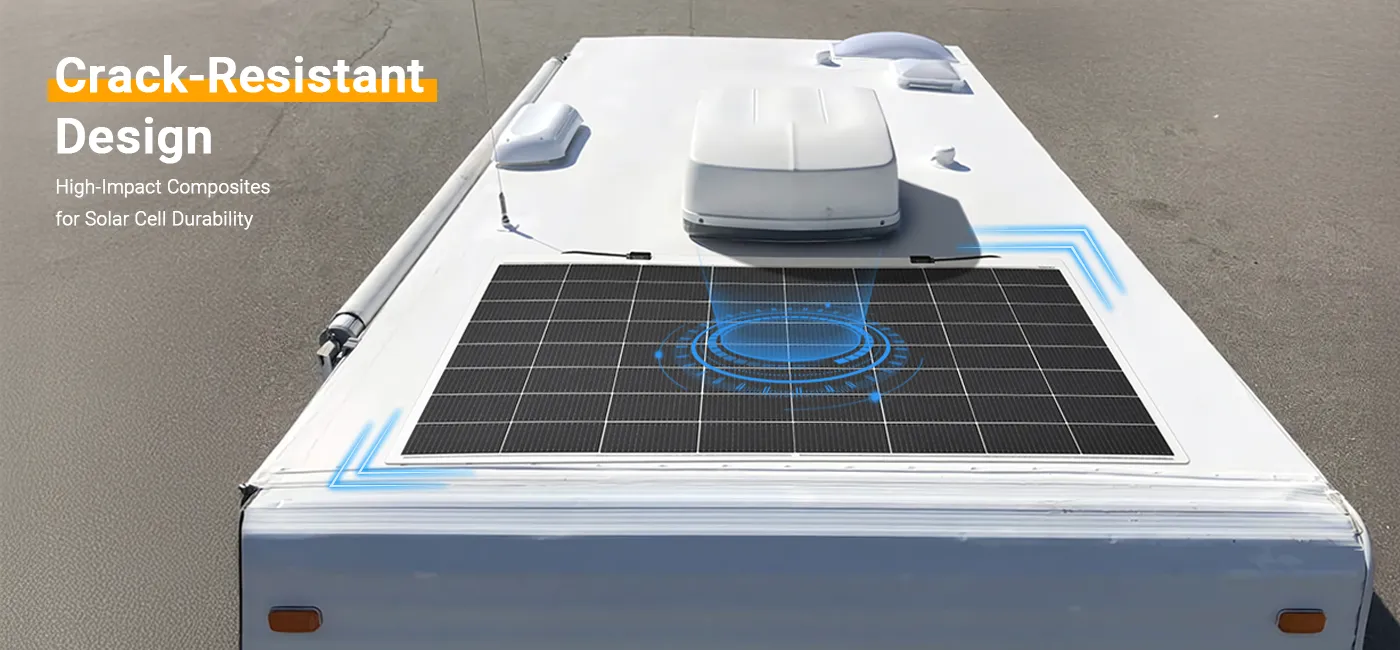

Crack-Resistant Design for Enhanced Durability
The PA219 series uses composite materials with high bending modulus, strong bending strength, and impact resistance to ensure even stress distribution on the solar cells during bending or deformation, preventing micro-cracks. Its symmetric structural design has passed the IEC61730 hail test, demonstrating excellent impact resistance and long-term durability.

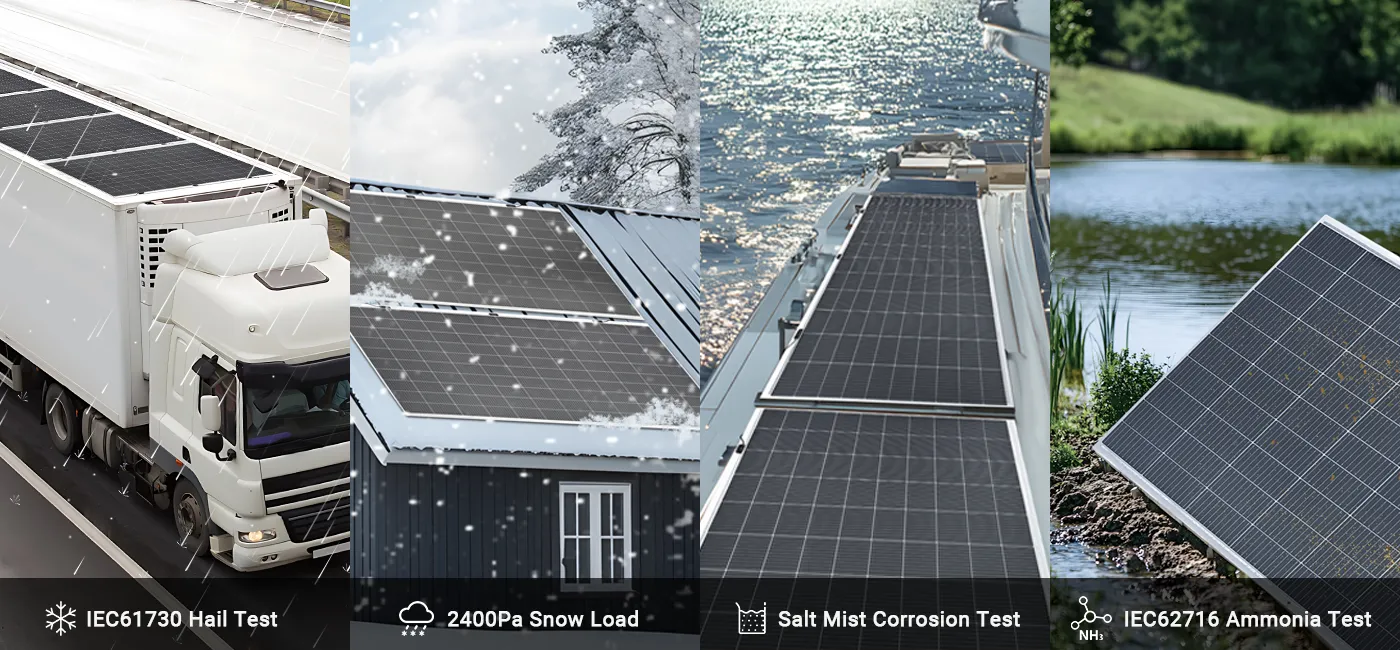

Certifications and Reliability Testing for Extreme Environments
The PA219 solar panel has passed international standard tests, making it adaptable to various extreme climates and environments worldwide. Whether facing challenges like salt mist corrosion, hail, snow load, or high ammonia concentrations in installation environments, the PA219 100 Watt Solar Panels operate reliably, ensuring long-term stability in harsh conditions
Powering places where traditional solar panels can't reach.
The PA219 series uses composite materials with high bending modulus, strong bending strength, and impact resistance to ensure even stress distribution on the solar cells during bending or deformation, preventing micro-cracks. Its symmetric structural design has passed the IEC61730 hail test, demonstrating excellent impact resistance and long-term durability.

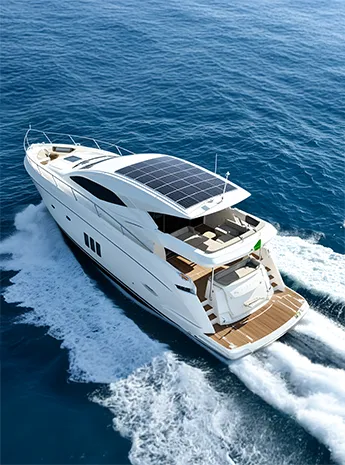

Marine: Power boats with durable, flexible energy.

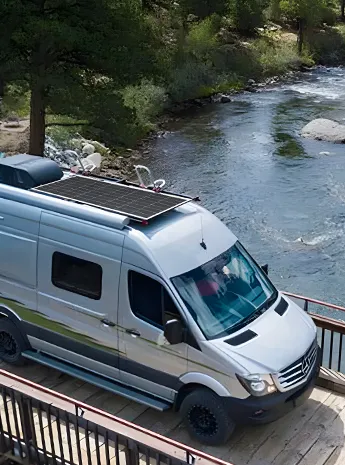

RV: Lightweight solar for mobile adventures.

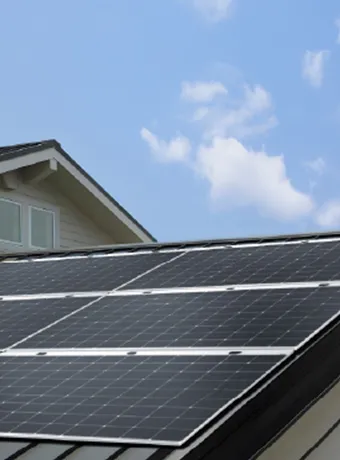

Roofing: Upgrade commercial and residential projects.
Off-Grid: Reliable energy for remote setups.
Marine
RV
Roof
Off-Grid
.
Frequently Asked Questions About PA219 Series
The Sungold PA219 series is a lightweight flexible solar panel line built with polymer composite materials. It includes 9 models: 100W, 150W, 200W, 265W, 290W, 325W, 400W, 445W, and 490W. All models use monocrystalline cells with ≥25.0% cell efficiency, are 3mm thin, and weigh approximately 3.3 kg/m². The series is TÜV and CSA certified with a Class C fire rating and a 10-year product warranty.
The PA219 holds TÜV (TÜV Rheinland) and CSA (Canadian Standards Association) certifications. It has passed IEC 61730 safety testing and IEC 61215 performance qualification, including thermal cycling, damp heat, UV exposure, hail impact, and mechanical load tests. It also carries CE marking and RoHS compliance, with a Class C fire rating under IEC 61730-2.
Yes. The PA219 weighs 3.3 kg/m², approximately 35% of conventional glass-framed solar panels. This allows installation on roofs with load-bearing capacity as low as 5 kg/m², including steel-tile commercial roofs, membrane roofs, and aging residential structures.
The PA219 uses polymer composite materials instead of PET or ETFE backsheets, providing Class C fire rating, 5400Pa snow load and 2400Pa wind load resistance, anti-PID performance, crack resistance from high-bending-modulus composite, and independent TÜV and CSA certification.
Yes. At 3mm thick and 3.3 kg/m², the PA219 bonds directly to curved RV roofs and boat decks without mounting brackets. It has passed salt mist corrosion testing and features an anti-glare matte surface. Models range from 100W (1.7 kg) to 490W (8.2 kg).
Yes. Sungold provides OEM/ODM customization for the PA219 series, including custom panel dimensions, power configurations, connector types, and private-label branding.
