As solar technology becomes increasingly efficient and accessible, understanding how to size your system correctly is critical, especially for businesses and off-grid applications. One of the most common questions from B2B customers is: how long does it take for a 200W solar panel to charge a 12V battery?
In this comprehensive guide, we will address this and related questions, providing real-world calculations and insights to help you optimize your solar energy setup.
How Big of a Solar Panel Do I Need to Charge a 12V Battery?
Choosing the right solar panel size depends on two key factors:
Battery capacity (Ah)
Desired charging speed
For example:
A standard 12V 100Ah battery stores 1,200Wh (12V × 100Ah) of energy.
If you aim to fully charge it in one day (assuming 5 hours of peak sun), you would need about 240W of solar power, factoring in efficiency losses (~20%).
Key takeaway:
For occasional use: a 100W panel may suffice.
For daily full charge needs: 200W+ panels are recommended.
According to the National Renewable Energy Laboratory (NREL), average solar panel efficiency is around 20%-22%, which affects sizing calculations.
How Many Batteries Do I Need for a 200 Watt Solar Panel?
A 200W solar panel typically generates:
About 800Wh to 1,000Wh per day (depending on location and weather).
In this case:
A 12V 50Ah or 12V 75Ah battery would match well if you aim for daily charging cycles.
Calculation Example:
Daily production: 200W × 5 hours = 1,000Wh
Suitable battery: around 80% of production = 12V 75Ah battery.
Pro Tip:
For system longevity, it’s recommended to oversize the battery bank by 20%-30% to accommodate cloudy days and efficiency losses.

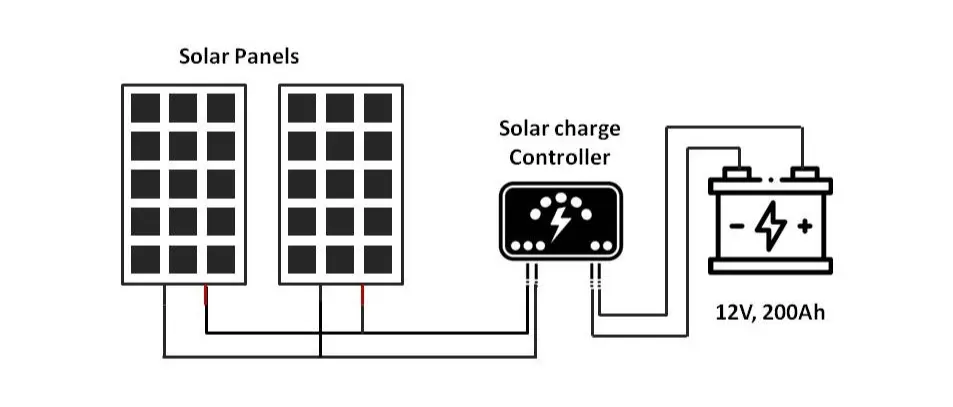

How Many Solar Panels Do I Need to Charge a 12V 200Ah Battery?
A 12V 200Ah battery stores:
12V × 200Ah = 2,400Wh (2.4kWh).
Assuming 5 hours of full sun daily:
A 200W solar panel generates ~1,000Wh/day.
Therefore, you would need at least two 200W panels to fully charge a 12V 200Ah battery in a single day.
Summary:
| Battery Size | Solar Panel Needed | Panels Required |
|---|---|---|
| 12V 200Ah | 2,400Wh | 2 x 200W panels |
How Long Will It Take a 400W Solar Panel to Charge a 100AH Battery?
A 12V 100Ah battery = 1,200Wh of stored energy.
Daily output from a 400W panel:
400W × 5h = 2,000Wh.
Thus, under ideal conditions:
Charging a fully depleted 100Ah battery would take approximately 3-4 hours.
Important: Always consider real-world factors:
Panel orientation
Weather variations
System losses (~15%-20%)
What Can a 200W Solar Panel Charge?
A single 200W solar panel can power several devices daily, including:
LED lighting (6-10 hours)
Small DC refrigerators
Smartphones, laptops
Small pumps or fans
B2B Application Tip:
In mobile or off-grid setups (e.g., RVs, security systems, IoT devices), 200W is enough to maintain essential operations without grid reliance.
What Size Solar Panel Do I Need to Charge a Leisure Battery?
For typical leisure batteries (80Ah to 110Ah):
A 100W to 200W panel is generally sufficient for weekend use.
For regular or full-time off-grid operation, 200W+ panels are recommended.
Charging Example:
12V 100Ah battery → Needs 1,200Wh
200W panel × 5h = 1,000Wh → Can almost fully charge with good sunlight.
Can You Charge a 12V Battery Directly from a Solar Panel?
Technically, yes — but it is not recommended.
Charging without a solar charge controller can cause overcharging, damaging your battery.
Always use a PWM or MPPT controller between the panel and battery to regulate voltage and current.
Professional Tip:
MPPT controllers are highly recommended for B2B applications as they offer 30% more efficiency than PWM controllers, according to EnergySage reports.
How Many Watts Does a 200 Watt Solar Panel Produce a Day?
Depending on geographic location and weather:
In North America (average), a 200W panel produces:
800Wh to 1,000Wh per day (based on 4-5 hours of peak sunlight).
Regions like Arizona, Texas, or California can see higher yields due to more consistent solar radiation.
Can a 200 Watt Solar Panel Run a Refrigerator?
It depends on the refrigerator type:
Small DC fridges (30-50W): ✅ Yes, easily.
Standard home fridges (100W-300W): ❌ No, not for 24/7 operation without battery backup.
Best Practice:
Use a dedicated battery system between the panel and fridge for consistent performance, especially overnight.
Will a 10 Watt Solar Panel Overcharge a 12 Volt Battery?
A 10W panel is unlikely to overcharge a healthy 12V battery if used occasionally.
However, over extended periods:
It could overcharge a fully charged battery, especially small ones (<20Ah).
Again, using a simple low-cost charge controller is the best way to prevent any risk.
Can You Use House Solar Panel for 12V?
Household solar panels are usually 24V or 48V systems.
Directly connecting a residential panel to a 12V battery can cause overvoltage damage.
Solution:
Use a high-quality MPPT controller that can step down voltage safely.
Alternative:
Select custom solar panels like the Sungold SGM series, specifically designed for low-voltage 12V/24V off-grid applications.
Sizing Your Solar Setup the Smart Way
Sizing solar panels and batteries correctly is crucial for ensuring optimal performance, system longevity, and user satisfaction.
For most B2B projects — whether mobile, off-grid, or stationary — 200W panels provide excellent flexibility for 12V applications.
Sungold Solar specializes in customized, high-efficiency panels (like the SGM Series) tailored for professional off-grid and commercial uses.
If you’re looking to design a reliable solar charging solution for your fleet, devices, or field operations, talk to our team today.
