Shading Tolerance vs. Daily Energy Harvest: The Hidden Math of Off-Grid Solar Performance

In the controlled environment of a laboratory, every solar panel looks like a winner. Standard Test Conditions (STC) assume a perfectly clear sky, 1000W/m² of irradiance, and zero obstructions. But the real world is messy. For a sailor, it’s the shadow of a sailboat mast sweeping across the deck. For a van-lifer, it’s the overhanging branch of a cedar tree at a campsite.

When choosing a solar system, most users focus on peak wattage. However, the metric that truly defines your off-grid freedom isn’t peak power—it’s Shading Tolerance vs. Daily Energy Harvest. At Sungold Solar, we’ve moved beyond marketing claims to quantify exactly how much “lost” energy our optimized bypass diode technology can rescue in complex environments.

The “Christmas Light” Problem: Why a Little Shade Kills a Lot of Power

Traditional solar panels are wired in “strings.” Much like old-fashioned Christmas lights, if one bulb (or solar cell) goes dark, the entire string suffers. When a shadow falls on even 10% of a standard panel, the shaded cells become highly resistive. They don’t just stop producing power; they actually start consuming it, turning into “hot spots.”

Without advanced shading tolerance, a single mast shadow can drop a 100W panel’s output to near zero. This is where the gap between theoretical efficiency and actual daily energy harvest becomes a chasm.

AI Simulation: Quantifying the “Rescued” Energy

To provide our customers with transparent data, Sungold engineers utilized AI-driven shading simulation models. We compared a standard 100W flexible panel against a Sungold PA621 Series module equipped with our optimized bypass diode configuration.

Scenario A: The Moving Mast (Marine Environment)

• The Obstruction: A narrow vertical shadow (mast) moving 15° per hour across the panel.

• Standard Panel Result: The shadow cut across all internal strings, triggering a “choke point.” Total daily harvest: 280Wh.

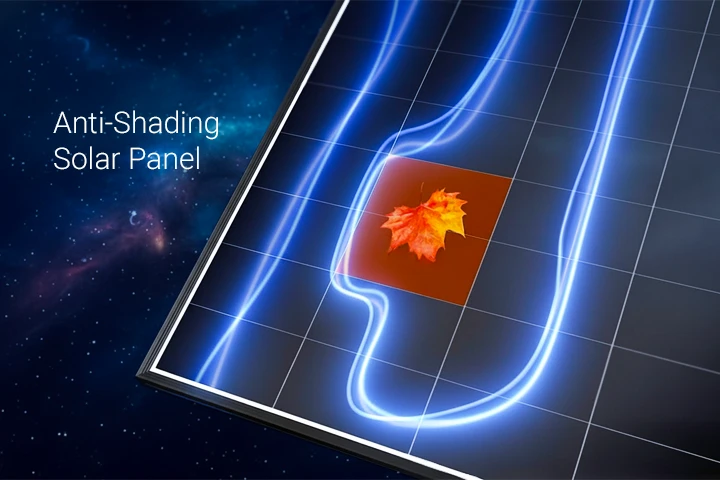

• Sungold Optimized Result: Our diodes allowed current to “bypass” only the specific shaded cells, keeping 70% of the panel active. Total daily harvest: 410Wh.

• The Harvest Gain: A 46% increase in usable energy per day.

Scenario B: The Dappled Forest (RV/Overland)

• The Obstruction: Random “dappled” shade from tree leaves covering roughly 20% of the surface area.

• Standard Panel Result: Constant fluctuating voltage caused the MPPT controller to “hunt” for power, resulting in massive instability. Total daily harvest: 190Wh.

• Sungold Optimized Result: Sophisticated diode placement minimized resistance. Total daily harvest: 315Wh.

• The Harvest Gain: A 65% increase in reliability during peak camping hours.

3. Beyond the Diode: Sungold’s Integrated Shading Strategy

While bypass diodes are the “hardware” solution, shading tolerance vs daily energy harvest is also a result of cell layout and material science.

Parallel Circuit Architecture

Most panels use a simple series connection. Sungold’s high-performance lines utilize a multi-parallel internal architecture. By dividing the panel into more independent zones, a shadow on the bottom left corner has zero electrical impact on the top right corner.

Low-Light Response (Spectral Sensitivity)

Shading isn’t always a hard “black” shadow; it’s often diffuse light (cloudy days or reflected light). Sungold uses high-purity monocrystalline cells with enhanced spectral sensitivity, ensuring that even in “shade-adjacent” conditions, the daily energy harvest remains higher than industry averages.

The Economic Impact: ROI in the Shade

When you evaluate shading tolerance vs daily energy harvest, you are evaluating your return on investment.

• Case Study: A 400W system on a yacht.

• If the system is poorly optimized for shade, you might only net 1.2kWh on a typical sunny-but-obstructed day.

• With Sungold’s optimized system, that same 400W footprint yields 1.8kWh.

Over a 30-day voyage, that extra 18kWh is the difference between running your refrigerator 24/7 and having to start your engine to charge your batteries.

 FAQ: Optimizing Your Harvest

Q: Does shading tolerance matter if I only park in full sun? A: Absolutely. Even “full sun” involves moving shadows from roof vents, air conditioners, or antennas. Small shadows create the most frequent power drops.

Q: Can I fix shading issues with a better MPPT controller? A: An MPPT controller helps, but it can only work with the power the panel provides. If the panel’s internal resistance is high due to poor shading tolerance, even the best controller cannot “find” missing energy.

Q: How do I know if my panel has optimized bypass diodes? A: Check the junction box specifications. Sungold panels clearly list the number and type of diodes used. For complex environments, we recommend our HP and TF series for maximum daily energy harvest.

Q: Does shingled technology help with shading? A: Shingled panels (like our specialized series) offer even better tolerance because they eliminate the busbars that usually act as bottlenecks. Combined with optimized diodes, they offer the highest possible shading resilience.

Conclusion: Don’t Let the Shadows Steal Your Power

In the off-grid world, you don’t live in a lab. You live under trees, next to masts, and under passing clouds. When comparing shading tolerance vs daily energy harvest, the winner is clear: the panel that can “think” its way around an obstruction.

At Sungold Solar, we don’t just build panels; we build energy security. By choosing a system designed for the “real-world shade,” you ensure that your harvest is always as bountiful as the sun allows.
