LE Series
The LE series flexible solar panels are extremely robust and durable, which is highly impact resistant.
High Conversion Efficiency
ETFE Surface Material
Impact Resistant
Wide Range Of Applications
Shadow Optimized
Lightweight,efficient,and excellent performance

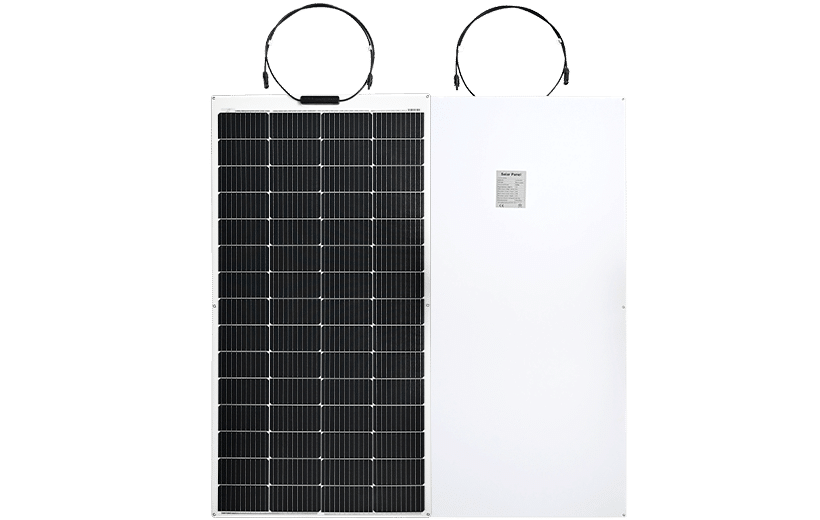

LE Series
The LE Series solar panel for RV inherit the softness of flexible solar panels while being hard and impact-resistant.
The LE Series flexible solar panels also use high-efficiency monocrystalline solar cells to increase the conversion efficiency of the solar panels.
Solar panels are highly durable. Rigorously tested, the 100W solar panel flex is designed to withstand extreme winds of up to 2400 Pa and snow loads of up to 5400 Pa.

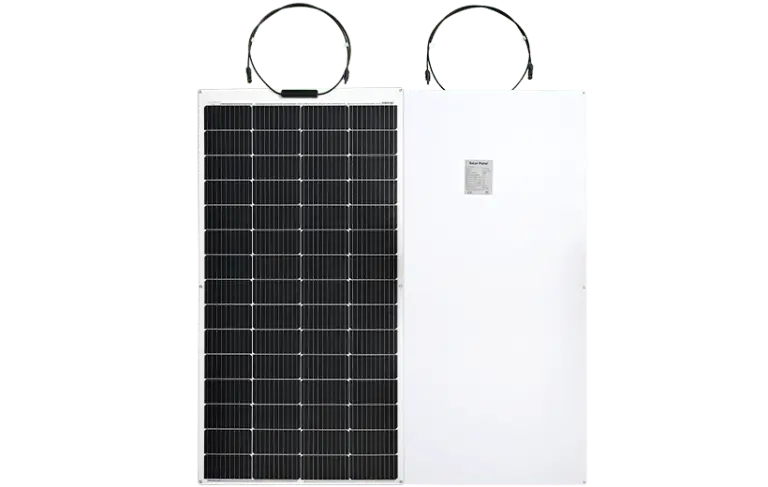

Best RV Solar Panels LE Series
Sungold LE series solar panel is easy to carry and can provide power for RVs, boats, tents, etc., without brackets, energy saving, and environmental protection.
Understand The Technology
The performance of the LE series solar panel was tested under the standard test
High Impact Resistance
Sungold LE Series flexible solar panels are flexible, but also maintain a certain level of rigidity. The solar panel as a whole has better resistance to thermal deformation and high impact resistance. PET backsheet, good heat dissipation, waterproof, high-temperature resistance, easy to clean.
ETFE surface material
Sungold LE series flexible solar panels are made of ETFE surface material. ETFE material has a higher light transmission and longer service life than ordinary materials. ETFE material ensures the best performance of solar panels day after day.
10 Busbar Solar Cell Design
Sungold LE series flexible solar panels use the latest high-efficiency monocrystalline silicon solar cells. 10 busbar solar cell design, 15% more efficient than ordinary three busbars, four busbars, etc. The solar panel has a built-in photovoltaic diode to increase the capture of sunlight.

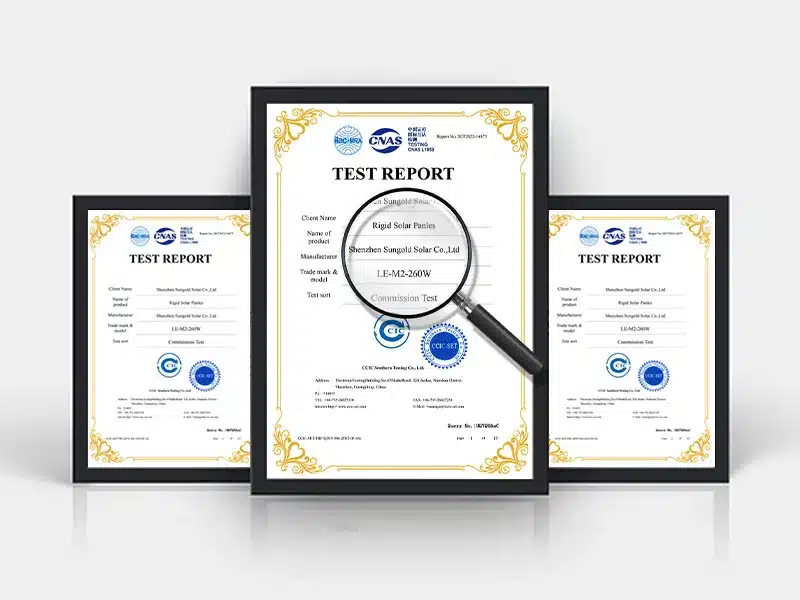

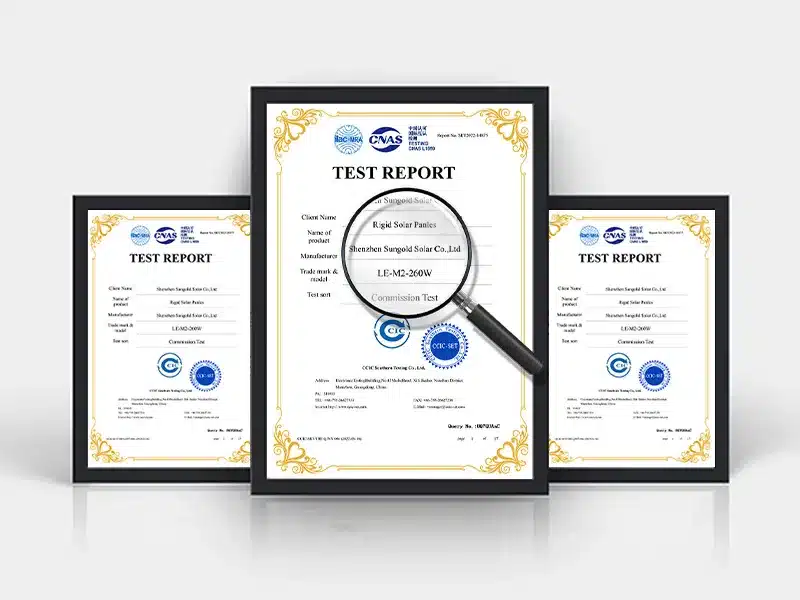

LE SERIES TEST
WHY LE SERIES IS UNIQUE
Under the testing environment of 23-26°C and 50-63%RH. Appearance inspection, insulation test, performance under standard test conditions, wet leakage current test, and thermal cycle test were conducted on LE-M2-260W. This solar panel performed well.
Video
introduction
The Sungold LE Series solar panel is portable and allows installation on trailers, boats, cabins, tents, cars, trucks, yachts, roofs, or any other irregular surface. It provides continuous power to the device without the need for a stand, saving energy and protecting the environment.
Product Specifications
| LE-M2-60W | LE-M2-100W | LE-M2-120W | LE-M2-150W | LE-M2-180W | LE-M2-220W | LE-M2-270W | |
|---|---|---|---|---|---|---|---|
| Model |  |  |  |  |  |  |  |
| Cell Efficiency | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% | 22.70% |
| Max Power Voltage | 18.6V | 24.4V | 19.1V | 23.2V | 20.9V | 34.8V | 41.8V |
| Max Power Current | 3.23A | 4.10A | 6.29A | 6.47A | 8.62A | 6.33A | 6.46A |
| Open Circuit Voltage | 21.3V | 28.0V | 22.0V | 26.7V | 24.0V | 40.0V | 48.0V |
| Short Circuit Current | 3.46A | 4.39A | 6.70A | 6.91A | 9.22A | 6.75A | 6.91A |
| Number of cells | 2*16 | 3*14 | 3*11 | 4*10 | 4*18 | 4*15 | 4*18 |
| Solar cells | Mono cell | Mono cell | Mono cell | Mono cell | Mono cell | Mono cell | Mono cell |
| Cell Dimension | 182*45.5mm | 182*60.67mm | 182*91mm | 182*91mm | 182*60.67mm | 182*91mm | 182*91mm |
| Weight | ï¹£ | ï¹£ | ï¹£ | ï¹£ | ï¹£ | ï¹£ | ï¹£ |
| Module size | 845*395*4mm | 970*580*4mm | 1120*580*4mm | 1020*765*4mm | 1220*765*4mm | 1500*780*4mm | 1790*780*4mm |
| The maximum system voltage | 200V DC(IEC) |
||||||
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 |
| Back sheet | PET | ||||||
| Output power tolerance | ±3% | ||||||
| Operating Temperature | -20~75℃ |
||||||
| Color | White & Black |
||||||
| Warranty | 1 Year | ||||||
| Customize Service | SUNGOLD offer customize service,please refer to our website or ask SUNGOLD workers for more sizes and the latest parameters. |
||||||

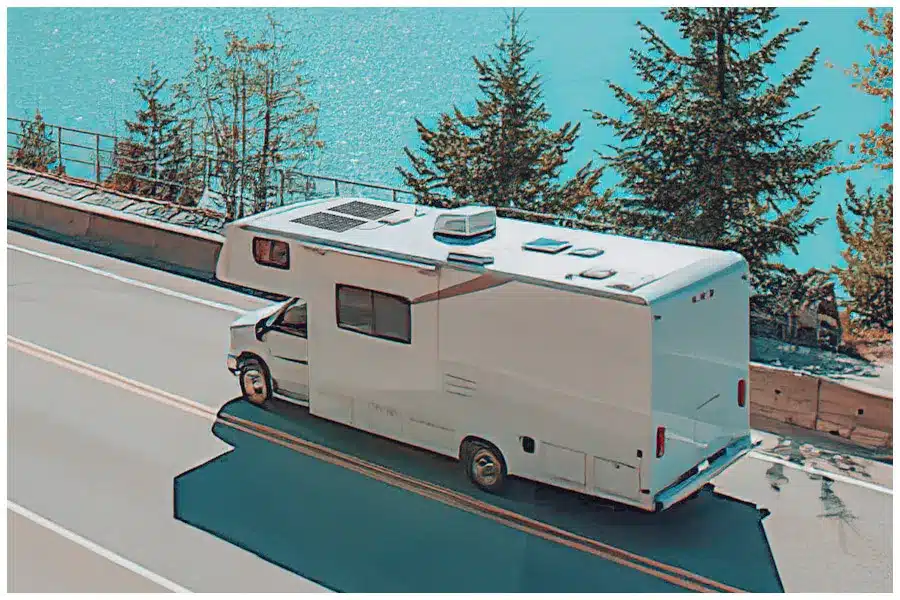

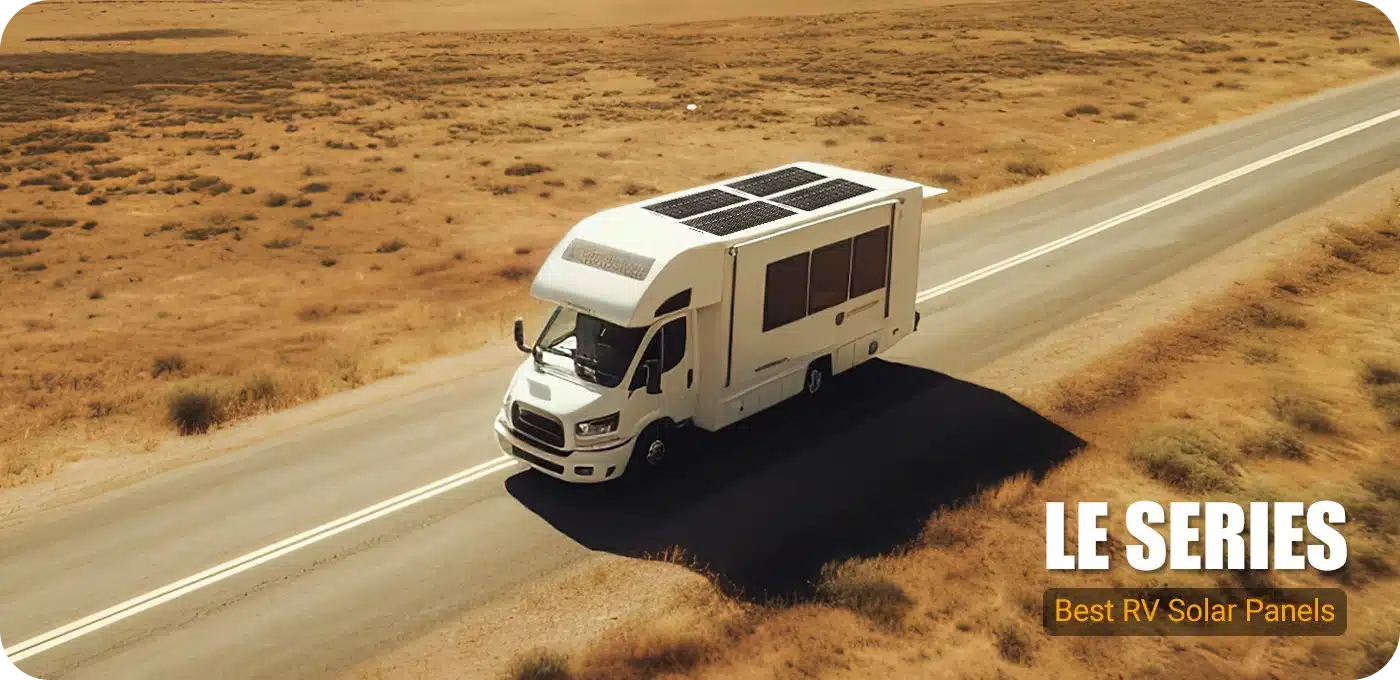

Best RV solar panels - LE Series
In recent years, more and more people are living and working on the road, whether it’s in a large motorhome, travel trailer, or campervan.
To maximize the freedom of this lifestyle, having a reliable source of electricity is essential, and there’s no better source than the giant fireball that rises from the east every morning.
Adding the best RV solar panels to your home office on wheels has become significantly easier and cheaper, but there are still a lot of choices, questions, and considerations that aren’t always so simple.

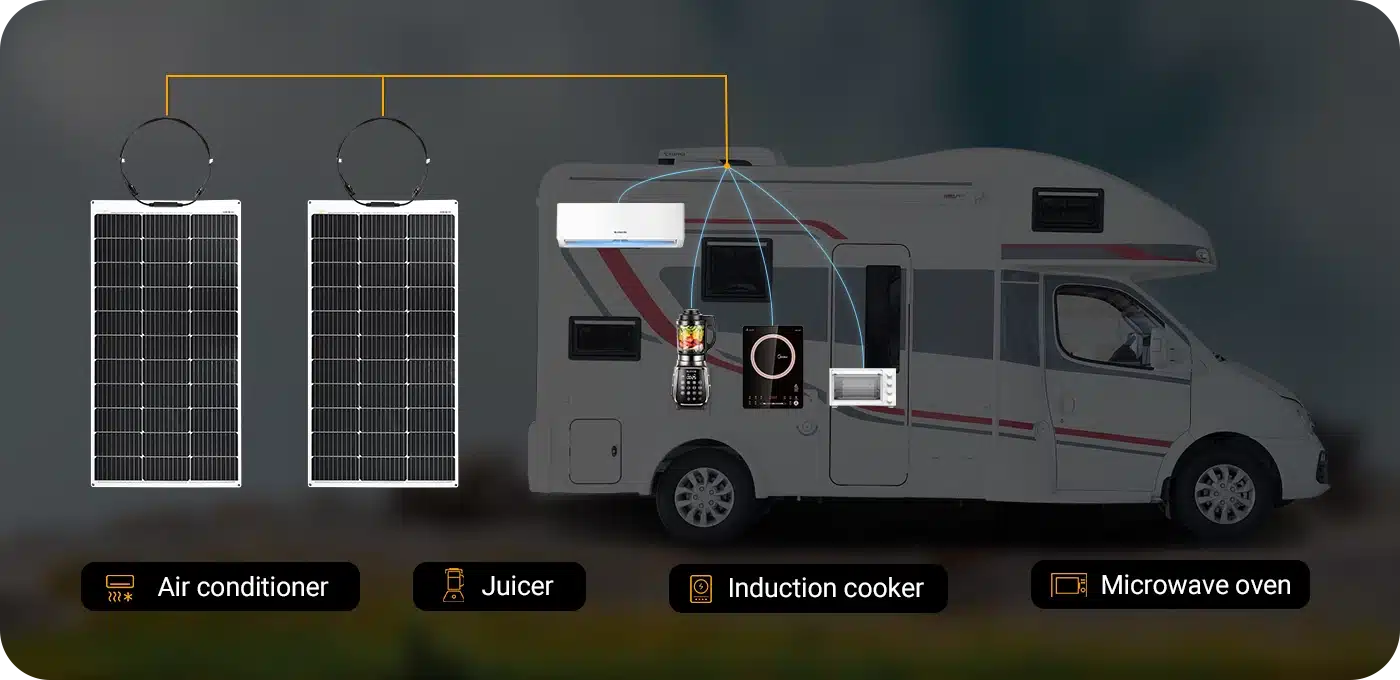

What are the best RV solar panels?
Best RV solar panels work similarly to residential and commercial solar panels, except they are smaller and easier to transport. Once installed on an RV, motorhome, or camper, the best RV solar panels collect sunlight and convert it into usable electricity for your vehicle. In turn, you can use this electricity to power appliances, lights, and outlets in your RV.
There are many reasons to add the best RV solar panels to your RV, travel trailer, or camper. The most obvious is that traveling around usually means spending the night in places that don’t have easy access to the grid. These days, the most adventurous among us manage to live and work full-time on the road, making solar power almost a necessity.
Can I use residential solar panels on my RV?
It is possible to install conventional rectangular roof solar panels on an RV, trailer, or van. Some people have already done this. However, this is not the most aerodynamic arrangement.
Use flexible, lightweight panels. The best RV solar panels will fit the contours of the vehicle’s roof and will also reduce the weight of the top of the trailer. There are many products available for use with RVs.
Best RV solar panel maintenance
Best RV solar panels require very little maintenance to worry about. If you are traveling in dusty or windy conditions, you may need to wipe down or clean the panels to ensure they are working at peak efficiency.
Traveling may also increase wear and tear on the panel connectors. Standard solar panel connections are very weatherproof, but it’s worth checking your system regularly for signs of damage, loose connections, or rust.
It is not recommended to repair these parts yourself without the guidance of an experienced electrician. Remember that panels can produce energy as long as the sun is up, even on cloudy days, so always treat all connections as live circuits.
Are the Best RV solar panels right for you?
The benefits of solar energy are indisputable, but RV solar panels may not be for everyone. If you live in an RV and often take it off the grid (without a campground connection), solar energy can be a convenient and environmentally friendly alternative to a gas generator.
Best RV solar panels may be more expensive than standard rooftop residential panels, but they are still very inexpensive compared to what they used to be.
If you can afford it, there’s no reason why you can’t increase your freedom by adding a solar system to your rig, but if you don’t use your RV often, it’s probably not worth the investment.

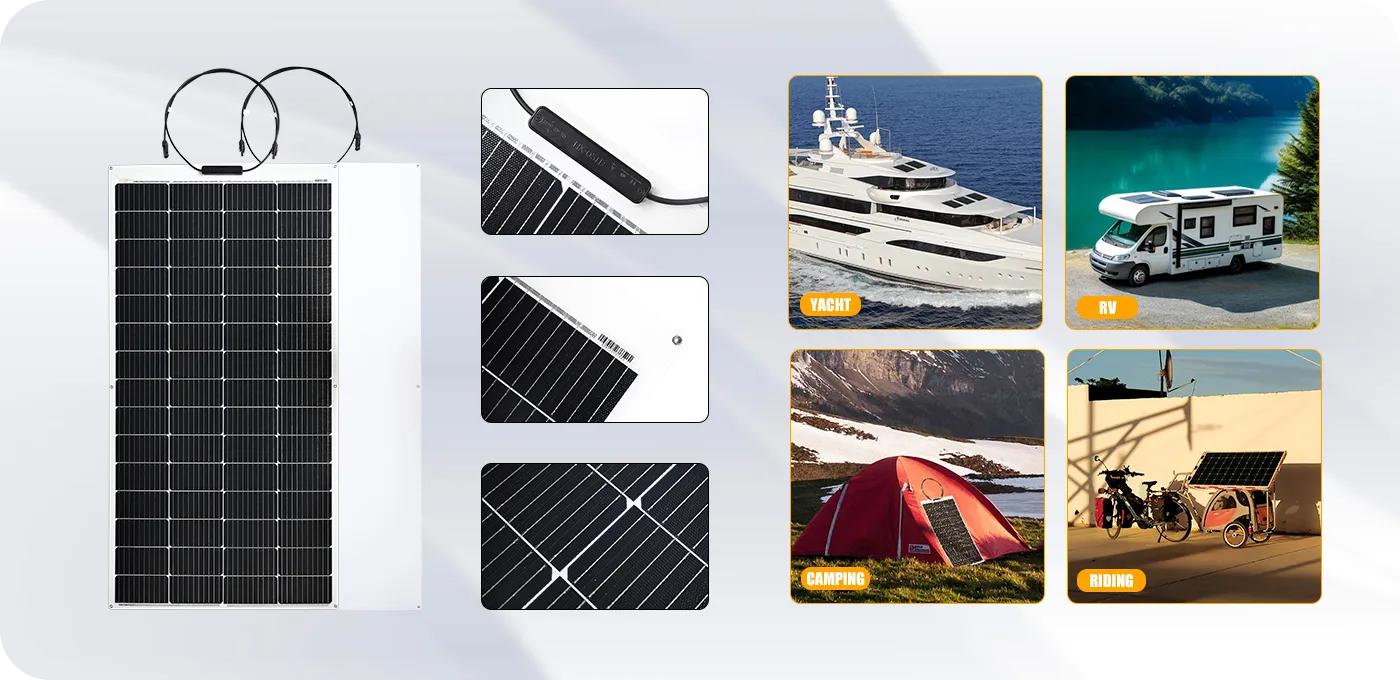

Sungold LE Series
PORTABLE: The LE Series flexible solar panels are lighter than traditional solar panels with metal grommet mounting holes for easy installation, transportation, hanging, and removal.
BENDABLE: Solar panels are perfect for installation on any off-grid living space with curved surfaces, such as rooftops, campers, trailers, boats, cabins, sheds, tents, and yachts.
HIGH QUALITY MATERIAL: Made of ETFE material for better light transmission and durability.
HIGHLY DURABLE: The flexible solar panel can withstand high wind pressure, snow load, and extreme temperatures, and the element contains bypass diodes with input overcurrent protection and reverse protection design.
