SGD SERIES

SGD series shingled solar panel use shingled technology and are another innovation of mature products.

Shingled cell technology

Conversion efficiency up to 22%

High light transmittance

IP67 waterproof grade

Durable and long-lasting

Make use of every inch of sunlight.

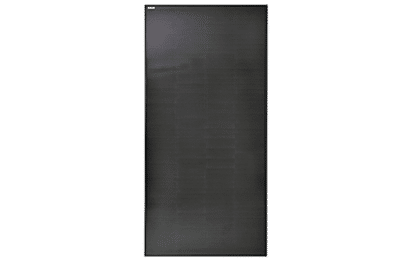

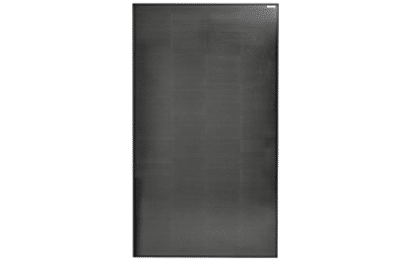

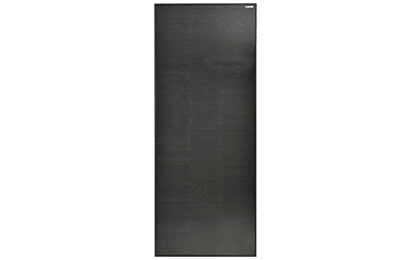

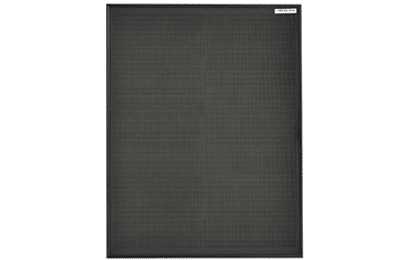

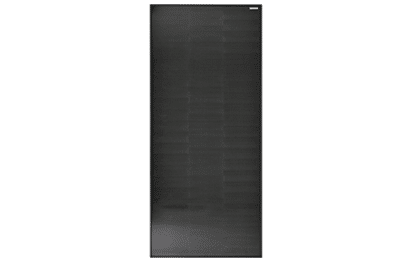

RIGID SOLAR PANEL SGD SERIES

The Sungold SGD series shingled solar panel features a sturdy aluminum frame and sleek black cells. The panels stand out in the market with their unique cell design and durable construction.

Sungold SGD series solar panel adopts Shingled technology, and the product conversion efficiency is up to 22%. It is suitable for various grid-connected and off-grid solar systems.

PERC Shingled Solar Panel SGD Series

Sungold SGD series shingled solar panel can be widely used in many scenarios. The excellent cost performance makes the product stand out among many similar products.

Understand The Technology

The performance of the SGD series rigid solar panel was tested under the standard test

Certifications

SGD SERIES TESTING

SGD series has been tested for IEC 61730, including the product flammability test, the fire test, the visual inspection, etc. SGD series solar panels were tested for wiring cables, connectors, junction boxes, solar backsheets, PV module interiors, bypass diodes, materials, and other parts. The performance of SGD series solar panels is excellent.

Video

introduction

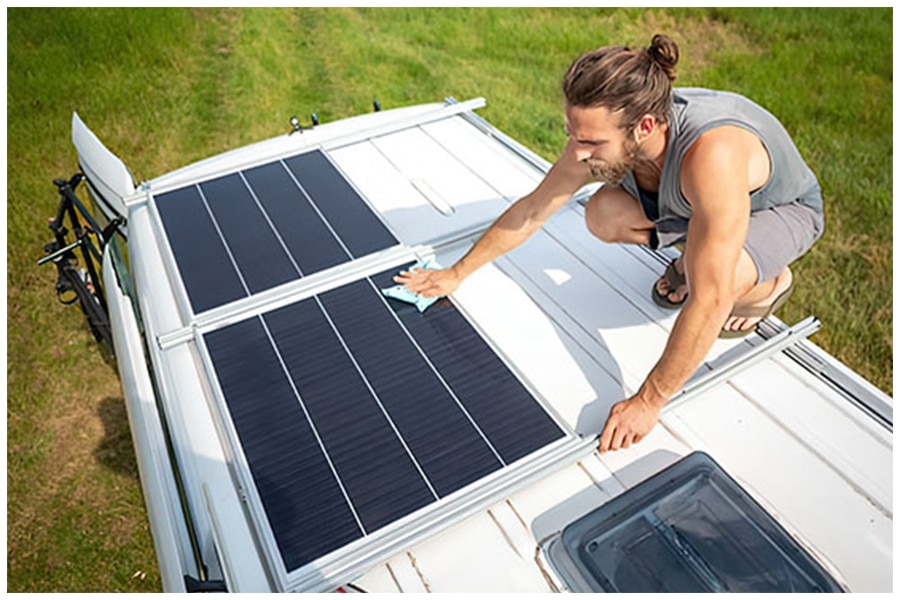

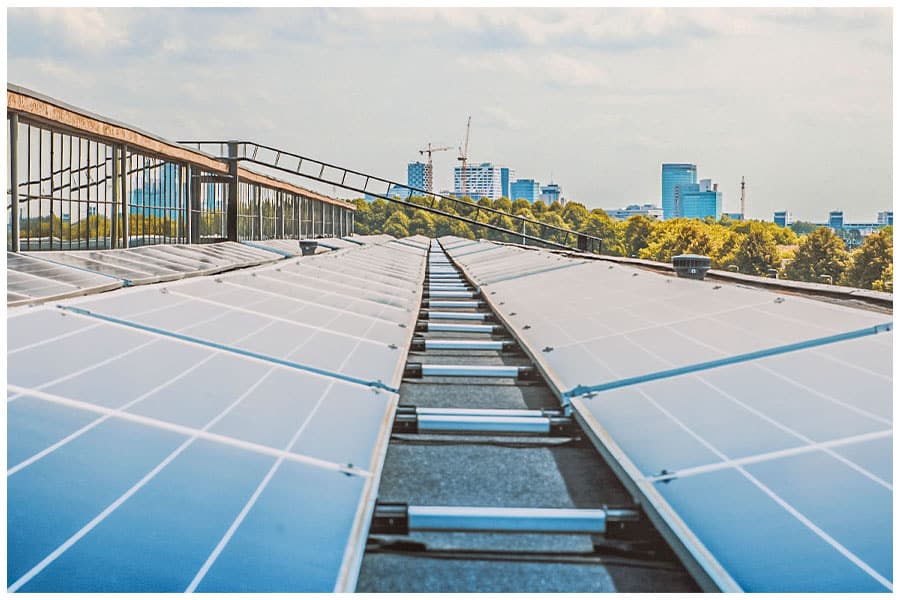

Sungold SGD series rigid solar panels feature high power output and a wide range of sizes to choose from (10W-290W). Can be used for many different applications, even work sheds, garages, or campsites, ideal for residential and commercial rooftop systems, is compatible with ground mounting, and is compatible with grid-tied and off-grid inverters.

High Efficiency Output - Best Shingled Solar Panel - SGD Series

Shingled cell technology for shingled solar panels, which uses overlapping thin cell strips assembled either horizontally or vertically across the panel, provides a high level of efficiency and productivity.

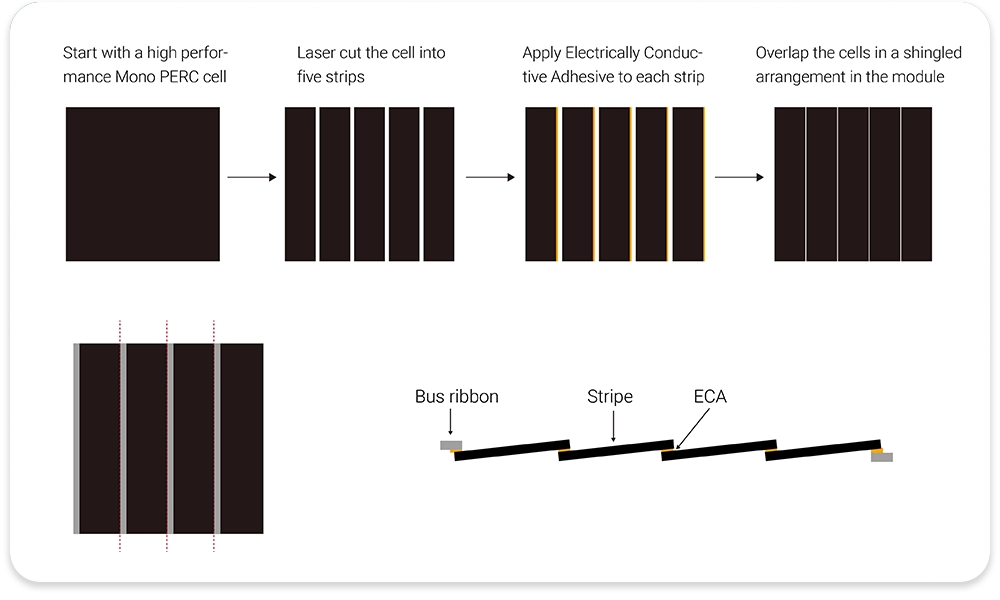

Shingled cells are made by laser cutting ordinary full-size, high-quality monocrystalline PERC cells into strips (typically 5 or 6). Depending on the panel size, the narrow strips are assembled into long strings of 34 to 40 cells. They are connected using an electrically conductive adhesive (ECA) for electrical conductivity and flexibility.

Shingled solar panels offer more yield per square meter. shingled solar panels are also less susceptible to hot spots and are cost-effective.

How do shingled solar panels compare to conventional panels?

Shingled solar panel vs. solar panels

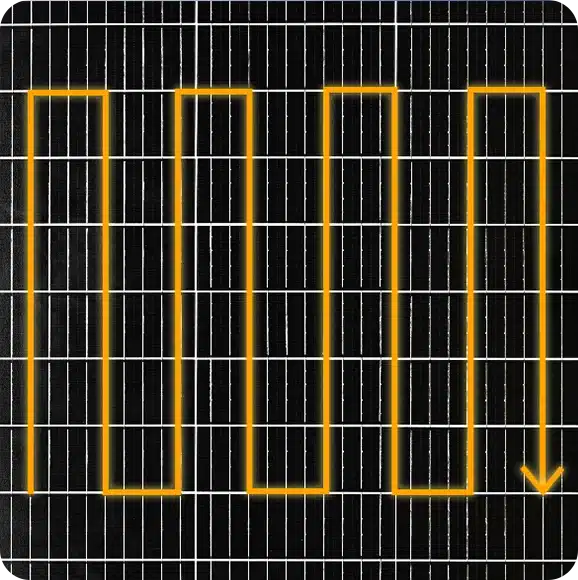

Solar Panels

Traditional solar panels use different numbers of solar cells depending on the desired output of the panel. The solar cells are distributed throughout the panel with space between the cells. They are electrically connected by a high-temperature welding process using copper bus bars.

The more copper busbars used, the lower the resistance losses and therefore the more efficient the electrical connection. However, more busbars covering the cells means fewer solar cells are exposed to sunlight, which reduces the output of the cells.

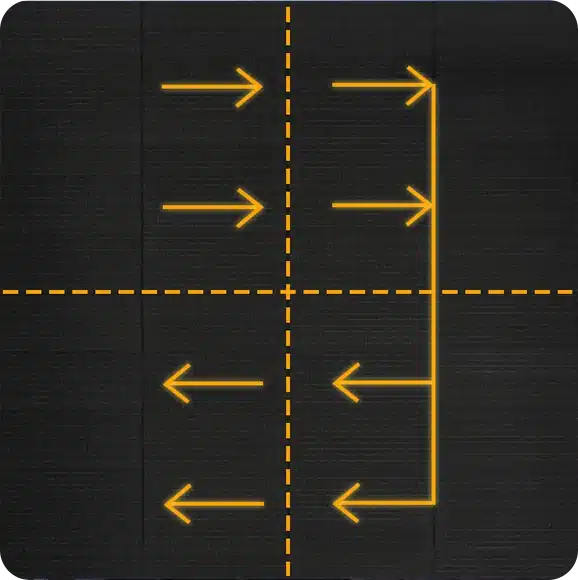

Shingled Solar Panel

Since the shingled cells of a shingled solar panel are connected differently than conventional solar panels, busbars are not required and the cells can be connected so that there is no gap between the cells.

The wiring of shingled solar panels can also be different from conventional solar panels. Typically, the solar cells in a conventional solar panel are wired in a series of strings, whereas the solar cells in shingled solar panels can be wired in a parallel configuration.

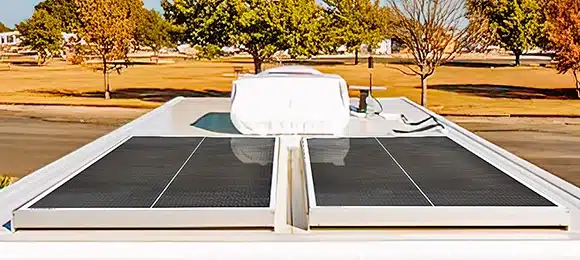

Advantages of shingled solar panel

Essentially, the three key benefits of shingled solar panel design are generating more power, improving reliability, and aesthetics.

1- Higher power per square meter – shingled solar panels do not require a bus bar across the top of the cell, so more of the solar cell is exposed to the sun, and therefore the solar panel area can produce more energy.

2- Increased Shade Resistance – Conventional solar panels have individual cells connected in series, so when a portion of the solar panel is shaded, this can have a significant impact on the power output level. shingled solar panels significantly reduce the losses caused by shading.

3 – Better Mechanical Properties – Static and dynamic load tests have shown that shingled solar panels are more resistant to failures due to external forces applied to the solar panel than conventional solar panels. In addition, the conductive adhesive used on shingled cells helps to minimize internal stresses due to thermal expansion.

4 – Unique Visual Appearance – Shingled solar panels have no visible circuitry, which gives them a clean and simple appearance that provides superior curb appeal.

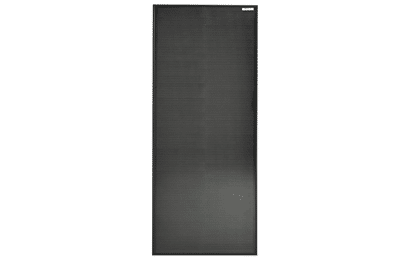

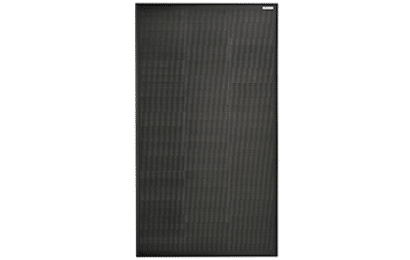

Product Specifications

	SGD-M2-50W	SGD-M2-100W	SGD-M2-150W	SGD-M2-200W	SGD-M2-220W	SGD-M2-250W	SGD-M2-295W	SGD-M3-20W	SGD-M3-50W	SGD-M3-100W	SGD-M3-150W	SGD-M3-200W	SGD-M3-255W	SGD-M3-340W	SGD-M3-485W
MODEL
Cell Efficiency	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％	＞22％
Max Power Voltage	22.8V	22.8V	22.8V	22.8V	27.4V	22.8V	27.4V	20.9V	25.5V	17.4V	19.1V	25.5V	26.1V	34.8V
Max Power Current	2.2A	4.39A	6.58A	8.78A	8.03A	10.97A	10.77A	0.96A	1.97A	5.75A	7.86A	7.85A	9.78A	9.78A
Open Circuit Voltage	26.9V	26.9V	26.9V	26.9V	32.3V	26.9V	32.3V	24.7V	30.1V	20.5V	22.5V	30.1V	30.8V	41.1V
Short Circuit Current	2.32A	4.65A	6.97A	9.30A	8.51A	11.62A	11.41A	1.01A	2.08A	6.09A	8.32A	8.31A	10.36A	10.36A
Cell type	2*20	2*40	3*40	4*40	3*48	5*40	5*48	3*12	2*22	3*30	4*33	4*44	5*45	10*30
Solar cells	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210	shingle cell 210
Cell Dimension	210*30mm	210*30mm	210*30mm	210*30mm	210*35mm	210*30mm	210*30mm	83*33.2mm	16633.2mm 222	16633.2mm 330	16633.2mm 433	16633.2mm 445	16633.2mm 545	16633.2mm 1030
Weight	3.13kg	6.06kg	8.83kg	11.59kg	12.11kg	14.49kg	17.24kg	1.31kg	2.88kg	6.10kg	8.30kg	10.30kg	13.20kg	17.8kg
Module dimension	62546025mm	121046030mm	121067035mm	121088035mm	165067035mm	1210110035mm	1440110035mm	43028025mm	75036025mm	100554030mm	110071035mm	145071035mm	148587035mm	1710100540mm
Frame	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy	Anodized aluminium alloy
The maximum system voltage	600V DC(IEC)	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC	600V DC	600V DC	600V DC	600V DC	600V DC	600V DC	600V DC
Connectors	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4	MC4
Back sheet	PET	PET	PET	PET	PET	PET	PET	PET	FPE	FPE	FPE	FPE	FPE	FPE
Output power tolerance	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Operating Temperature	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃	-40~85℃
Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Warranty	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years	10 years
Customize Service
