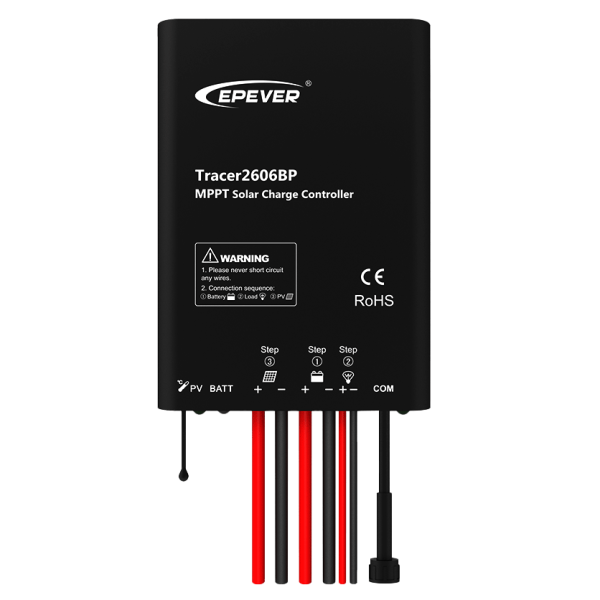

MPPT Charge Controller

Product Overview:

Based on MPPT Charge Controller algorithm design, support battery and lithium battery type, with RS485 communication interface, can view and modify the working status of the controller. External dedicated IOT module, with Cloud server monitoring software, can achieve remote centralized monitoring of multiple machines. Widely used in the IOT, wild monitoring, solar lighting and other fields.

make the most of every

Features

MPPT charging mode

Support lead-acid and lithium batteries

Lithium battery self-activation

Multiple load control modes

Perfect electronic protection

RS485 communication mode, IOT monitoring available

IP68 protection grade

Specifications

Model	Tracer2606BPL	Tracer3906BPL	Tracer5206BPL	Tracer2610BPL	Tracer3910BPL	Tracer5210BPL
System nominal voltage	12/24VDC Auto(Lithium battery do not automatic identification system voltage)		12/24VDC Auto(Lithium battery do not automatic identification system voltage)		12/24VDC Auto(Lithium battery do not automatic identification system voltage)
Battery input voltage range	9～32VDC	9～32VDC	9～32VDC	9～32VDC	9～32VDC	9～32VDC
Rated Charge Current *	10A	15A	20A	10A	15A	20A
Rated charge power	130W/12V	200W/12V	260W/12V	130W/12V	200W/12V	260W/12V
Rated charge power	260W/24V	400W/24V	520W/24V	260W/24V	400W/24V	520W/24V
Max. PV open circuit voltage	60V( at minimum operating environment temperature ）			100V( at minimum operating environment temperature ）
Max. PV open circuit voltage	46V( at 25℃ environment temperature )			92V( at 25℃ environment temperature )
MPP voltage range	(Battery voltage+2V)～36V			(Battery voltage+2V)～72V
Max. output current	3.3A	4.5A	6.6A	3.3A	4.5A	6.6A
Max. output power	100W	130W	200W	100W	130W	200W
Output voltage range	( Max. battery voltage+2V)～58V
Load open circuit voltage	58V	58V	58V	58V	58V	58V
Load over voltage protection	63V	63V	63V	63V	63V	63V
Maximum output efficiency	96.00%	96.00%	96.00%	96.00%	96.00%	96.00%
Output current control accuracy	≤2%	≤2%	≤2%	≤2%	≤2%	≤2%
Battery Type	Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User		Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User		Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User
Lead-acid : Equalize Charging Voltage	Sealed :14.6V/Gel：No / Flooded:14.8V/User:9-17V (×2/24V)		Sealed :14.6V/Gel：No / Flooded:14.8V/User:9-17V (×2/24V)		Sealed :14.6V/Gel：No / Flooded:14.8V/User:9-17V (×2/24V)
Lead-acid : Boost Charging Voltage	Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (×2/24V)		Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (×2/24V)		Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (×2/24V)
Lead-acid : Float Charging Voltage	Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V)
Lead-acid : Low Voltage Reconnect Voltage	Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V)
Lead-acid : Low Voltage Disconnect Voltage	Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V)		Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V)
Lithium: Boost Charging Voltage	LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V)		LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V)		LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V)
Lithium: Low Voltage Reconnect Voltage	LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V)		LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V)		LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V)
Lithium: Low Voltage Disconnect Voltage	LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V)		LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V)		LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V)
Self-consumption	≤15mA/12V;≤22mA/24V		≤15mA/12V;≤22mA/24V		≤15mA/12V;≤22mA/24V
Temperature compensation coefficient	-3mV/℃/2V(Lithium battery don’t have temperature compensation coefficient)		-3mV/℃/2V(Lithium battery don’t have temperature compensation coefficient)		-3mV/℃/2V(Lithium battery don’t have temperature compensation coefficient)
Communication	RS485（RJ45）	RS485（RJ45）	RS485（RJ45）	RS485（RJ45）	RS485（RJ45）	RS485（RJ45）
Working environment temperature	-40℃～+60℃	-40℃～+60℃	-40℃～+60℃	-40℃～+60℃	-40℃～+60℃	-40℃～+60℃
Enclosure	IP67	IP67	IP67	IP67	IP67	IP67
Overall dimension mm	124×89×30	0 150×93.5×32.7	153×105×52.1	124×89×30	150×93.5×32.7	153×105×52.1
Mounting hole size	Φ3.5mm	Φ3.5mm	Φ3.5mm	Φ3.5mm	Φ3.5mm	Φ3.5mm
Mounting dimension	88×76mm	120×83mm	120×94mm	88×76mm	120×83mm	120×94mm
Net weight	0.54kg	0.73kg	1.18kg	0.54kg	0.73kg	1.18kg
