LE-M2-120W

Sungold solar panels 120 watt LE-M2-120W

The LE series high efficient solar panels have so durable ETFE surface and is made of monocrystalline 182 (10 grid busbar) solar cells. It is one of the innovative products of lightweight solar panel using monocrystalline cells. The LE series 120-watt monocrystalline solar panel is easy to install and can provide electricity for RVs, sea ships, tents, etc. No brackets, energy saving, and environmental protection. If you want to get a strong motivation without sacrificing the fuel economy, this will be a good choice.

make the most of every SUNLIGHT
Features
Glass fiber backpanel and surface ETFE coating
High-quality 10 bus solar cell
Easy To Use
Lightweight and thin

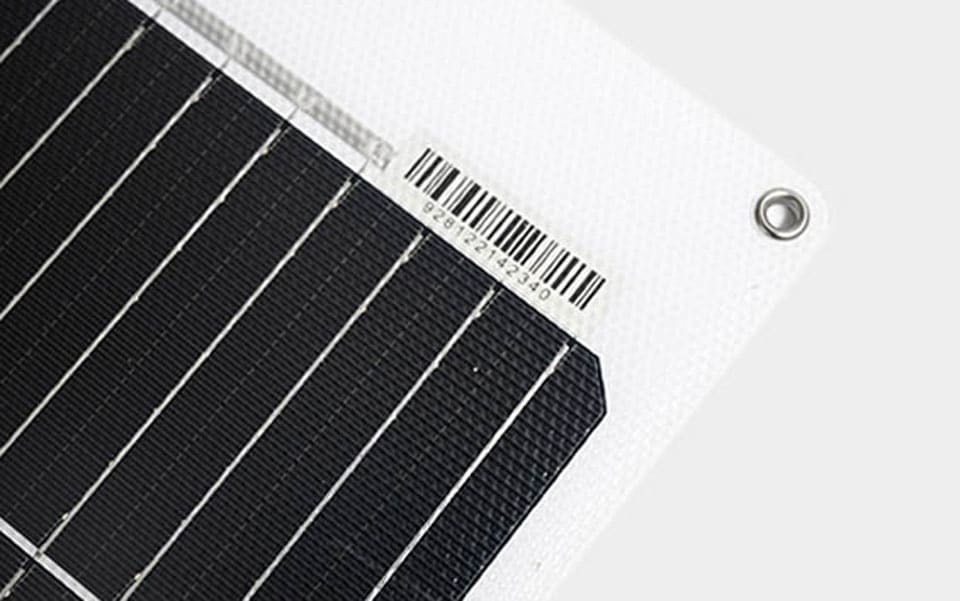

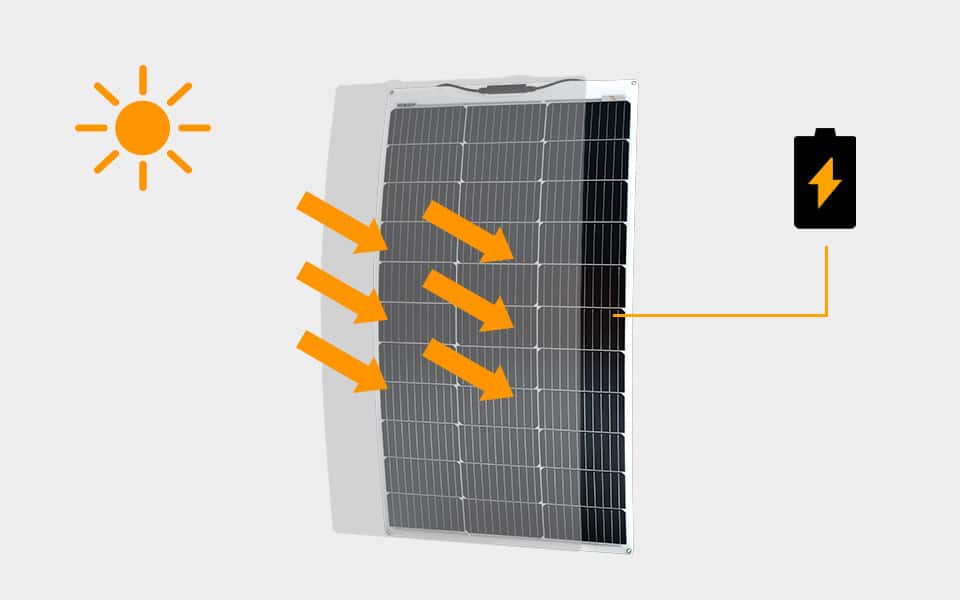

Glass fiber backpanel and surface ETFE coating

The surface of this 120-watt solar panel is made of strong ETFE material, which has a longer lifespan compared to standard semi-flexible solar panels. So these special lightweight solar panels are very wear-resistant and less prone to cracking, delamination and corrosion. The panel’s slightly textured coating creates an anti-reflective surface that allows the panel to absorb more light, increasing efficiency. The ETFE material improves the weather resistance of the solar pv modules as a whole.

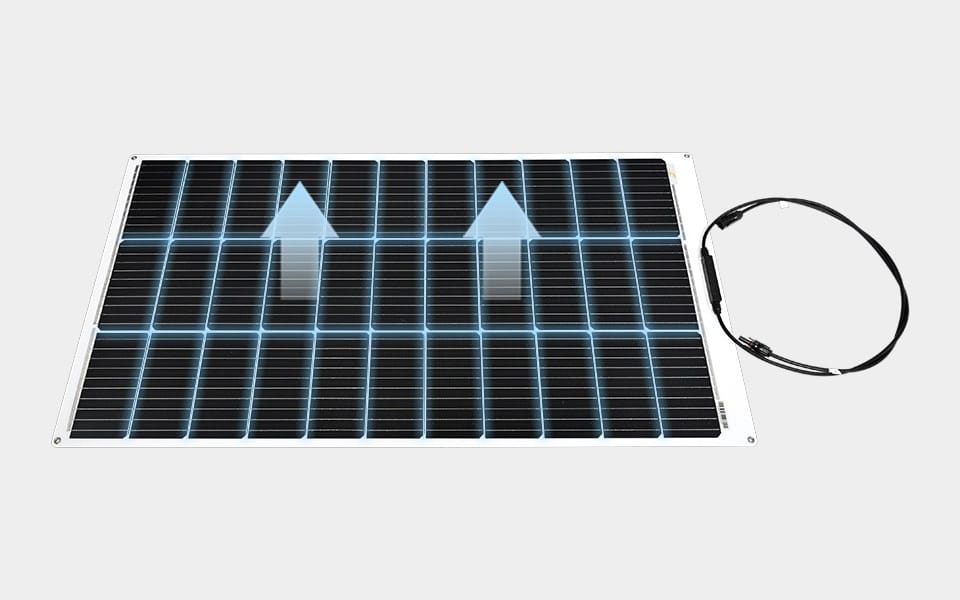

High-quality 10 bus solar cell

The 120-watt monocrystalline solar panel also uses an innovative 10-bus solar cell, which is more efficient than the 3, 4, or 5-bus solar cells used by most other solar panels, which is more than 0.3%-1.5%. This has led to smaller solar panels as a whole, which are very suitable for applications with limited space. These solar cells are also the best choice for application in a warm climate, because they can work normally even at high environmental temperatures.

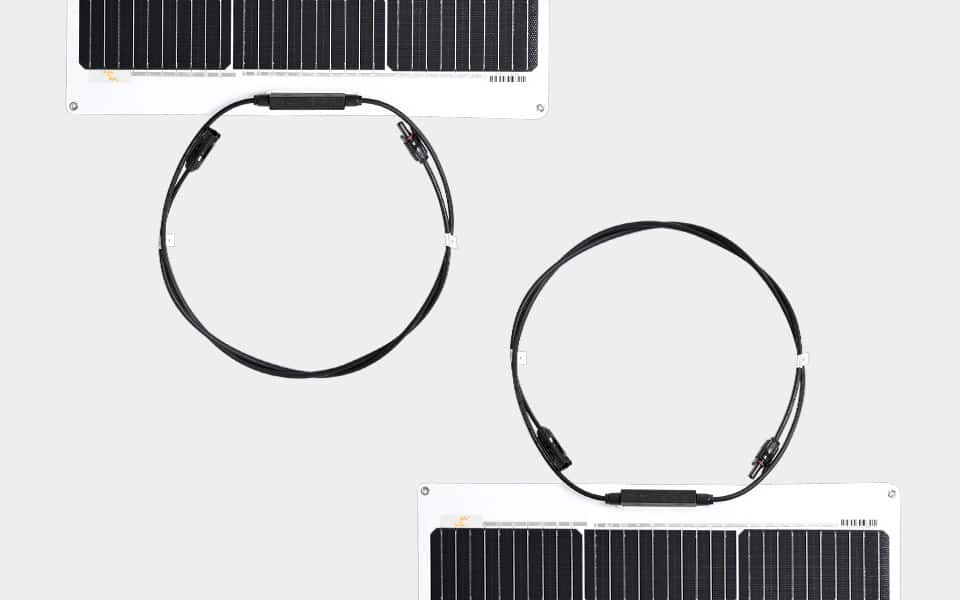

Easy To Use
The cable has a waterproof MC4 connector, which can be used to easily connect to your existing system and use it to connect multiple solar pv modules or connect 4mm2 to extend the cable. At the same time, it is also paired with a bypass diode to reduce the hot spot effect.
Lightweight and thin

Sungold LE series 120W solar panel product is a lightweight solar panel, and its thickness is only 4mm. The 120W semi flexible solar panel is powerful, waterproof, lightweight, and durable. It is easy to install. The biggest feature of 120W solar panel product is ultra-light, which is 50% lighter than glass solar panels of the same wattage.

Applications

RV

Home

Yacht

Frequently Asked Questions

The main reason is that the copper strips of the solar cells and the solar cells are disconnected in many places, resulting in no voltage and current data.

The diode of the junction box will burn out due to excessive external reverse current. We generally standardize the protective measures of the product during use in the product manual.

1 years warranty. LE series flexible solar panels have service life of 10 years.

Yes. Sungold uses the glue-filled junction box to install the product. So it has excellent waterproof performance and can resist the impact of the external environment.



LE series solar panels can provide power for RVs, vans, caravans, yachts, boats, tents, etc. Installation is very simple. With only the backing glue, you can attach the flexible solar panel to the surface.

Specifications

Maximum power(Pmax)

120W

Open-circuit voltage(Voc)

22.3V

Voltage at Pmax(Vmp)

19.1V

Short-circuit current(Isc)

6.60A

Current at Pmax(Imp)

6.29A

Cells efficiency(%)

22.70%

The maximum system voltage

200V DC(IEC)

Power temperature coefficient

-0.42%/℃

Voltage temperature coefficient

-0.32%/℃

Current temperature coefficient

+0.04%/℃

Output power tolerance

±3%

Operating temperature

-20~75℃

Weight

--

Size

1120*580*4mm

Warranty

1 year
