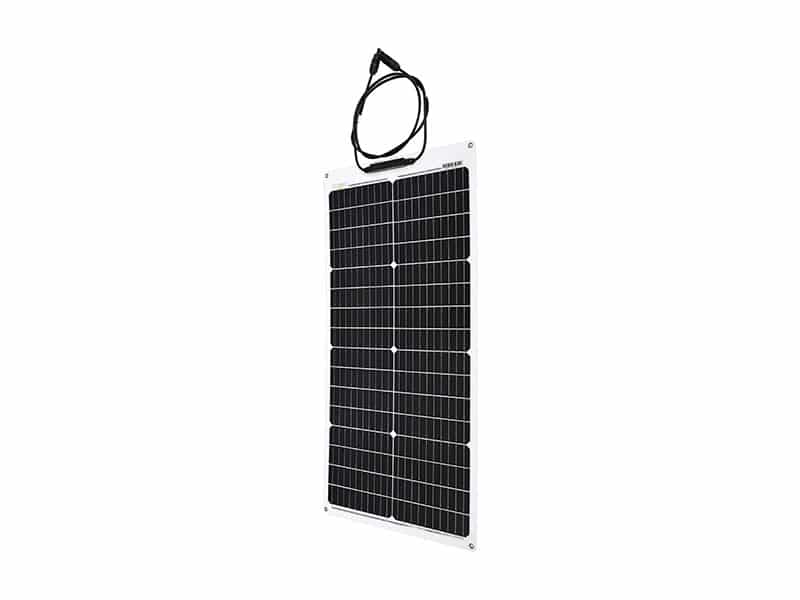

Sungold marine solar panel LE-M2-60W
This LE series flexible solar panels 60W has the ETFE surface and is made of monocrystalline 182 (10 grid busbar) solar cells. The efficient 60W solar panel provides free power for charging 12V solar systems, powering various applications such as RVs, caravans, campers, and boats, or for solar lighting systems, off-grid and backup solar power systems. The 60w solar panel can also provide direct power for applications that are not sensitive to input voltage/current variations (such as motors or pumps) and various grid-tied applications.

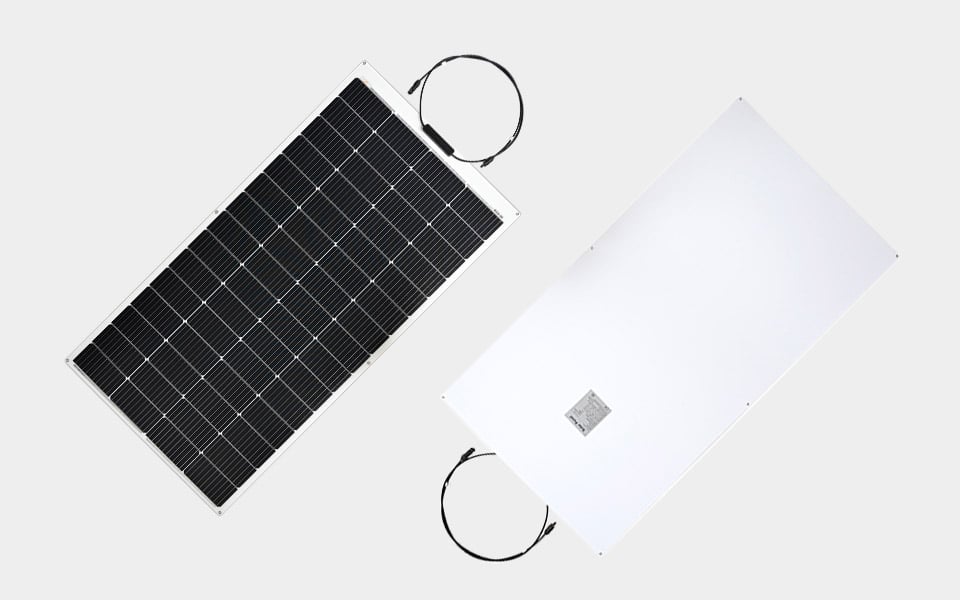

The surface of these solar panels is made of strong ETFE material, which has a longer lifespan compared to standard semi-flexible solar panels. So these special lightweight solar panels are very wear-resistant and less prone to cracking, delamination and corrosion. The panel’s slightly textured coating creates an anti-reflective surface that allows the panel to absorb more light, increasing efficiency.
PET backing material, soft with rigidity. Better resistance to thermal deformation and high impact resistance, good heat dissipation, waterproof, high temperature resistant, easy to clean.
RV
Home
Yacht
The main reason is that the copper strips of the solar cells and the solar cells are disconnected in many places, resulting in no voltage and current data.
The diode of the junction box will burn out due to excessive external reverse current. We generally standardize the protective measures of the product during use in the product manual.
1 years warranty. LE series flexible solar panels have service life of 10 years
Yes. Sungold uses the glue-filled junction box to install the product. So it has excellent waterproof performance and can resist the impact of the external environment.
LE series solar panels can provide power for RVs, vans, caravans, yachts, boats, tents, etc. Installation is very simple. With only the backing glue, you can attach the flexible solar panel to the surface.
Maximum power(Pmax)
60W
Open-circuit voltage(Voc)
21.8V
Voltage at Pmax(Vmp)
18.6V
Short-circuit current(Isc)
3.39A
Current at Pmax(Imp)
3.23A
Cells efficiency(%)
22.70%
The maximum system voltage
200V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
+0.04%/℃
Output power tolerance
±3%
Operating temperature
-20~75℃
Weight
--
Size
845*395*4mm
Warranty
1 year
