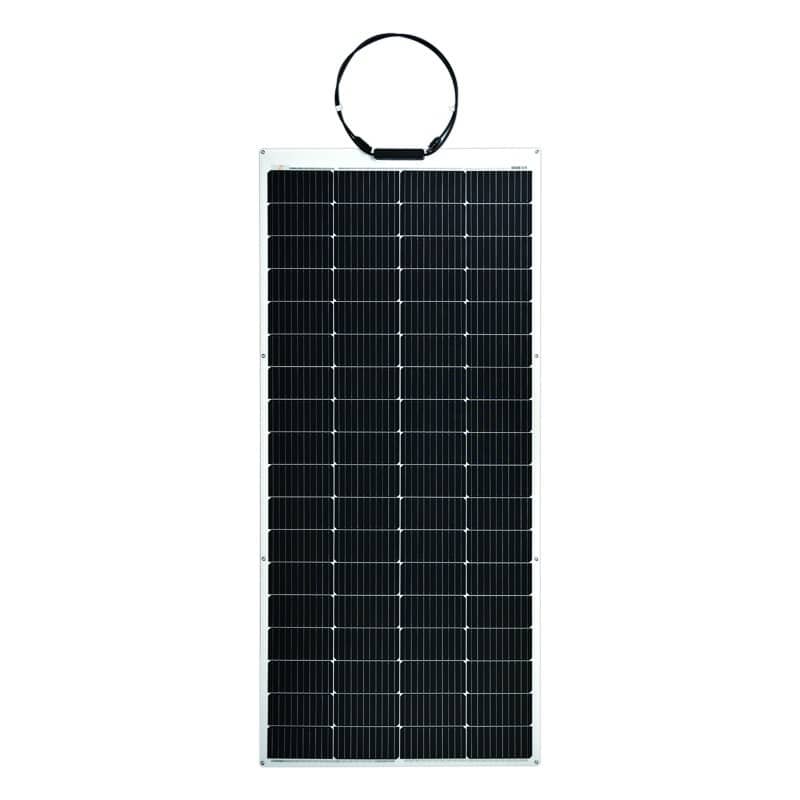

Sungold solar panels for boats LE-M2-270W

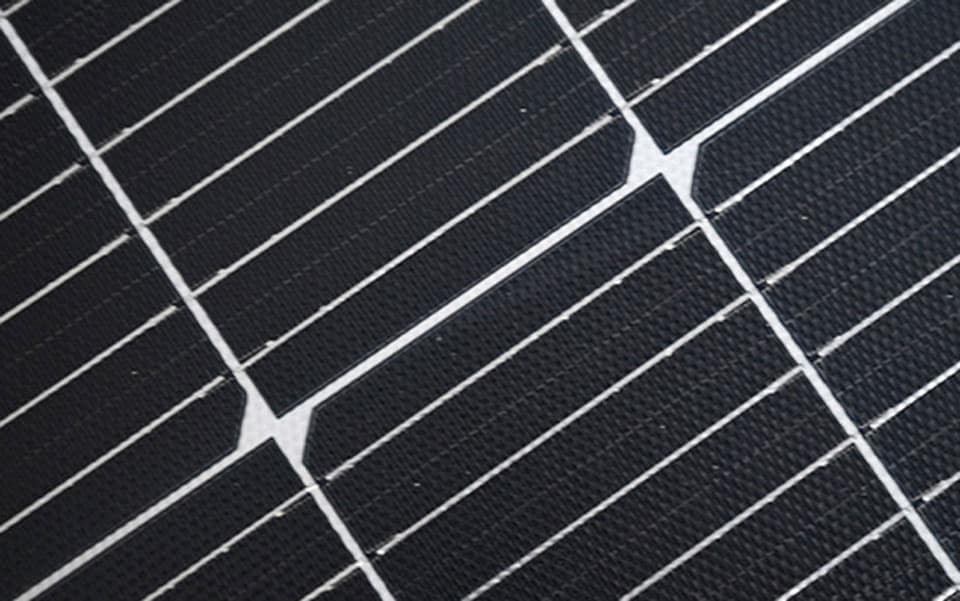

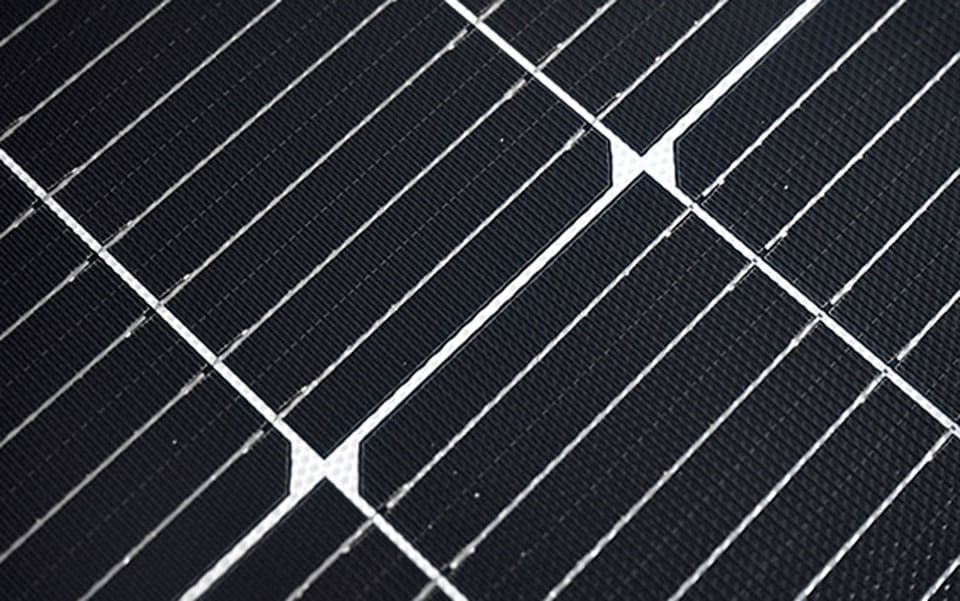

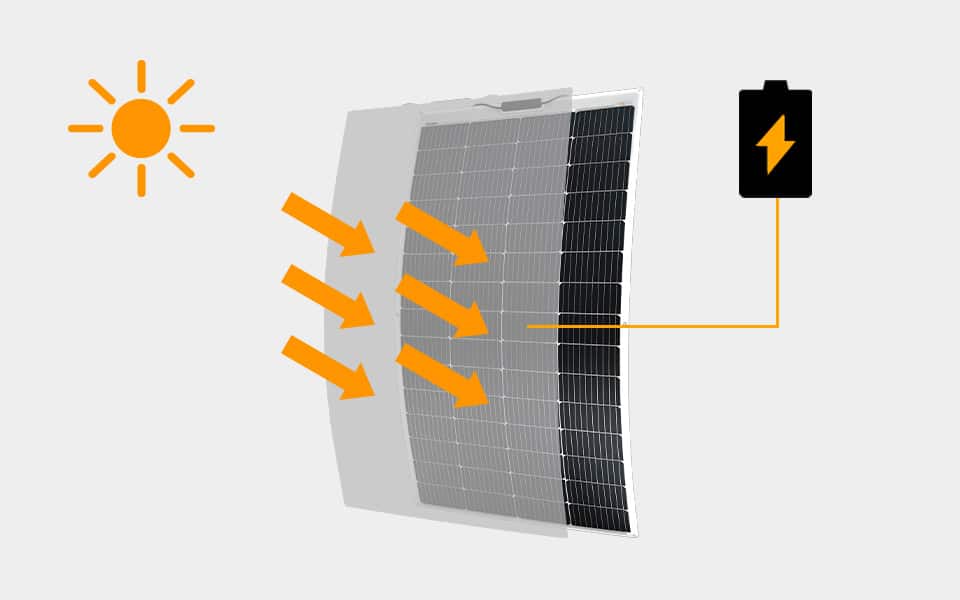

The solar photovoltaic panels also feature an innovative 10-busbar solar cell that is more efficient than the 3, 4, or 5-busbar solar cells used by most other solar panels and is able to extract more energy from the same surface area. This results in a smaller overall solar panel, ideal for applications where space is limited. These mono solar panels are also the best choice for applications in warm climates as they work well even in high ambient temperatures.
RV
Home
Yacht
The main reason is that the copper strips of the solar cells and the solar cells are disconnected in many places, resulting in no voltage and current data.
The diode of the junction box will burn out due to excessive external reverse current. We generally standardize the protective measures of the product during use in the product manual.
1 years warranty. LE series flexible solar panels have service life of 10 years.

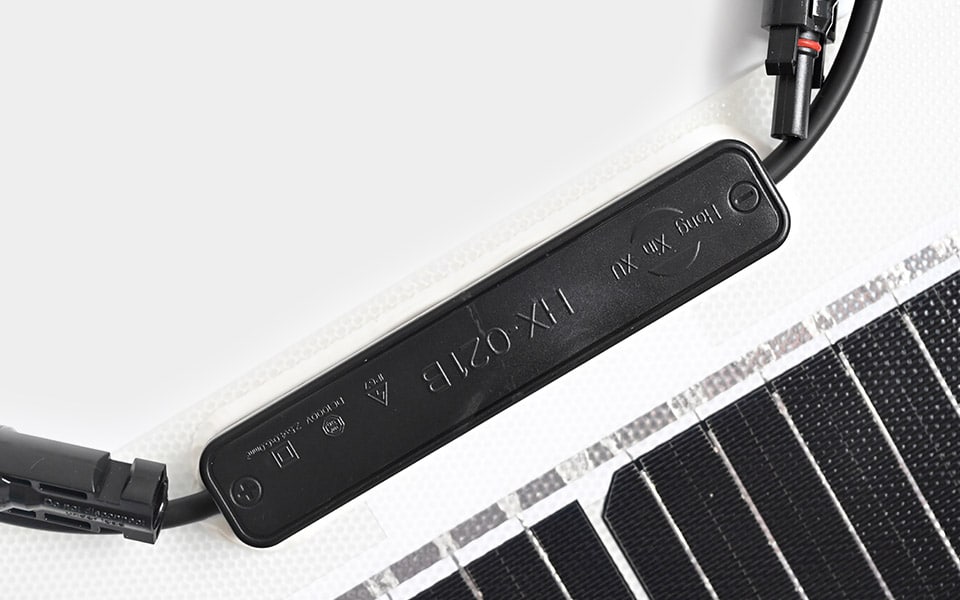

Yes. Sungold uses the glue-filled junction box to install the product. So it has excellent waterproof performance and can resist the impact of the external environment
LE series solar panels can provide power for RVs, vans, caravans, yachts, boats, tents, etc. Installation is very simple. With only the backing glue, you can attach the flexible solar panel to the surface.
Maximum power(Pmax)
270W
Open-circuit voltage(Voc)
48.9V
Voltage at Pmax(Vmp)
41.8V
Short-circuit current(Isc)
6.78A
Current at Pmax(Imp)
6.46A
Cells efficiency(%)
22.70%
The maximum system voltage
200V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
+0.04%/℃
Output power tolerance
±3%
Operating temperature
-20~75℃
Weight
--
Size
1790*780*4mm
Warranty
1 year
