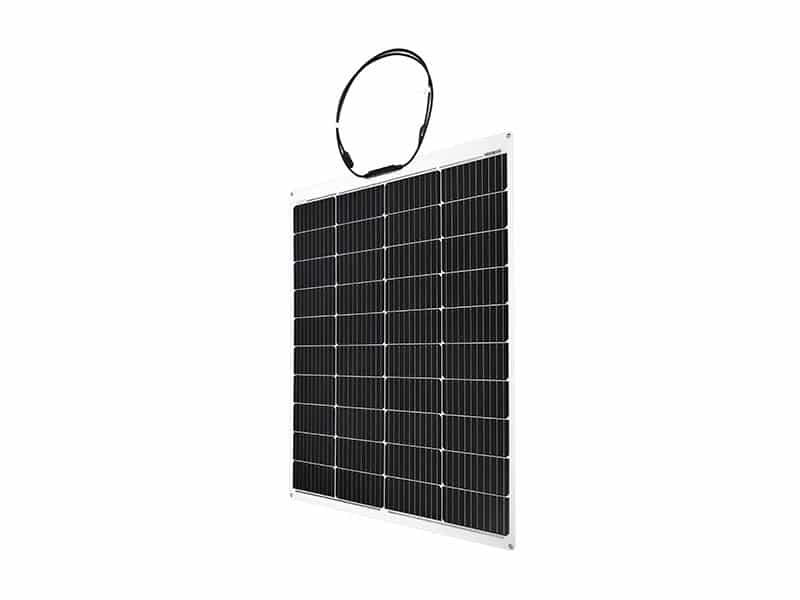

Sungold solar panel for boat LE-M2-150W
Using ETFE surface material, PET back material.
Waterproof and impact resistant, better resistance to thermal deformation and high impact resistance, higher light transmission, better absorption of sunlight, and longer service life.The ETFE material improves the weather resistance of the solar pv modules as a whole.
150W solar panel is a lightweight solar panel and its thickness is only 4mm. The semi flexible solar panel is powerful, waterproof, lightweight, and durable. The biggest feature of 150W solar panel product is ultra-light, which is 50% lighter than glass solar panels of the same wattage.
RV
Home
Yacht
The main reason is that the copper strips of the solar cells and the solar cells are disconnected in many places, resulting in no voltage and current data.
The diode of the junction box will burn out due to excessive external reverse current. We generally standardize the protective measures of the product during use in the product manual.
1 years warranty. LE series flexible solar panels have service life of 10 years
Yes. Sungold uses the glue-filled junction box to install the product. So it has excellent waterproof performance and can resist the impact of the external environment.
LE series solar panels can provide power for RVs, vans, caravans, yachts, boats, tents, etc. Installation is very simple. With only the backing glue, you can attach the flexible solar panel to the surface.
Maximum power(Pmax)
150W
Open-circuit voltage(Voc)
27.1V
Voltage at Pmax(Vmp)
23.2V
Short-circuit current(Isc)
6.79A
Current at Pmax(Imp)
6.47A
Cells efficiency(%)
22.70%
The maximum system voltage
200V DC(IEC)
Power temperature coefficient
-0.42%/℃
Voltage temperature coefficient
-0.32%/℃
Current temperature coefficient
+0.04%/℃
Output power tolerance
±3%
Operating temperature
-20~75℃
Weight
--
Size
1010*765*4mm
Warranty
1 year
