SG-TF-D-50W

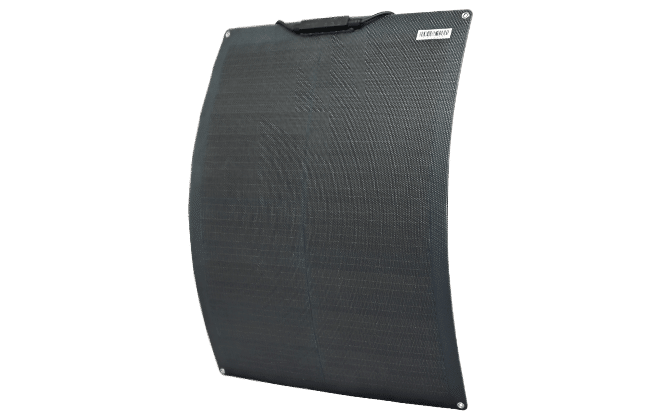

Sungold Shingled Cell K326 Solar Panel
SG-TF-D-50W

2*16 cells

Shingled 210 cells

50W

Output power

22.00%

Conversion efficiency

-40℃-+85℃

Operating ambient temperature

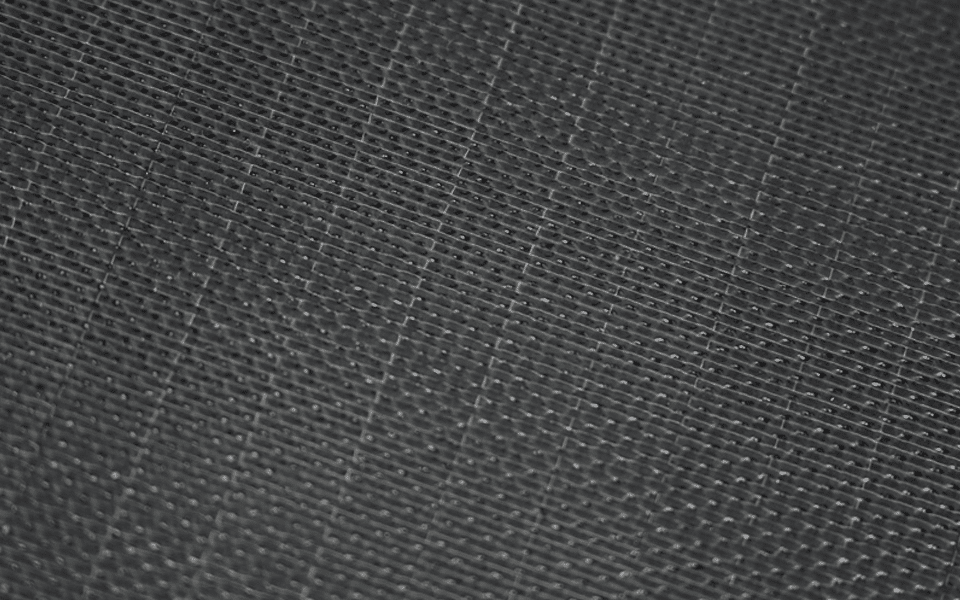

Higher Power

Maximum power of 50w, efficiency of 22%.

PERC shingled cell technology to increase the effective light receiving area, higher power

More flexible

Thickness is only 2mm, weight is 0.96kg

Adopt Sungold patented material, maximum bending arch height up to 45mm

More reliable performance

Ambient temperature range: -40℃-+85℃, stable output

5 years warranty, 20 years service life

Want to Quote

Product Specifications

Maximum power(Pmax)

50W

Cells efficiency(%)

22.00%

Output power tolerance

±3%

Backplane Color

Black

Current at Pmax(Imp)

10.59A

Module dimension

1690*890*2mm

Warranty

5 years

Open-circuit voltage(Voc)

21.5V

Operating temperature

-40℃-+85℃

Junction box

XC504

Voltage at Pmax(Vmp)

18.2V

Power temperature coefficient

-0.38%/℃

Current at Pmax(Imp)

2.75A

Packing

1 piece into 1 bubble bag and then into a carton (K434K paper), 10 small cartons into a large carton (K636K paper)

Waterproof junction box

IP67

Weight

0.96kg

Short-circuit current(Isc)

2.91A

Voltage temperature coefficient

-0.36%/℃

Solar cell

210 mono solar cells

Current temperature coefficient

+0.07%/℃
