SG-TF-D-100W

Sungold 100 watt solar panel TF-D-100W

Polymer composite material / 5 years warranty/strong impact resistance

The 100 watt solar panel features PERC tile cells with a high conversion efficiency of up to 22%, making it an ideal choice for RV living. With strong impact resistance, this panel can effectively protect the battery.

In addition, the SG-TF-D-100W panel is highly flexible, thanks to its ETFE surface material. This material provides excellent weather resistance, salt spray resistance, corrosion resistance, and aging resistance, making it durable and long-lasting.
make the most of every SUNLIGHT
Features
Exclusive Patented Material
Lighter And Thinner
Easy To Use
Shingled PERC technology

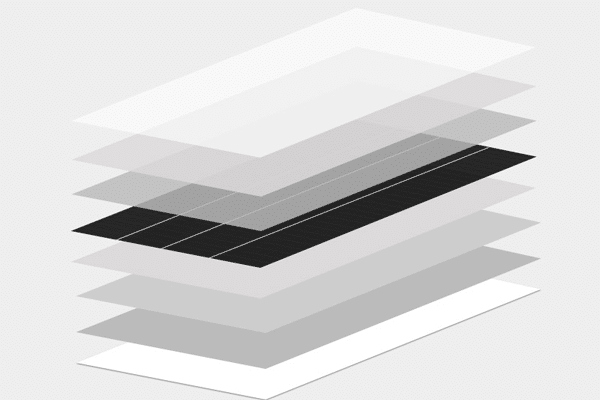

Exclusive Patented Material

The TF-D-100W flexible solar panel kit uses the exclusive patented material of Sungold. This material has great improvement in weather resistance, salt spray resistance, corrosion resistance and aging resistance. The absorption of impact force will be enhanced and the damage to the battery will be reduced.

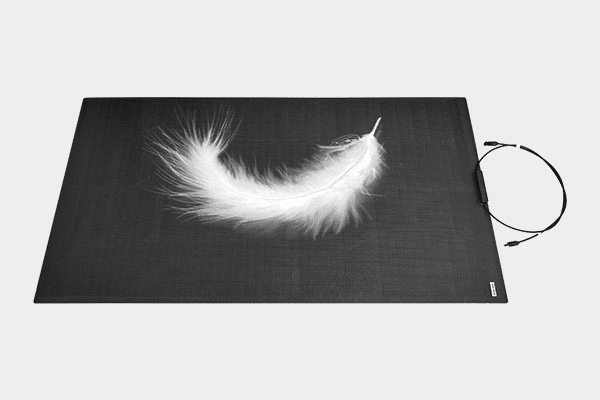

Lightweight and flexible

Thickness is only 2mm, weight is 1.65kg,Adopt Sungold patented material, maximum bending arch height up to 45mm,very flexible and suitable for various application scenariopanels can be used, for example, they can be hung on the wall for a long time.

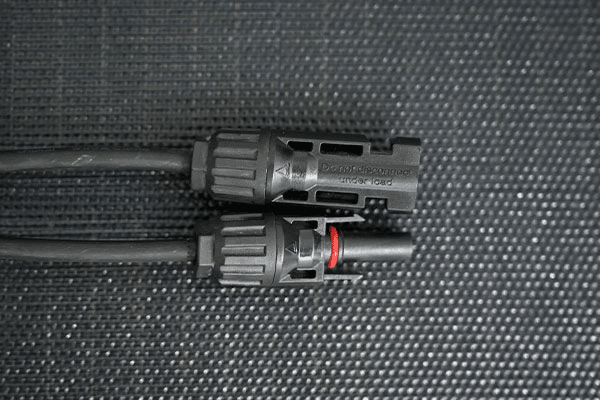

Easy To Use

TF-D-100W flexible solar module has excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With a Y-shaped connecting line, multiple panels can be easily connected in series and parallel.

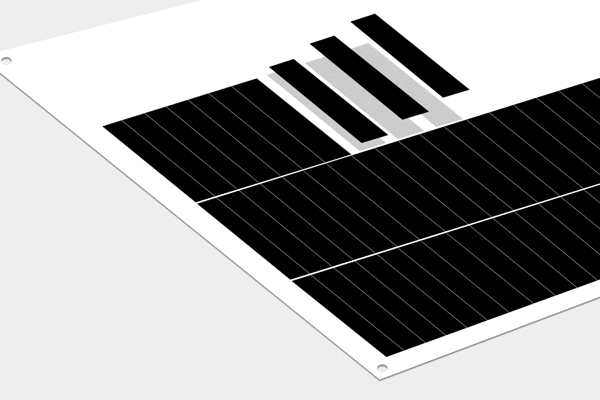

Shingled PERC technology
Shingled-cell technology eliminates cell spacing by overlapping small cells. Therefore more cells can be packaged in the same module area, which directly leads to an increase in module power.Shingled modules can produce more electricity in the same amount of time.The heat spot effect was significantly reduced
Applications

RV

Home

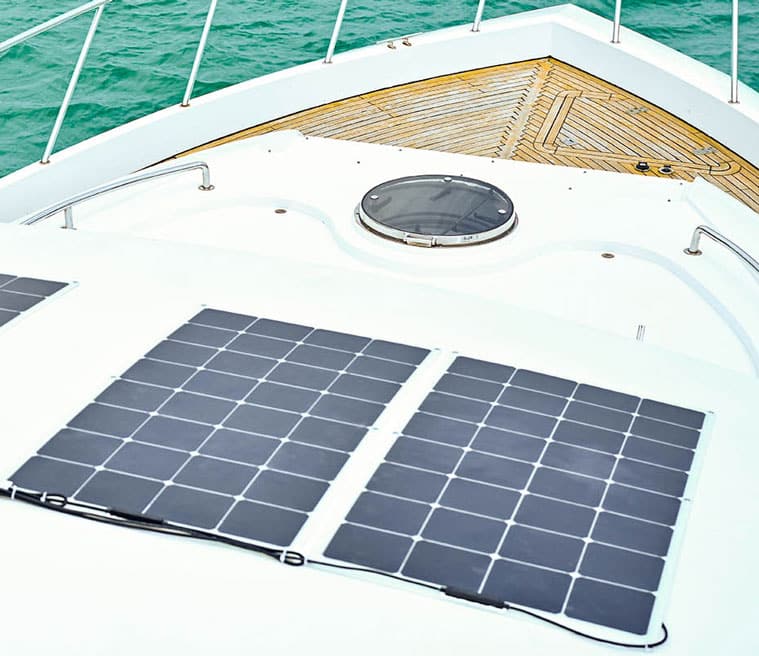

Yacht

Frequently Asked Questions

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

TF-D-100W flexible solar panel adopts shingled-cell welding technology. Compared with ordinary PV modules, shingled-cell modules have higher conversion efficiency and stronger resistance to hot spot effects.

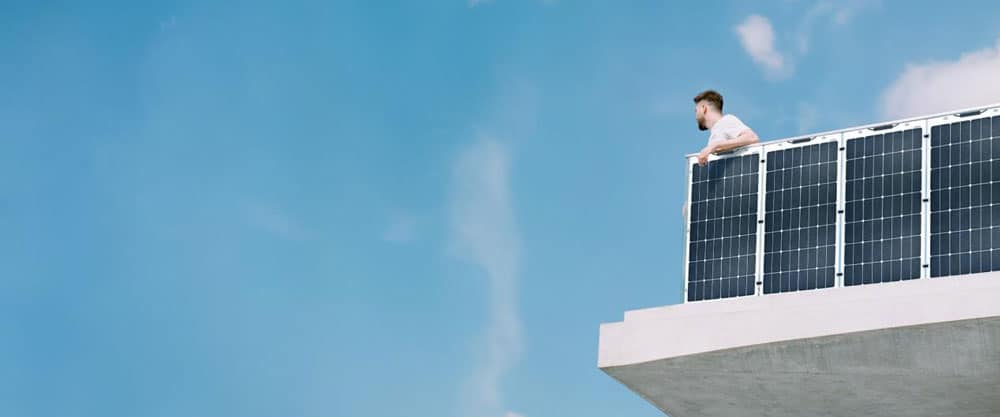

This 100W flexible solar panel is suitable for off-grid applications such as RVs and yachts. It can also be installed on balconies to provide power to your home.

The output efficiency of a solar panel may not be ideal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy sky, and accumulation of dirt and smudges on the surface of the solar panels, can result in reduced efficiency.

Specifications

Maximum power(Pmax)

100W

Open-circuit voltage(Voc)

22.2V

Voltage at Pmax(Vmp)

18.8V

Short-circuit current(Isc)

5.64A

Current at Pmax(Imp)

5.32A

Cells efficiency(%)

22.0%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

1.65kg

Size

1170*470*3mm

Warranty

6 years
