SG-TF-M-270W

Sungold 270 watt solar panel SG-TF-M-270W

Polymer composite material / 5 years warranty/ANTI-TRAMPLING
The SG-TF-M-270W is a small solar flexible panel that utilizes single-crystal cells, providing an impressive conversion efficiency of up to 23%. This innovative product incorporates breakthrough material design, featuring special patented materials inspired by ancient times to improve battery protection. By enhancing impact absorption, damage to the battery is minimized.
The SG-TF-M-270W solar panel is an ideal solution for various applications, including outdoor activities, RVs, homes, BIPV, and more. Its quality assurance and versatility make it an excellent energy solution for any situation.
make the most of every sunlight
Features
Adopt Polymer Composite Material
High conversion efficiency
Lightweight and Durable
Anti-trampling

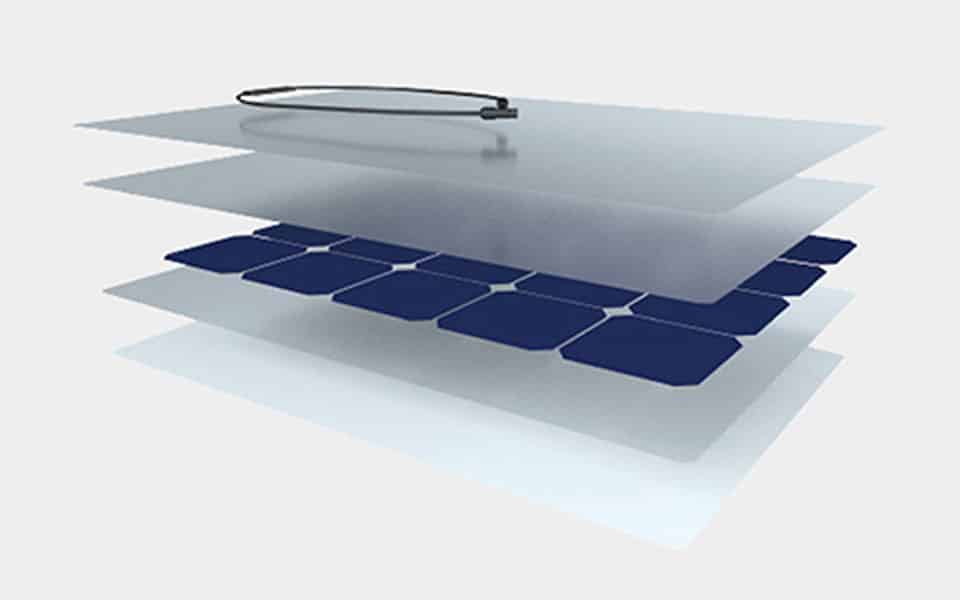

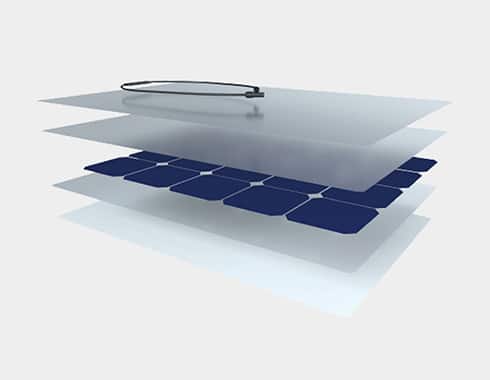

ADOPT POLYMER COMPOSITE MATERIAL
The SG-TF-270W solar panels are made of Sungold’s self-developed patented material, which has better performance than standard materials. It enhances the anti-aging, anti-UV, and corrosion resistance of solar panels, thereby extending their service life..

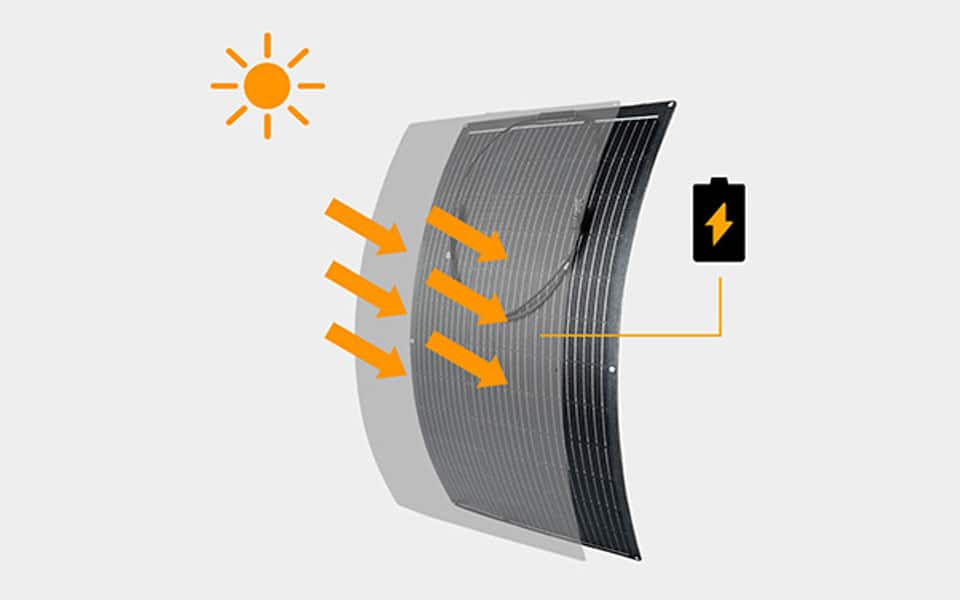

High conversion efficiency
The Sungold SG-TF-270W flexible solar panels feature monocrystalline silicon solar cells with cutting-edge technology that enables a new glass-free, thin, lightweight, and flexible solar panel design. These panels use conventional welding technology with mono 166 cells and boast a high and stable output with a conversion efficiency of up to 22.8%. They are the best choice for off-grid and outdoor activities.
Greater flexibility
The device has stronger adaptability to different scenarios, with a maximum bending height of 160mm, making it suitable for various applications. The installation method is more flexible, with different installation methods available according to different needs and scenarios, such as using 3M adhesive, drilling holes, or using straps.
Anti-trampling
SG-TF-M-270W flexible solar panels have passed long-term trampling tests. Ambient temperature -40~85℃, high impact resistance and weather resistance 5 years warranty, 10 years service life, stable output and trustworthy quality, keep excellent performance even in extreme weather
Applications

RV

Home

Yacht

Frequently Asked Questions

A half cell is obtained by cutting a standard cell in half. The half-cell module can reduce the loss of power generation due to shading. At the same time, the half cell can reduce the power loss of the whole PV module.

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

5 years warranty. TF series flexible solar panels have service life of 20 years

Sungold offers 55W, 110W, 200W, 220W, 245W, 270W light mono flexible solar panels to meet all your needs

ETFE material. ETFE material has the characteristics of weather resistance, corrosion resistance and aging resistance. ETFE material also has extremely high light transmission.

Specifications

Rated Power

270W

Open-circuit voltage(Voc)

28.50V

Voltage at Pmax(Vmp)

24.20V

Short Circuit Current

13.02A

Current at Pmax(Imp)

12.06A

Cells efficiency(%)

22.80%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

4.96kg (10.93lbs)

Dimensions

1950*710*2mm

Warranty

5 years
