LVP-180W

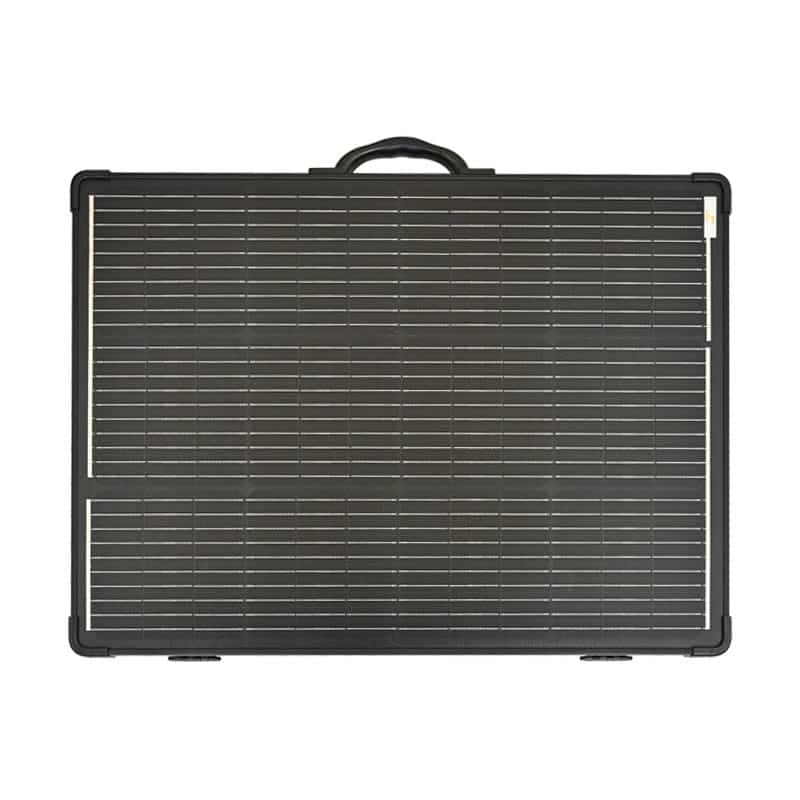

Sungold Folding Solar Panel Kit LVP-180W
The LVP series 180W foldable solar panel includes two monocrystalline solar panels, and the unique design makes it easier to store or transport. The back of the solar panel comes with two brackets. Just open the solar panel, adjust the bracket according to the angle of the sun, and it can be charged and used. Installation is very convenient. It’s perfect foldable solar panels for camping, outdoor use, RVs, and vans. Seasoned travelers will love it.
make the most of every sunlight
Features
Portability
ETFE material
High efficiency
Waterproof
Portability

The 180-watt solar panel is a foldable design for easy portability. A magnet at the handle keeps the panel closed without the need for a bulky latch for easy portability. The surface is made of scratch-resistant material, which can well protect the folding solar panel from scratches or damage during transportation.

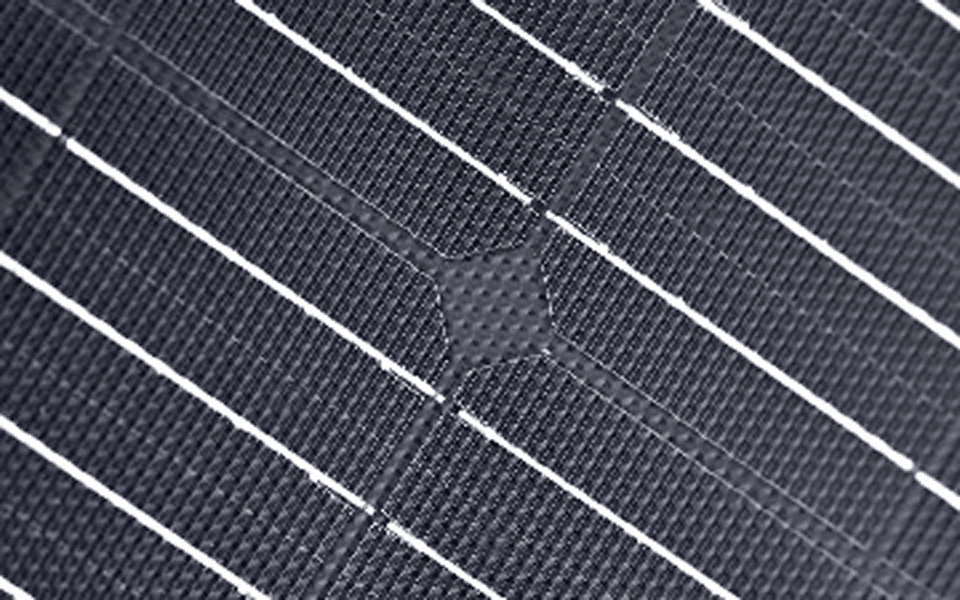

ETFE material
The portable foldable solar panel uses ETFE material as the front protective film, which ensures that the product has good anti-corrosion and anti-aging ability. It also has strong anti-uv resistance and good light transmittance, which can prolong the service life of the solar panel. This product uses polymer composite materials for better performance.
High efficiency

The solar panels cover high-efficiency monocrystalline silicon solar cells with a cell efficiency of 22.70%. Using multilayer cell technology to generate energy from sunlight with higher conversion efficiency.

Waterproof
The LVP 180W best foldable solar panel has an IP65 waterproof rating. The whole product will not be affected by rain or water splashing. All you need to do is wipe the surface dry and it will continue to absorb sunlight to charge.
Applications

RV

Camping

Home

Frequently Asked Questions

If you’re going RV camping, a picnic, or even an unexpected power outage,the LVP series can be used for most of your basic electrical loads. It can also be your reliable backup power source when you need electricity in special situations.

The greater the angle of the solar panel to the sun, the more electricity it can get. So put the solar panel in an open place to avoid the shade of trees.

With IP65 waterproof rating, the whole product will not be affected when working if it is rained or splashed by water. All you need to do is wipe off the surface water droplets.

1 years warranty. LE series flexible solar panels have service life of 10 years.

Absolutely. Anti-aging material handle, anti-corrosion metal bracket, using ETFE as the surface outer membrane. Ensure that the product has good corrosion resistance and anti-aging ability

Specifications

Maximum power(Pmax)

180W

Open-circuit voltage(Voc)

24.50V

Voltage at Pmax(Vmp)

20.90V

Short-circuit current(Isc)

9.04A

Current at Pmax(Imp)

8.62A

Cells efficiency(%)

22.70%

The maximum system voltage

100V DC(IEC)

Power temperature coefficient

-0.42%/℃

Voltage temperature coefficient

-0.32%/℃

Current temperature coefficient

0.04%/℃

Output power tolerance

±3%

Operating temperature

-10~60℃

Folding size

825*595*50mm

Unfolding size

1193*825*25mm

Warranty

1 year
