HP-D-2*100W

Sungold 200 watt solar panel kit HP-D-2*100W

The Sungold Hi-Power Series 2*100W Portable Solar Panel is a highly efficient, foldable solar panel. The folded size is 900*590*50mm. Hi-Power series 2*100W portable solar panel is very light, only 5.88kg. With the help of the handle, you can carry it easily. It uses PERC shingled solar cells, which makes the solar panel more efficient in conversion.
Hi-Power series 2*100W portable solar panel is suitable for high-power application scenarios such as off-grid homes, RV, commercial vehicles, boats, outdoor camping, and outdoor emergencies.
MAKE THE MOST OF EVERY SUNLIGHT
Features
Shingled cells welding technology
PERC shingled solar cells
Adjustable bracket
Easy to use
ETFE surface material
ETFE surface material
Waterproof and portable
PERC shingled solar cells

Hi-Power series 2*100W portable solar panel adopts Shingled technology, which can optimize the module structure and achieve zero spacing between cells, effectively increasing the light-receiving area of the module. More cells can be packaged in the same area, thus increasing the conversion efficiency of the PV module. The conversion efficiency can be as high as 22%.

portable solar panels

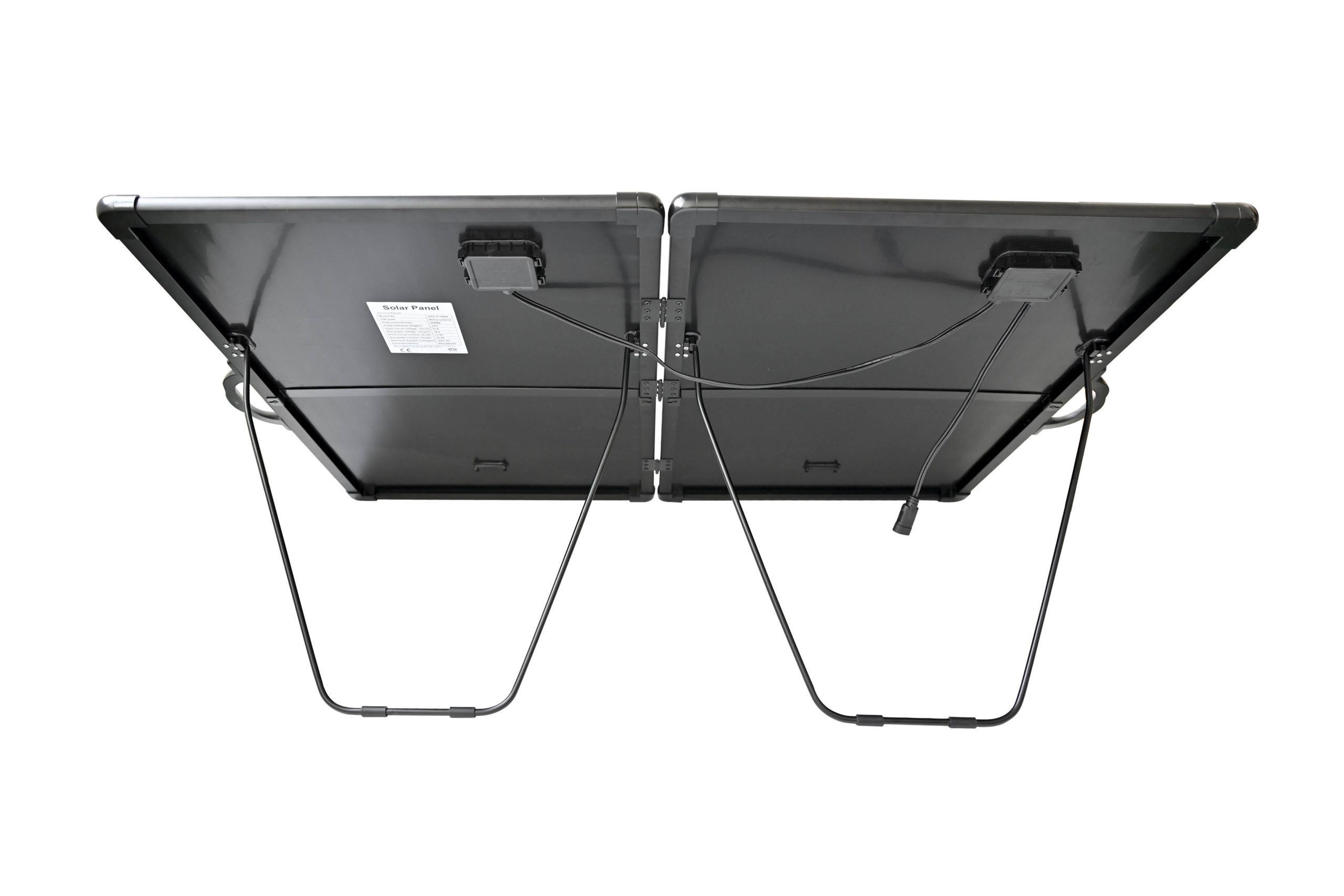

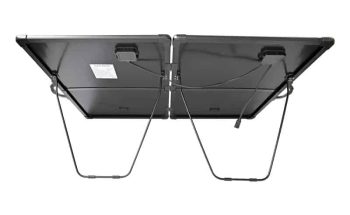

Adjustable bracket
Easy to use

Hi-Power 2*100W portable solar panel is equipped with 2 brackets that can be firmly placed on any ground, making it very easy to install. It only takes a few seconds to set up and you can generate electricity from sunlight. The charging speed is very fast.

ETFE surface material
The surface of the RV portable solar panel is covered with ETFE material, which is highly weather resistant. Sungold HP-D-2*100W solar panel is made of patented material and new technology. The solar panel has a longer service life. It is an indispensable power solution for outdoor applications.
Waterproof and portable
Sungold HP-D-2*100W portable solar panel is very light and easy to carry. You can lift this foldable solar panel with just one hand. If you use an MC4 connector, the waterproof rating can reach IP67. the whole product can be completely submerged in water without affecting the work of the product.
Applications

sungold solar panel application

Frequently Asked Questions

This Hi-Power Series 2*100W Portable Solar Panel is designed to power the outdoors, RV camping, fishing, off-roading, and emergencies. Hi-Power Series solar panels can power most of your basic outdoor appliances and electronics.

Adjust the angle of the solar panel at any time. Let the sun shine directly on the solar panel.
Yes. Sungold Hi-power series solar panels are IP67 waterproof, but please do not put them in the rain or submerge them in water.
Thank you for your interest in the Sungold Hi-power series portable solar panel. We offer a five-year warranty for this solar panel. If there is any problem when using the product, you can contact us. We are always at your service.
Specifications

Maximum power(Pmax)

2*100W

Open-circuit voltage(Voc)

22.9V

Voltage at Pmax(Vmp)

19.4V

Short-circuit current(Isc)

10.93A

Current at Pmax(Imp)

10.31A

Cells efficiency(%)

22.00%

The maximum system voltage

100V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

0.07%/℃

Output power tolerance

±3%

Operating temperature

-20~70℃

Weight

5.88kg (12.96lbs)

Folding Size

900*625*50mm

Unfold Size

1252*900*25mm

Warranty

5 year
