HP-D-3*100W
Sungold 300 watt solar panels HP-D-3*100W
Sungold Hi-Power series 3*100W portable solar panel is a high efficiency, foldable solar panel. The panel is very lightweight at only 20.07 lbs (9.04kg). With the help of the handle, you can carry it easily.
The portable solar panel uses PERC stacked watt solar cells. It is suitable for off-grid home, RV, commercial vehicles, boats, outdoor camping, outdoor emergency and other high-power application scenarios.
MAKE THE MOST OF EVERY SUNLIGHT
Features
PERC shingled solar cells
Easy to use
ETFE surface material
Waterproof and portable
PERC shingled solar cells
Hi-Power series 3*100W portable solar panel adopts shingled technology to optimize the module structure and achieve zero spacing of solar cells, which effectively increases the light receiving area of the module. The conversion efficiency is up to 22%.
Easy to use

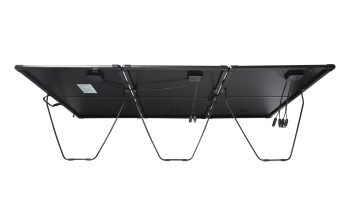

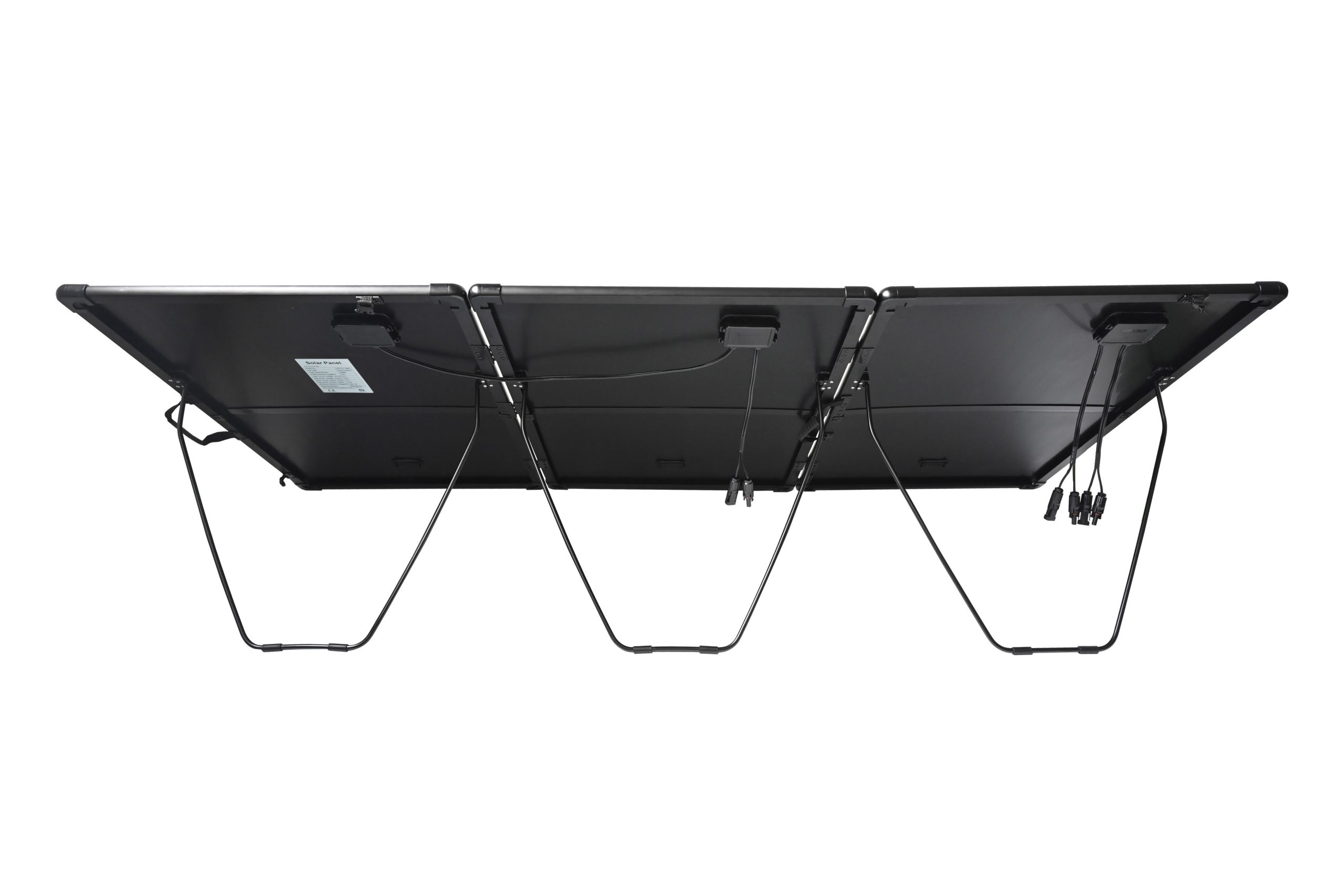

HP-D-3*100W portable solar panel is equipped with 3 brackets, which can be firmly placed on the ground. Installation is very easy. In just a few seconds, you can use the sunlight to generate electricity.

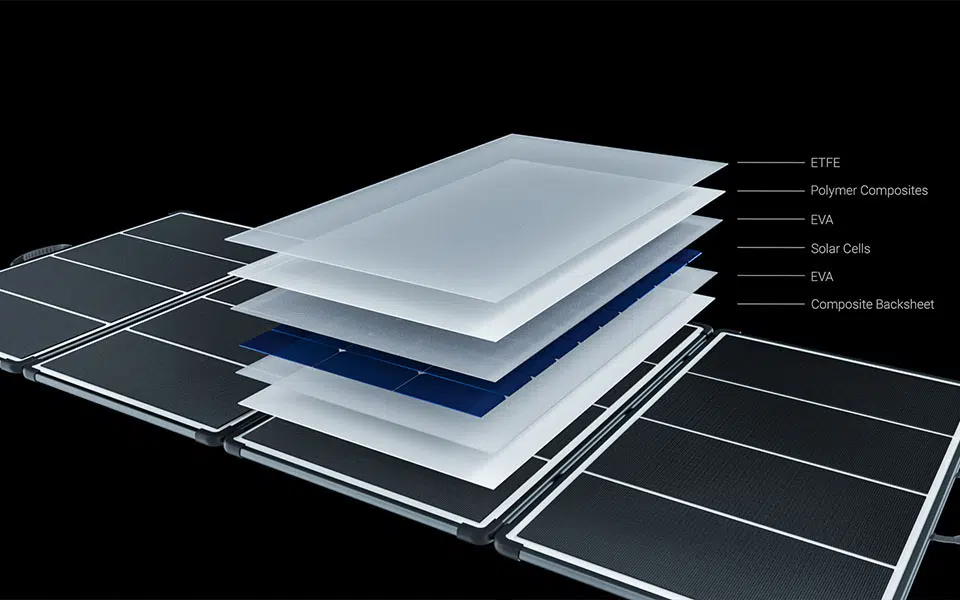

ETFE surface material
The RV portable solar panel is covered with ETFE material, which is highly weather resistant. Sungold HP-D-3*100W solar panel is made of patented material and new technology. The panels have a longer service life.
Waterproof and portable
The foldable solar panel and its portable. Waterproof rating up to IP67 if MC4 connector is used. The whole product can be completely submerged in water without affecting the working of the product.
Applications
Frequently Asked Questions
This Hi-Power Series 3*100W Portable Solar Panel is designed to power the outdoors, RV camping, fishing, off-roading, and emergencies. Hi-Power Series solar panels can power most of your basic outdoor appliances and electronics.
Adjust the angle of the solar panel at any time. Let the sun shine directly on the solar panel.
Yes. Sungold Hi-power series solar panels are IP67 waterproof, but please do not put them in the rain or submerge them in water.
Thank you for your interest in the Sungold Hi-power series portable solar panel. We offer a five-year warranty for this solar panel. If there is any problem when using the product, you can contact us. We are always at your service.
Specifications
Maximum power(Pmax)
3*100W
Open-circuit voltage(Voc)
21.5V
Voltage at Pmax(Vmp)
18.2V
Short-circuit current(Isc)
17.47A
Current at Pmax(Imp)
16.49A
Cells efficiency(%)
22.00%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.07%/℃
Output power tolerance
±3%
Operating temperature
-20~70℃
Weight
9.04kg (20.07lbs)
Folding Size
900*590*70mm
Unfold Size
1772*900*25mm
Warranty
5 year
