SGWB2-TF-D-2*50W-A
Sungold 100 watt solar panel kit SGWB2-TF-D-2*50W-A
Shingle solar cells design
The SGWB2-TF-D-100W-A Portable Solar Panel is easy to set up with an adjustable stand for easy portability and installation. The solar panel uses shingled cells, and more cells are packaged in the same area, so that the conversion efficiency of the module is higher.
Unique handle design
The size of the solar panel and the color of the handle can be flexibly set and customized according to your needs. The solar panel has high compatibility features and can be used with portable power stations anytime and anywhere. It is also equipped with an external USB port to meet the needs of your other mobile devices.
make the most of every
Features
Monocrystalline Solar Cells
Customized Service
Wide compatibility
Easy to carry
Monocrystalline Solar Cells
Sungold Winner bag SGWB2-TF-M-100W portable solar panel is made of high-efficiency A-grade monocrystalline silicon solar cells with high conversion efficiency. This solar panel is perfect for outdoor life and can meet all your needs even in case of an unexpected power outage.
Customized Service
This foldable solar panel is designed for outdoor use with a single carrying handle for more portability and features two adjustable brackets for easy installation or angle adjustment. We also have a unique customization service where the solar panel size, wiring, and color of the carrying handle can be flexibly set and customized according to your needs.
Wide compatibility
Winner bag series solar panels can be used anywhere and anytime with portable power stations, or external USB ports can be used at any time to meet the needs of your other mobile devices. There are multiple output ports on the junction box, DC port, USB port, and Type-C port so that you can charge your smartphone, tablet, and laptop anytime.

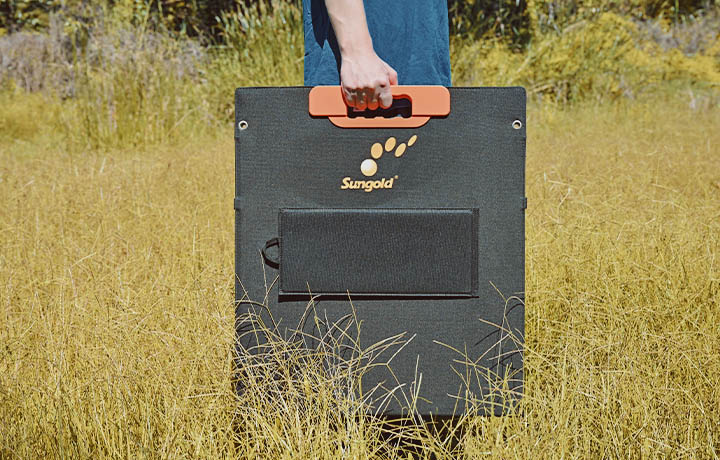

Easy to carry
The foldable solar panel is perfect for outdoor living such as camping, hiking, climbing, and picnicking, as well as for hikers, RVers, and more. The Sungold Winner bag SGWB2-TF-M-100W portable solar panel features compact dimensions ( 605*535*36mm folded, 1200*535*20mm unfolded) and a lightweight (7.50lbs.) design that is light and easy to store and carry.
Applications
RV
Home
Outdoor
Frequently Asked Questions
What are the dimensions of the Sungold Winner bag SGWB2-TF-M-100W-A solar panel folded and unfolded?
The solar panel kit weighs only 6.7 lbs (3.02kg) and is foldable. When folded, it is approximately 24 inches (60.5cm) long, 21 inches (53.5cm) wide, and 1.2 inches (3.2cm) thick, and when unfolded, it is approximately 47 inches (120cm) long, 21 inches (53.5cm) wide and 0.6 inches (1.6cm) thick.

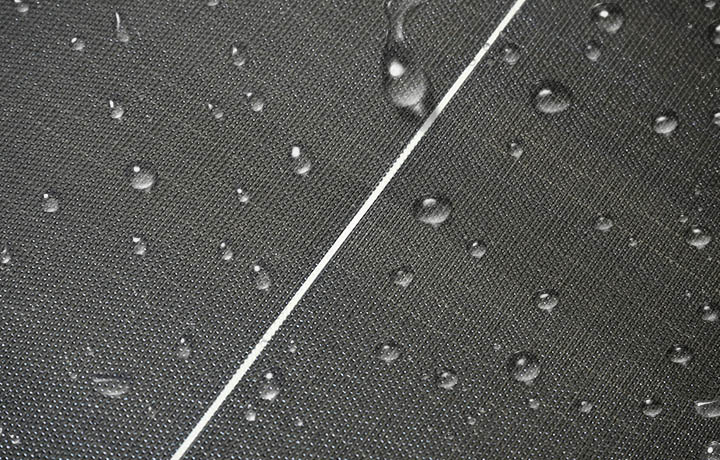

The exterior of the solar panel is made of waterproof polyester canvas, so it is water-resistant and has an IP65 waterproof rating. However, please do not leave it in the rain or submerge it in water. The junction box on the solar panel is not waterproof, so please keep it dry.
Solar panels are affected by many factors. For example, the intensity of light and the angle at which the panel is placed on the ground. 100W is tested in an ideal laboratory. In addition, the output power of the solar panel may be limited by the maximum input power of the power station. Please try testing your solar panels in full sunlight to see and make sure there are no shadows on the panels.
The Sungold Winner bag SGWB2-TF-M-100W-A portable solar panel is made up of 2 pieces of 50W solar panels with two adjustable brackets that can be angled at any time. The solar panel’s bracket is durable enough without being damaged by external forces.
Hello, made in China. We offer the best quality and cost-effective products and design your solar solution according to your needs.
Specifications
Maximum power(Pmax)
2*50W
Open-circuit voltage(Voc)
22.9V
Voltage at Pmax(Vmp)
19.4V
Short-circuit current(Isc)
5.46A
Current at Pmax(Imp)
5.16A
Cells efficiency(%)
22.00%
The maximum system voltage
100V DC(IEC)
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.05%/℃
Power temperature coefficient
-0.36%/℃
Output power tolerance
±3%
Operating temperature
-10~60℃
Weight
7.50lbs
Folding Size
615*535*32mm
Unfold Size
1100*615*16mm
