SGWB2-TF-D-4*50W-b
Sungold 200 watts solar panel SGWB2-TF-D-4*50W-B

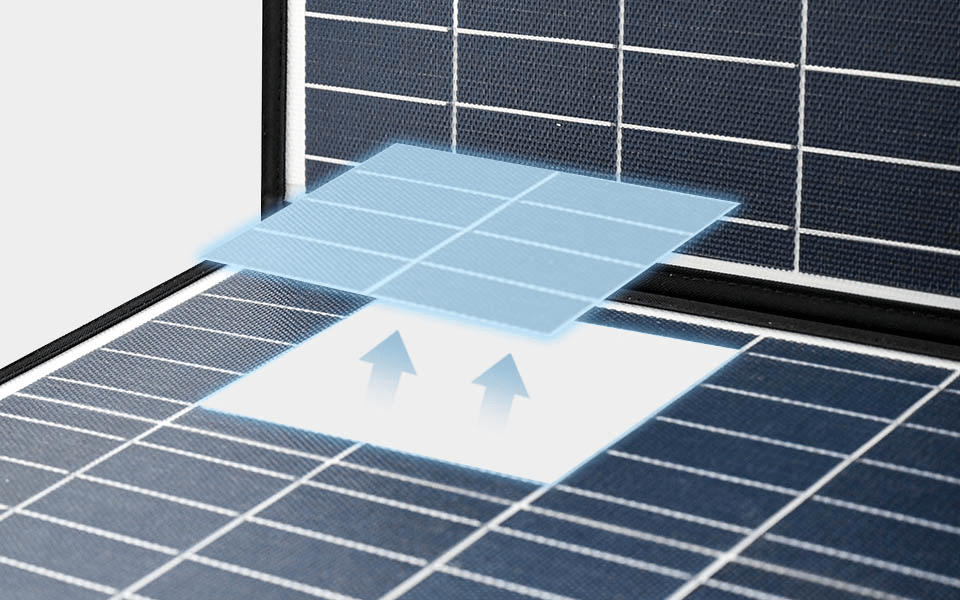

Shingled-cell Technology
PERC shingled solar cells
Sungold Winner bag SGWB2-TF-D-200W portable solar panel uses PERC shingled solar cells.BeautifulAppearance: reduce the cells distance, even cell arrangement, perfectvisual enjoyment.
The shingled modules can reduce the line loss by 3% and increase the light receiving area by 4%
Simplistic connectivity

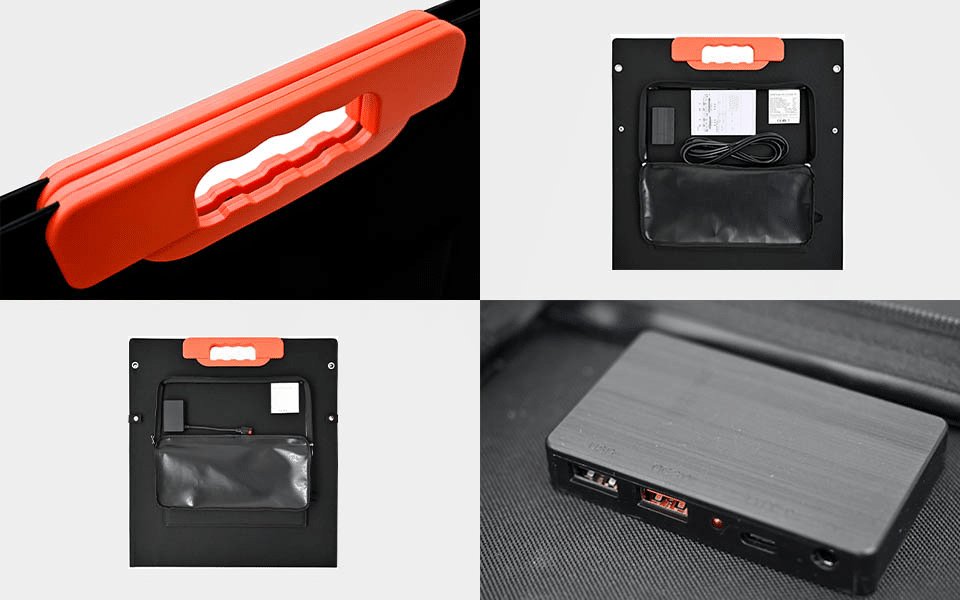

The Sungold Winner bag SGWB2-TF-D-200W-B has an embedded Anderson connector in the carrying handle and is equipped with a 3M adaptive cable to connect to the energy storage.You get to directly charge your mobile electronic devices. Sungold can customize the service according to your requirements and choices. The B model is also a decent portable solar panel selection

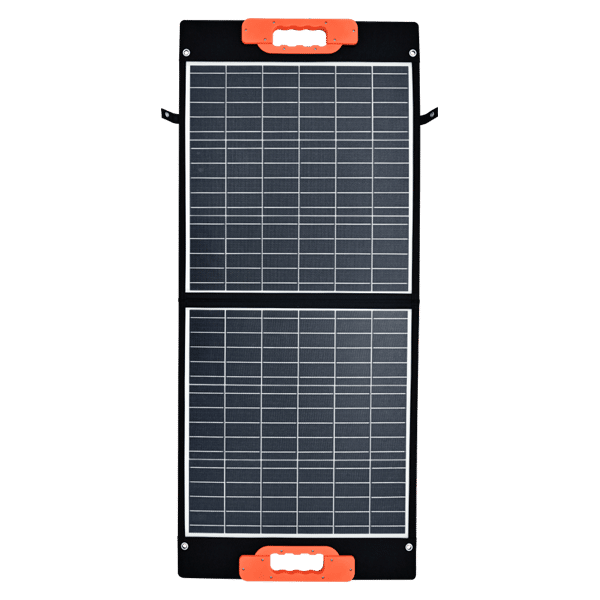

Portable solar panel Winner bag SGWB2-TF-D-200W with humanized portable design, orange handle fashionable and beautiful, can be hung design for easy installation. For cell phones, computers, cameras, tablets and other small electronic devices to provide portable solar station and charging support, let you travel worry-free
Winner bag SGWB2-TF-D-200W portable solar panel is foldable, lightweight, and portable, 1/3 lighter than a rigid solar panel of the same power. 1/3 more total power compared to a solar panel of the same size. the folded size is only 24.2×21.7×1.26 inches, perfect for off-grid situations such as travel, and doesn’t take up much space
RV
Home
Outdoor
Maximum power(Pmax)
4*50W
Open-circuit voltage(Voc)
22.9V
Voltage at Pmax(Vmp)
19.4V
Short-circuit current(Isc)
10.93A
Current at Pmax(Imp)
10.31A
Cells efficiency(%)
22.00%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.05%/℃
Output power tolerance
±5%
Operating temperature
-10~60℃
Weight
7.50lbs
Folding Size
615*550*36mm
Unfold Size
2040*615*20mm
