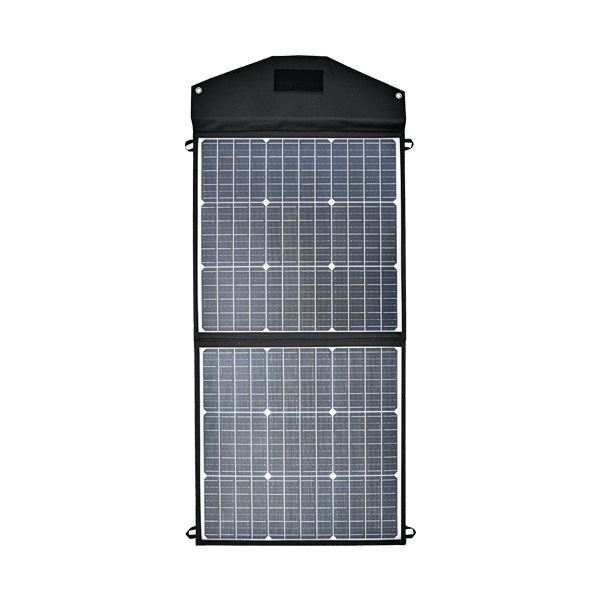

SPC-TF-M-110W
The Sungold SPC series is one of the most powerful foldable solar panels on the market today. Designed with both convenience and practicality in mind, the SPC portable solar folding bag features portability and high power for outdoor use. This SPC-TF-M-110W solar charging pack is made up of two 55W solar panels, which are approximately 51 inches when opened and only 22 inches when folded. Also in the process, we use high-efficiency monocrystalline solar cells, which are compatible with mainstream portable power stations and various battery connections. Practicality is strong, giving you perfect experience of using it.
SPC series solar panel is the best portable solar panel for RV or camping with lightweight and high output power. The folding solar panel can be used in an off-grid environment, allowing you to enjoy the tranquility of the outdoors.
make the most of every
Features
Monocrystalline silicon solar cell
High compatibility
ETFE surface material
CE and ROHS certification

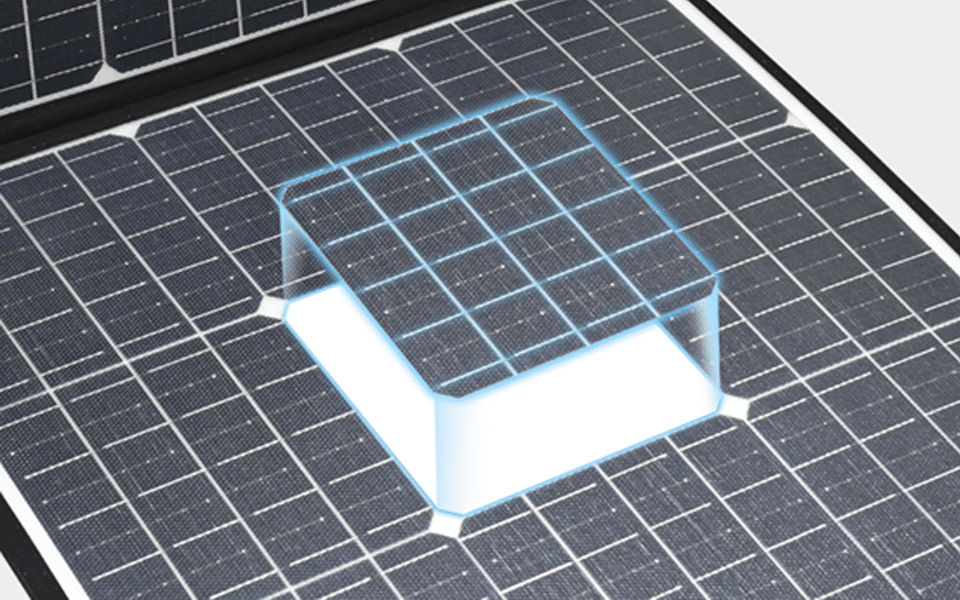

Monocrystalline silicon solar cell
Sungold SPC-TF-M-110W uses A-grade monocrystalline silicon solar cells with an efficiency of up to 22.60%. It is only 0.6 inches (1.5 cm) thick when folded and weighs only 7.72 pounds (3.5 kg), making it the perfect choice for your emergency and outdoor life.

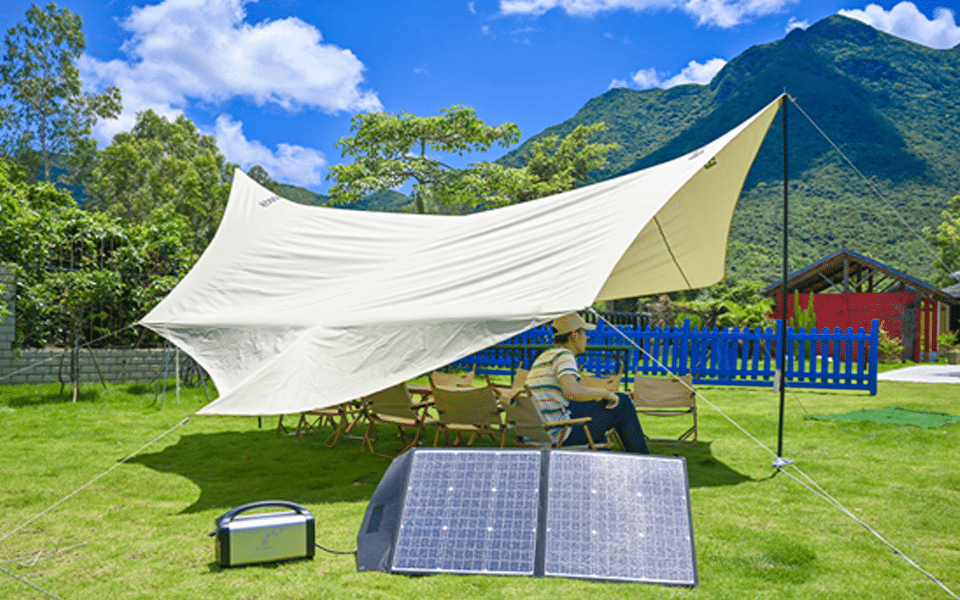

High compatibility
Sungold SPC series are folding solar panels with Anderson plug and a variety of cable accessories available to meet a variety of portable power stations. It can quickly charge your smartphone, laptop, tablet, iPad, GPS, USB fan, camera, or other USB devices at the same time.

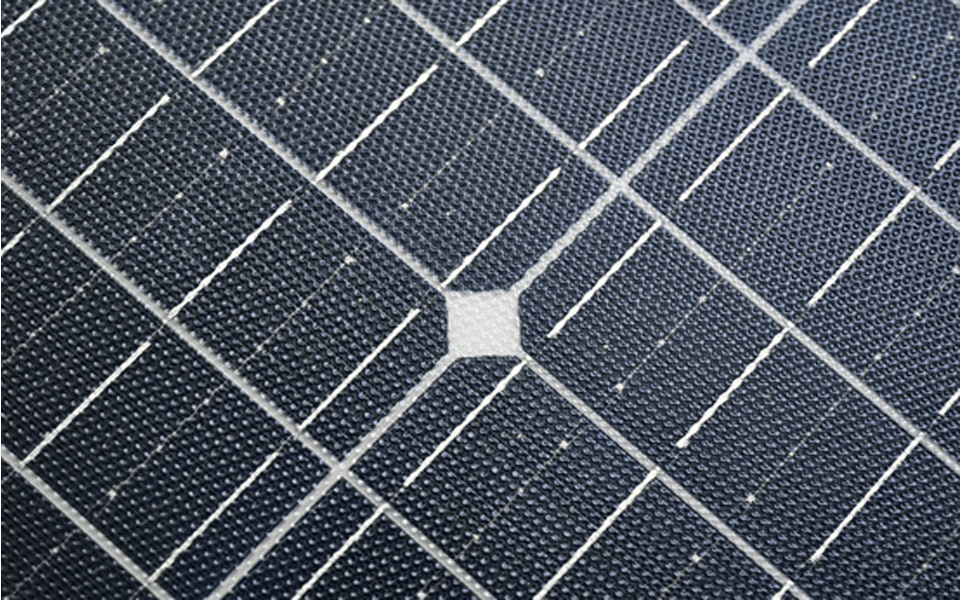

ETFE surface material
The portable solar panel is made of ETFE surface material, which is thinner and the surface is not easily scratched and is weather resistant. The surface also has a stronger light transmission and can absorb more sunlight. It is a ready-to-use solution for outdoor off-grid.
CE and ROHS certification
This portable folding solar panel is CE and ROHS certified to ensure the reliability of the solar panel and is suitable for charging a wide range of products to meet your daily needs. It is durable and has an IP65 waterproof rating.
Applications
Frequently Asked Questions
Solar panels are affected by light and angle. The angle of the light that illuminates the solar panel and the intensity of the light varies with the sun’s rotation. Please try testing the panels in full sunlight to ensure that no shadows are cast.
Yes, it has an IP65 waterproof rating, but only for temporary or emergency use. Not designed for permanent installation or extended weather exposure, please do not leave them outside all the time at night or in bad weather.
The solar panel kit weighs only 7.77 lbs (3.5kg) and is collapsible. When collapsed, it is approximately 22 inches (56.5cm) long, 21 inches (55cm) wide, and 0.6 inches (1.5cm) thick, and when unfolded, it is approximately 51 inches (130.5cm) long, 22 inches (56cm) wide, and 0.16 inches (0.4cm) thick.
When using solar panels, it is normal for the actual power to fall short of the rated capacity. The power output of the solar panel is disturbed by the sunlight intensity, temperature, shading, etc.
No, you can’t do that. Different solar panels have different output voltages and currents, so when the panels are connected in parallel or series, the solar panels may be damaged.
Specifications
Maximum power(Pmax)
110W
Open-circuit voltage(Voc)
23.36V
Voltage at Pmax(Vmp)
19.80V
Short-circuit current(Isc)
5.97A
Current at Pmax(Imp)
5.64A
Cells efficiency(%)
22.80%
The maximum system voltage
100V DC(IEC)
Power temperature coefficient
-0.43%/℃
Voltage temperature coefficient
-0.34%/℃
Current temperature coefficient
0.05%/℃
Output power tolerance
±3%
Operating temperature
-10~60℃
Weight
3.50kg (7.72lbs)
Folding Size
565*550*15mm
Unfold Size
1305*560*4mm
Warranty
1 year
