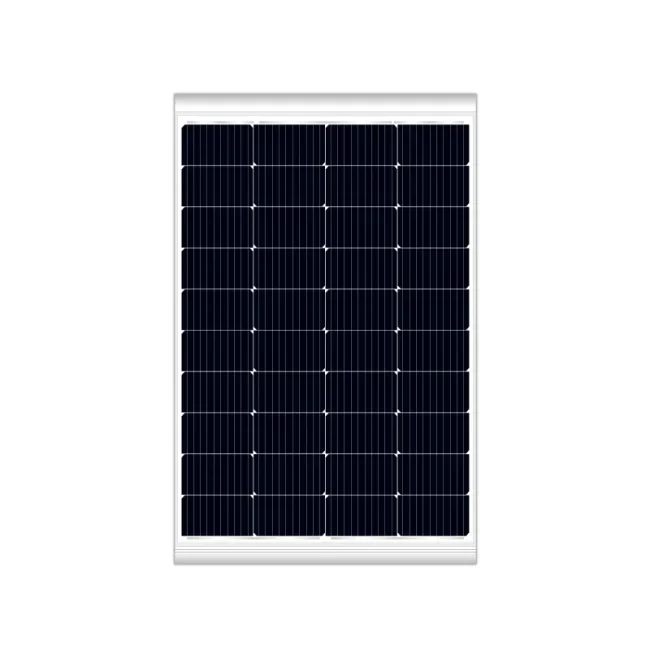

Solar Panel For RV Battery Charging

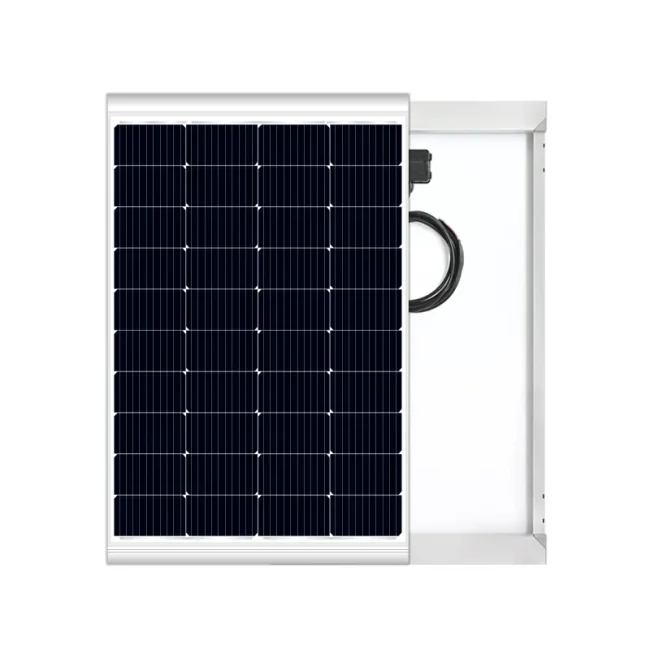

Solar Panel For RV Battery Charging

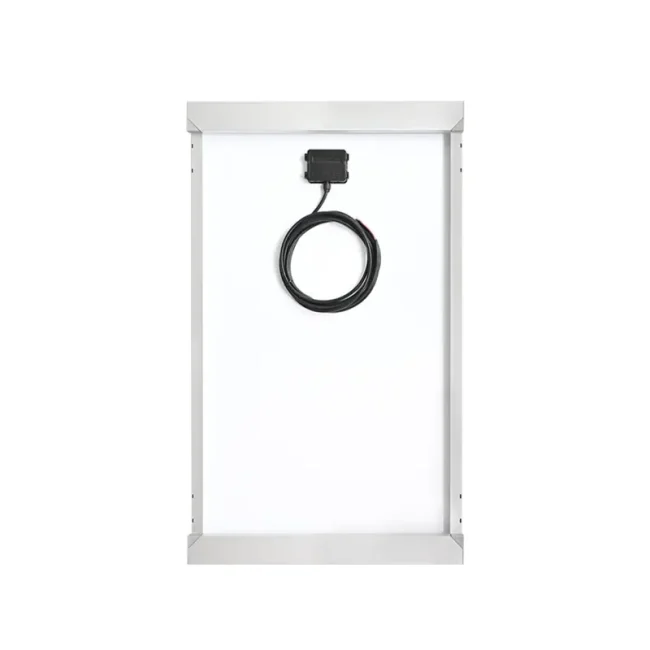

Solar Panel For RV Battery Charging SGBF back

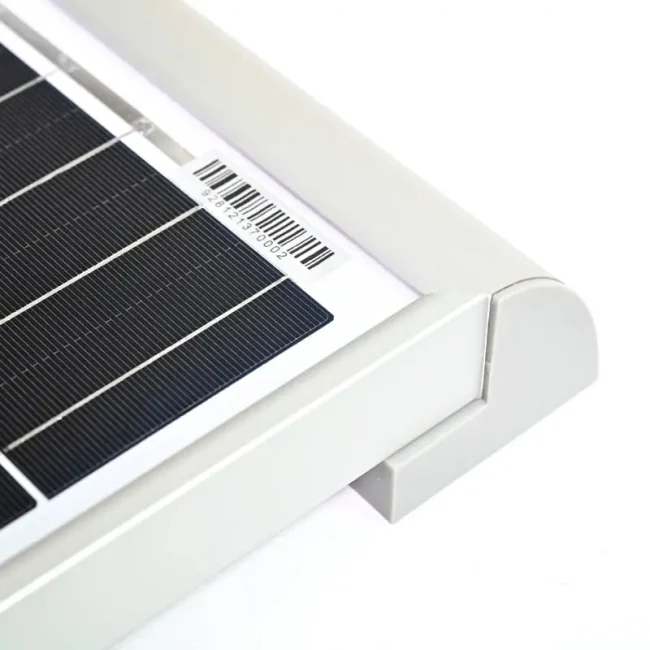

Solar Panel For RV Battery Charging SGBF2-1

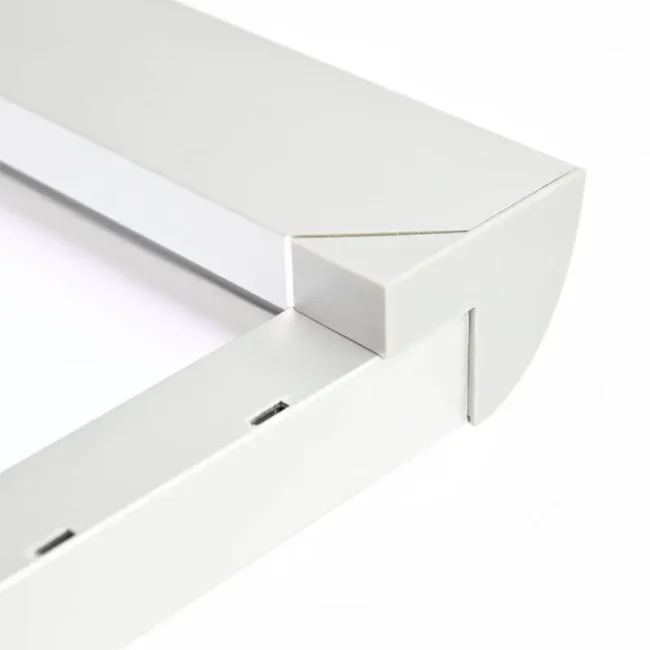

Solar Panel For RV Battery Charging SGBF2-2

Sungold Solar Panel For RV Battery Charging SGBF2-150W

The Sungold Solar Panel for RV Battery Charging SGBF2-150W is the perfect solution for charging RV batteries. Featuring monocrystalline cells with a conversion efficiency of up to 22.70%, it is capable of meeting the basic electrical load of RV life.
The Sungold Solar Panel Kits For RV SGBF2-135W feature a durable glass surface that not only protects the solar cells to maintain high conversion efficiency but also increases the product life to 25 years with excellent quality and stability.
Contact Us

MAKE THE MOST OF EVERY SUNLIGHT

Edit Content
High efficiency

OUTSTANDING EFFICIENCY

Durable and Robust

STRONG SECURITY

High Safety

EXCELLENT ADAPTABILITY

High Transparency

GREAT TRANSPARENCY

OUTSTANDING EFFICIENCY

Sungold Solar Panel For RV Battery Charging SGBF2-150W features a monocrystalline silicon cell with a highly transparent glass surface panel and a conversion efficiency of 22.70%, making it ideal for RV battery charging.

High efficiency
High transparency

STRONG SECURITY

Sungold Solar Panel For RV Battery Charging SGBF2-150W features a highly secure aluminum frame, a robust PET backing, and a 25-year service life with a 10-year warranty, proving its superior quality.

EXCELLENT ADAPTABILITY

Sungold Solar Panel For RV Battery Charging SGBF2-150W module size is 1060*770*55mm and provides sufficient power to support a small unit area, Sungold also offers a customization service to suit different types of RVs.

Versatility
Durable and robust

GREAT TRANSPARENCY

The glass surface of Sungold Solar Panel For RV Battery Charging SGBF2-150W features excellent light translucency and minimal light absorption, allowing for efficient sunlight utilization and improved power output. Its low reflection rate also reduces energy losses, resulting in increased module efficiency.

Solar Panel for RV Battery Charging

Use Sungold RV Solar Panels to charge your 12-volt battery anywhere the sun shines! This unique 150w RV solar panel is designed with a unique RV frame, perfect for RVs, off-grid villas and backup power. Extend battery life, save money, reduce fuel consumption, minimize emissions and noise, and provide greater freedom and independence from the grid.Get the best solar panel for RV battery charging. Our top picks include RV solar panel kits with inverters and batteries for off-grid power solutions
Solar Panel for RV Battery Charging
The 150w rigid RV solar panels are best suited for permanent installation and can be fixed to a mounting surface (such as the roof of your RV) using the included mounting kit. Since they are in a fixed location, you need to position your campervan in the right spot to capture maximum energy from the sun.
Portable solar panels are best for portability if you want to move, relocate, or relocate your solar panels regularly. They include a fold-out tilt stand (no installation kit required!)
150w rigid RV solar panels

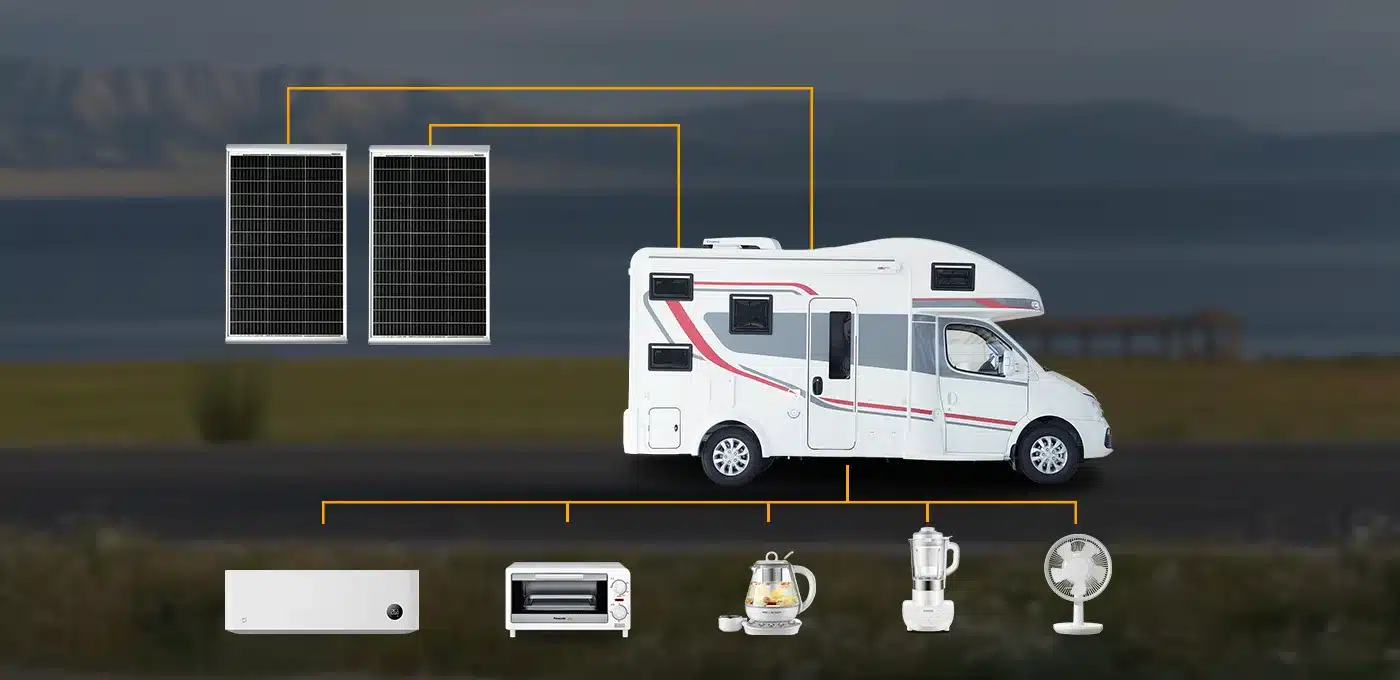

Which Size Battery Do I Need?

When using solar power to power an RV or mobile home, the battery is an important part of the system. Depending on the size of the system, it may take from one to multiple batteries to store enough energy when the sun rises. Lithium-ion batteries are generally more efficient and last longer than lead-acid batteries, making them ideal for solar systems that require extended storage periods.
Which Size Battery Do I Need
Edit Content

Maximum power(Pmax)

150W

Open-circuit voltage(Voc)

26.7V

Voltage at Pmax(Vmp)

22.8V

Short-circuit current(Isc)

6.91A

Current at Pmax(Imp)

6.58A

Cells efficiency(%)

22.70%

The maximum system voltage

DC1000

Power temperature coefficient

-0.42%/℃

Voltage temperature coefficient

-0.32%/℃

Power temperature coefficient

+0.04%/℃

Output power tolerance

±3%

Operating temperature

-40℃~85℃

Weight

-

Module Dimension

1060*770*55mm

Warranty

10 years

Download Specs
Edit Content

RV

Home

Outdoor

Edit Content
Sungold Solar Panel 150 Watt can power many devices such as RV battery ,LED lights, mobile phone chargers, speakers, small fans, wireless routers, etc.
This depends on your household’s electricity needs and the performance of the solar panels. On average, a household needs 5-10 Sungold Solar Panel 150 Watt to meet its basic electricity needs.
Installing solar panels requires a number of skills and tools. We recommend that you have them installed by a professional or refer to the relevant installation guide.
This depends on the type of battery you are using and the performance of the solar panel.
No. Sungold Solar Panel For RV Battery Charging SGBF2-150W rely on sunlight to generate electricity and there is no sunlight at night, therefore solar panels cannot power equipment.
10 years warranty, 25 years service life.
It is1060*770*55mm, if you need other sizes Sungold offers a custom service.
