SGM2-65W

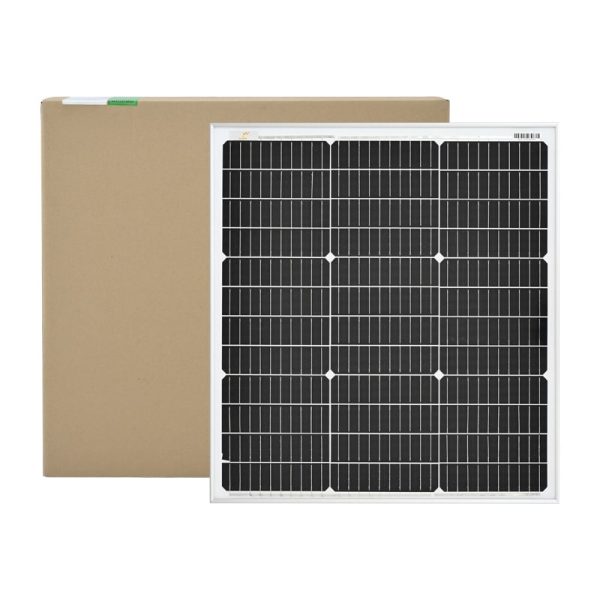

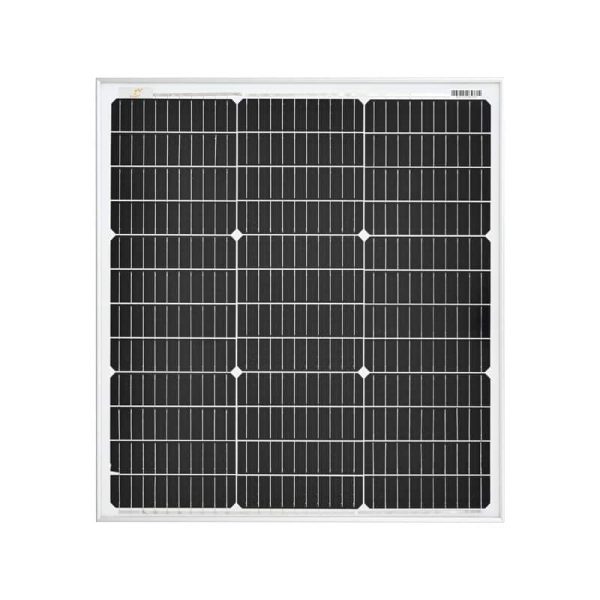

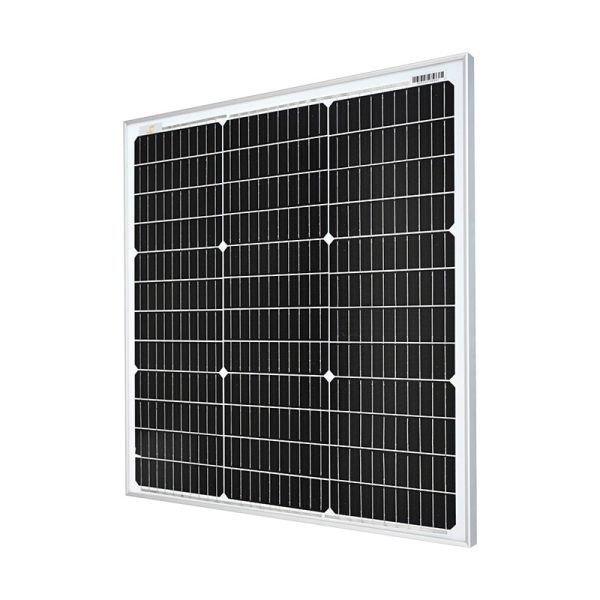

Sungold solar panels commercial SGM2-65W

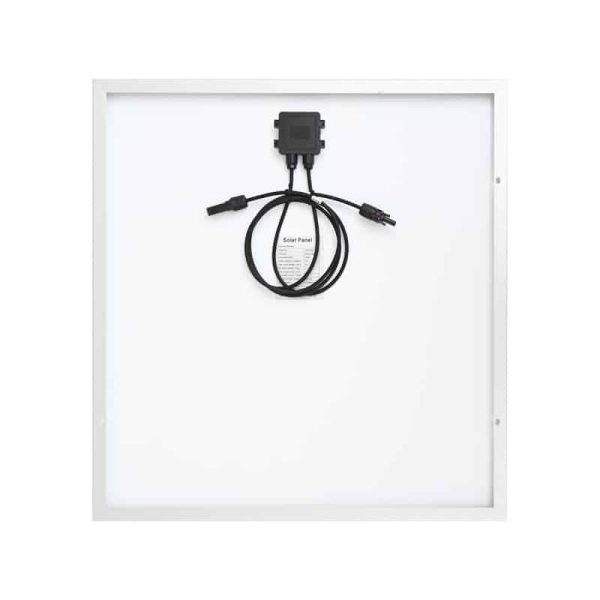

Sungold SGM2-65W solar rigid solar panels, on the mono solar cell, take unique Half-cut cell technology, reduce interconnection losses, and bring higher efficiency. this solar kit is easy to install and virtually maintenance-free. An anodized aluminum frame and a sealed junction box make the solar PV module weatherproof for outdoor use.

Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouses, and LED lights.

make the most of every sunlight
Features
Mature
Higher Efficiency
Durable & Strong
Versatile
Mature
SGM series solar pv module uses the most mature product design. The overall product has been available for many years and has been tested for a long time environment, which is the most stable design.
Higher Efficiency

Under the condition of sufficient sunlight, the conversion rate of the cell reaches 22.70%. Compared with conventional solar panels, it allows more direct sunlight to be converted to electrical power.

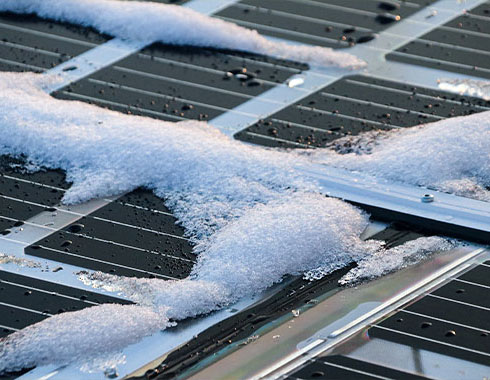

Durable & Strong

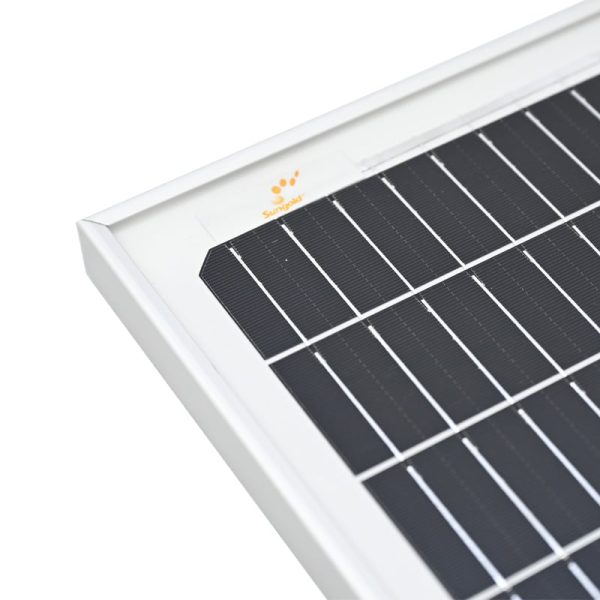

Stronger 40mm robust frame to hold 5400 Pa load. Enhanced system reliability in extreme temperatures. The environment with special cell level stress release technology. Salt mist, ammonia, and blowing sand resistance apply to seaside, farm, and desert environments.

Versatile

Use rigid solar panels for RV camping or during beach trips with the family, either way, this monocrystalline panel provides you with the most efficiency per space.

Applications

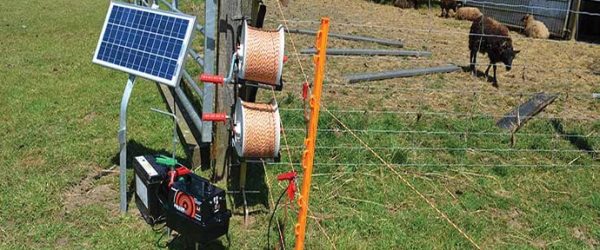

Solar Electric Fance

Solar Electric Fence

Rooftop

Yacht

Frequently Asked Questions
The output power of solar panels is mainly affected by light intensity, light angle, and shadow occlusion during the use of solar panels. Therefore, during daily use, the angle of illumination must be adjusted to prevent shadows, and the obstructions on the solar panel must be cleaned regularly, such as bird droppings, dust, and garbage. Such obstructions may cause the solar panel to not output at all.
yes, surely you can install on roof of your vehicle for charge the AGM car battery.
yes, we support two same solar module connect in parallel or series to increase the power, the system voltage is 1000V.
would recommend use this solar panel to charge the battery, and run your radio with the battery.
yes, you can, the USB power comes from the battery, and the controller will protect the battery from overcharging and overloading.
The solar panel uses tempered glass to protect the cells, naturally, falling acorns will not damage it.

If your calculations indicate that you need more than 65 watts solar panel capacity to meet the daily energy requirements of your solar electric fence charger, then 65-watt solar panels should be sufficient, provided their capacity meets or exceeds the calculated requirement. You can use one or multiple solar panels to achieve the necessary capacity

Specifications

Maximum power(Pmax)

65W

Open-circuit voltage(Voc)

24.5V

Voltage at Pmax(Vmp)

20.9V

Short-circuit current(Isc)

3.27A

Current at Pmax(Imp)

3.12A

Cells efficiency(%)

22.70%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

625*590*25mm

Weight (with Kickstand Case)

4.90kg (10.80lbs)

Warranty

10 years
