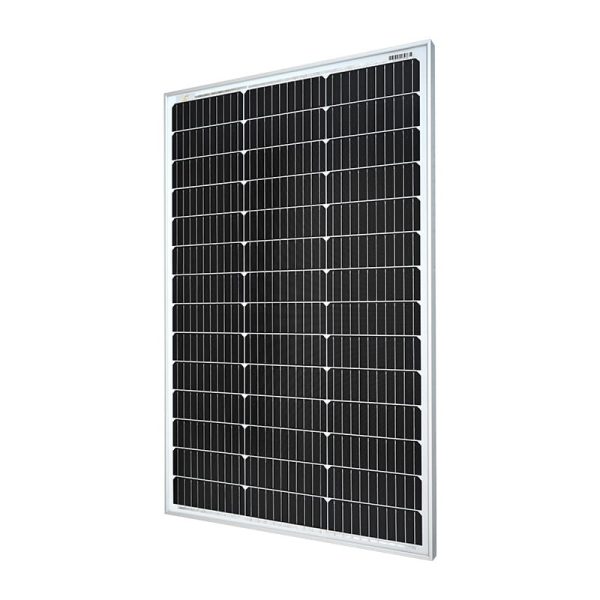

SGM2-135W

Sungold solar panel kit with battery and inverter SGM2-135W

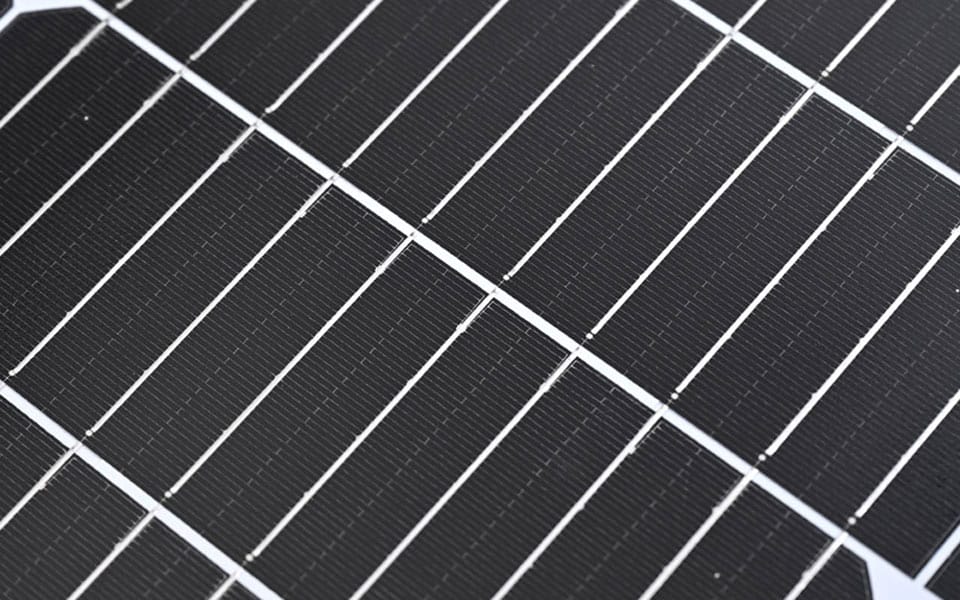

Sungold SGM2-135W solar rigid solar panels, on the 182 mm mono solar cell, take unique Half-cut cell technology, reduce interconnection losses, and bring higher efficiency. This solar kit is easy to install and virtually maintenance-free. An anodized aluminum frame and a sealed junction box make the solar PV module weatherproof for outdoor use.
Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouses, and LED lights.
make the most of every sunlight
Features
Durable & Strong
High Efficiency

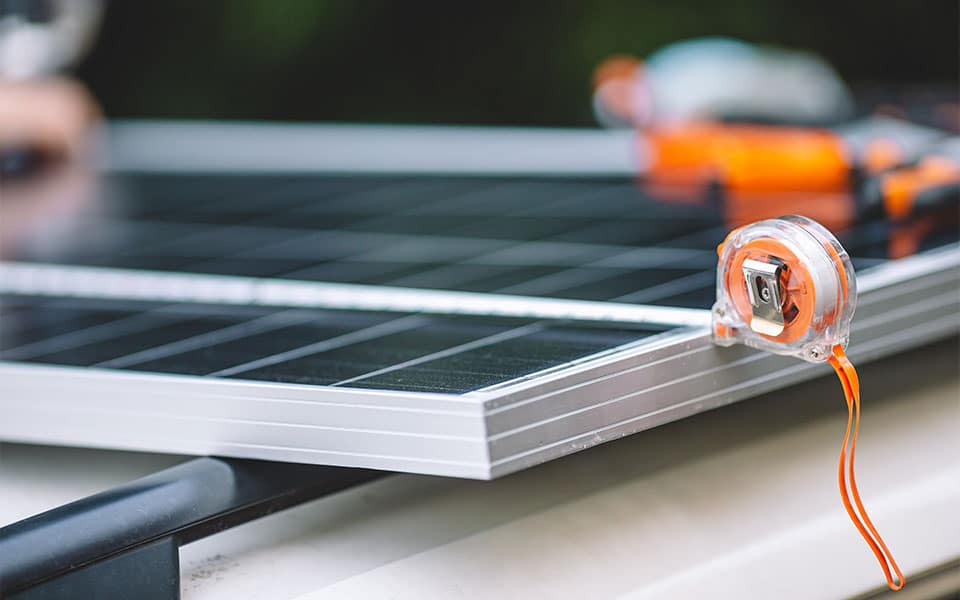

Mature

Versatile

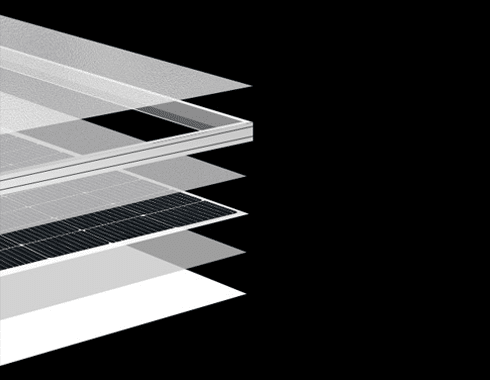

High Efficiency
Maximum power of 135w, efficiency of 22.70%. Monocrystalline solar panels have the highest efficiency ratings among all types of solar panels, meaning that they are able to convert more of the sun’s energy into electricity. which is higher than polycrystalline and thin-film panels.
Long Lifespan

10 years warranty, 25 years service life
Monocrystalline solar panels are designed to last for decades. With proper maintenance, they can easily last 25 years or more, which is longer than most other types of solar panels.

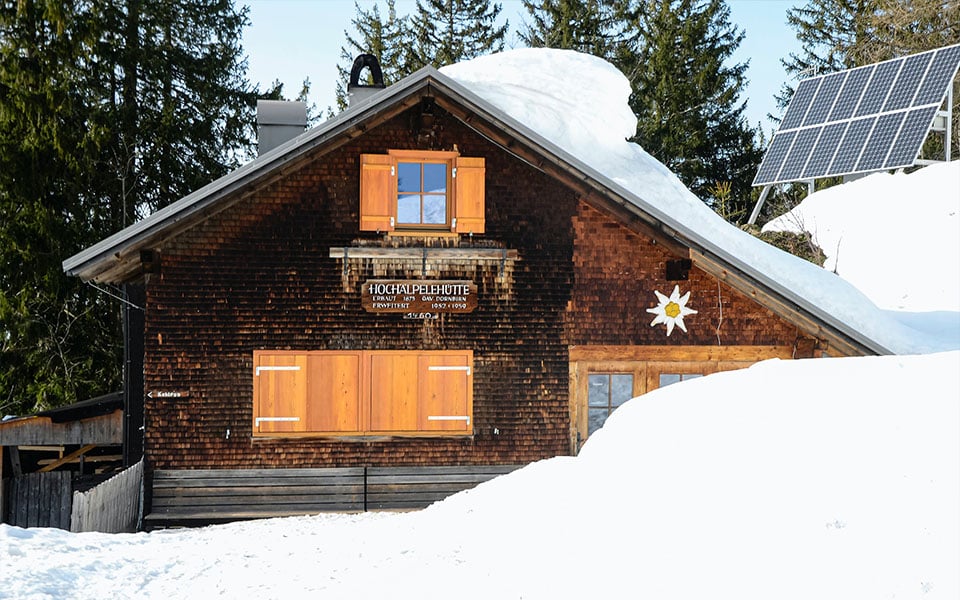

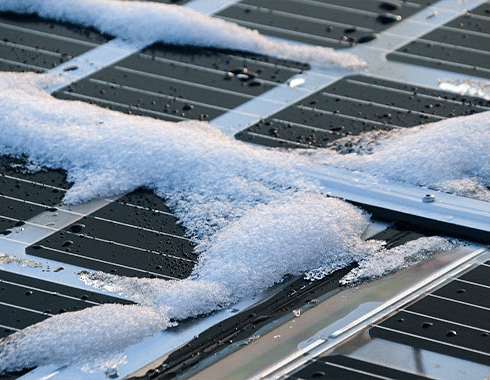

Durable & Strong
Stronger 40mm robust frame to hold 5400 Pa load Enhanced system reliability in extreme temperature environment with special cell level stress release technology Salt mist, ammonia and blowing sand resistance apply to seaside, farm and desert environment
Versatile

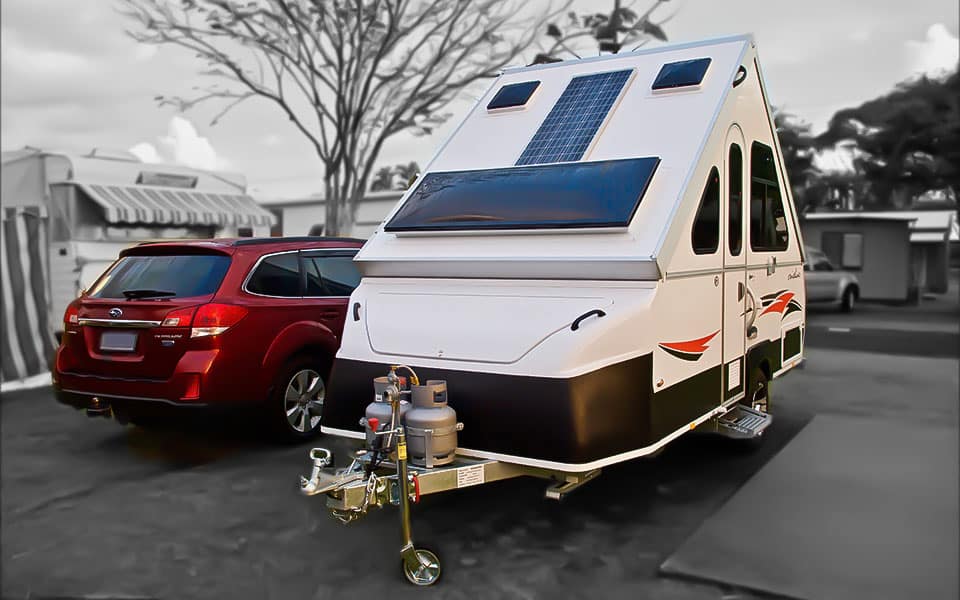

Use it for your RV when camping, or during beach trips with the family, either way this mono crystalline panel provides you with the most efficiency per space.

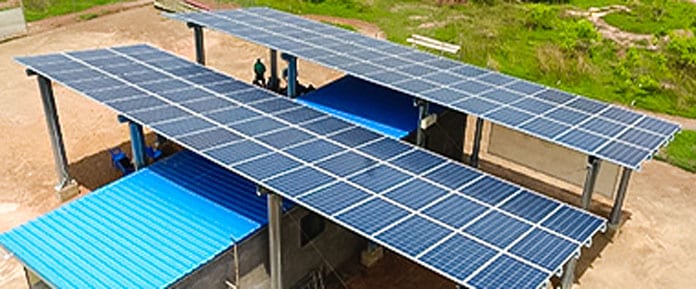

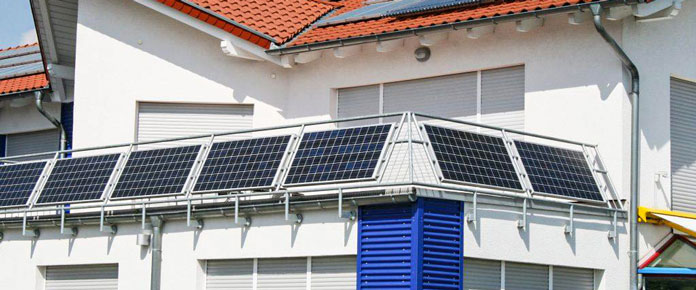

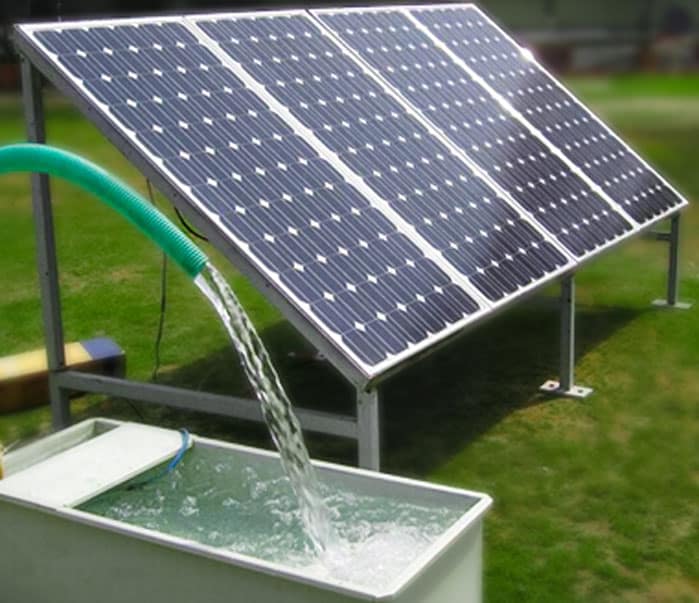

Applications

Yacht

Frequently Asked Questions
The output power of solar panels is mainly affected by light intensity, light angle, and shadow occlusion during the use of solar panels. Therefore, during daily use, the angle of illumination must be adjusted to prevent shadows, and the obstructions on the solar panel must be cleaned regularly, such as bird droppings, dust, and garbage. Such obstructions may cause the solar panel to not output at all.
yes, surely you can install on roof of your vehicle for charge the AGM car battery.
yes, we support two same solar module connect in parallel or series to increase the power, the system voltage is 1000V.
would recommend use this solar panel to charge the battery, and run your radio with the battery.
yes, you can, the USB power comes from the battery, and the controller will protect the battery from overcharging and overloading.
The solar panel uses tempered glass to protect the cells, naturally, falling acorns will not damage it.
Specifications

Maximum power(Pmax)

135W

Open-circuit voltage(Voc)

24.5V

Voltage at Pmax(Vmp)

20.9V

Short-circuit current(Isc)

6.78A

Current at Pmax(Imp)

6.46A

Cells efficiency(%)

22.70%

The maximum system voltage

1000V DC(IEC)

Power temperature coefficient

-0.42%/℃

Weight

7.7kg

Voltage temperature coefficient

-0.32%/℃

Current temperature coefficient

0.04%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

1165*590*35mm

Warranty

10 years
