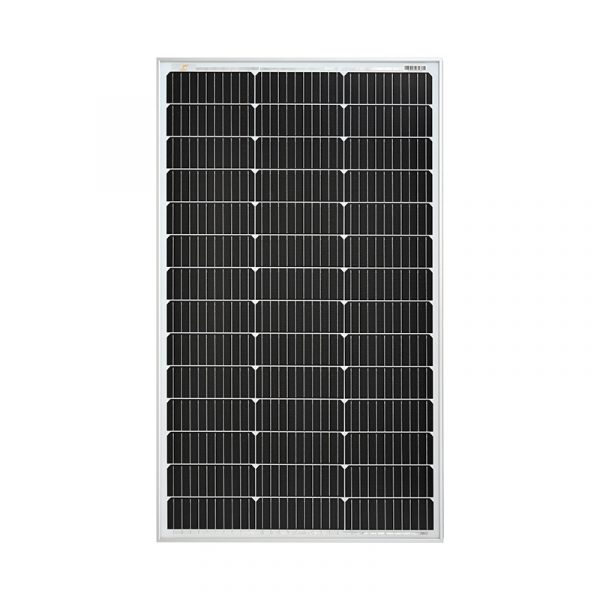

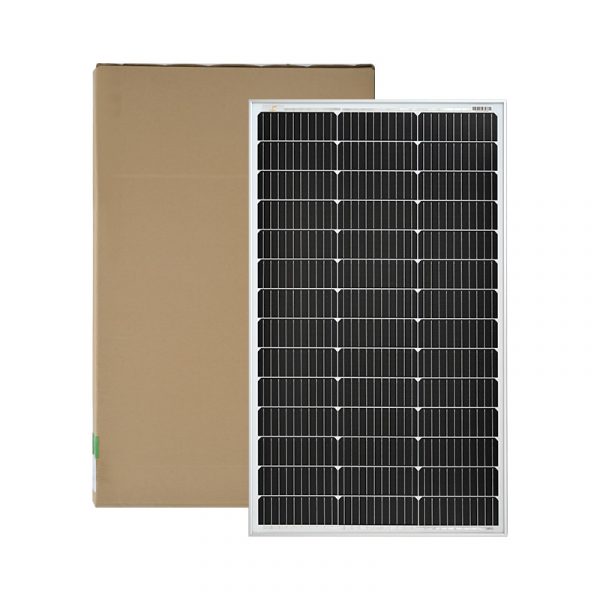

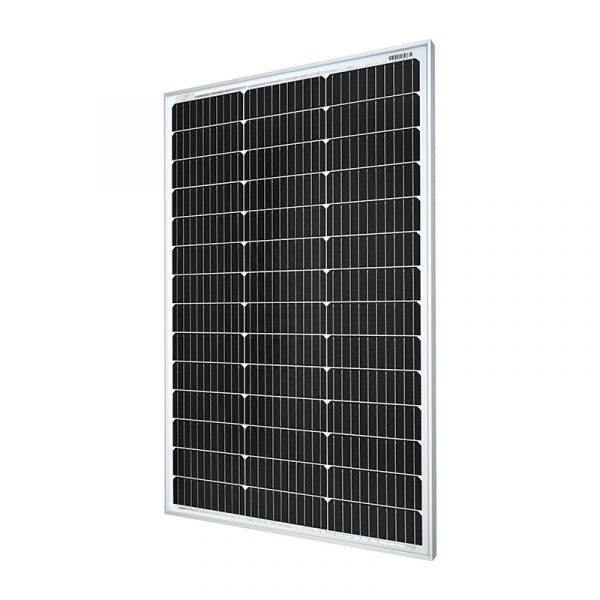

SGM2-150W

High-Efficiency 150 Watt Solar Panel | RV Solar Kit

Sungold SGM2-150W solar rigid panels featuring advanced Half-cut cell technology on 182mm mono solar cells for increased efficiency and reduced interconnection losses. This easy-to-install solar RV kit offers hassle-free maintenance, boasting an anodized aluminum frame and a sealed junction box for weatherproof outdoor use. Upgrade your RV with this high-performance 150W solar panel kit today.

Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouses, and LED lights.

make the most of every sunlight
Features
Durable & Strong
High Efficiency
Long-lasting Performance
Wide range of applications
High Efficiency

Unlock the full potential of solar energy with our cutting-edge 150W mono solar panel. Boasting an impressive 22.70% efficiency, this RV solar panel kit harnesses sunlight with unmatched precision, converting it into electricity at higher rates. Embrace the power of clean energy and enjoy the freedom of solar RV living. Upgrade to our top-of-the-line 150W solar panel.

Long-lasting Performance
10 years warranty, 25 years service life Long-lasting Performance: Single crystal solar panels have a longer lifespan than other types of solar panels, due to their robust material structure and high efficiency. This means they require less maintenance and replacement, which can save you money in the long run.
Durable & Strong

Stronger 40mm robust frame to hold 5400 Pa load
Enhanced system reliability in extreme temperature
an environment with special cell-level stress release
technology
Salt mist, ammonia, and blowing sand resistance apply
to the seaside, farm, and desert environment

Wide range of applications

Meet multiple scenarios: yacht / RV / roof/tent / outdoor camping/balcony, etc. Use it for your RV when camping, or during beach trips with the family, either way, this monocrystalline panel provides you with the most efficiency per space.

Applications

Balcony

Rooftop

Yacht

Frequently Asked Questions
The output power of solar panels is mainly affected by light intensity, light angle, and shadow occlusion during the use of solar panels. Therefore, during daily use, the angle of illumination must be adjusted to prevent shadows, and the obstructions on the solar panel must be cleaned regularly, such as bird droppings, dust, and garbage. Such obstructions may cause the solar panel to not output at all.
yes, surely you can install on roof of your vehicle for charge the AGM car battery.
yes, we support two same solar module connect in parallel or series to increase the power, the system voltage is 1000V.
would recommend use this solar panel to charge the battery, and run your radio with the battery.
yes, you can, the USB power comes from the battery, and the controller will protect the battery from overcharging and overloading.
The solar panel uses tempered glass to protect the cells, naturally, falling acorns will not damage it.
Specifications

Maximum power(Pmax)

150W

Open-circuit voltage(Voc)

27.1V

Voltage at Pmax(Vmp)

23.2V

Short-circuit current(Isc)

6.79A

Current at Pmax(Imp)

6.47A

Cells efficiency(%)

22.70%

The maximum system voltage

1000V DC(IEC)

Power temperature coefficient

-0.42%/℃

Weight

8.20kg

Voltage temperature coefficient

-0.32%/℃

Current temperature coefficient

0.04%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

1000*770*35mm

Warranty

10 years
