SGSP-150W

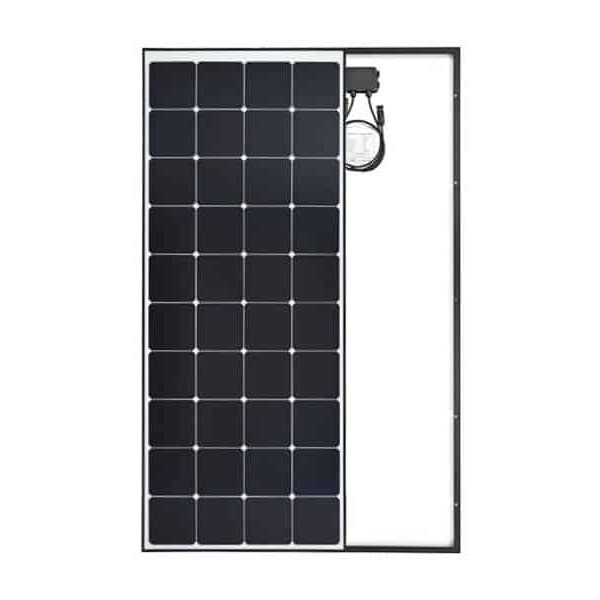

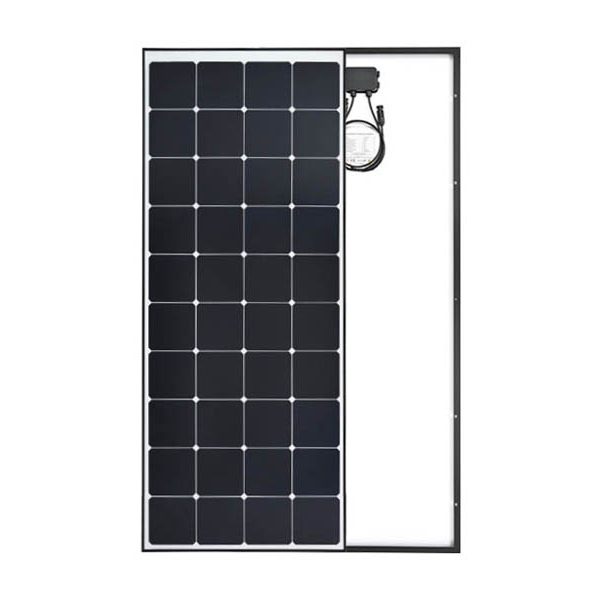

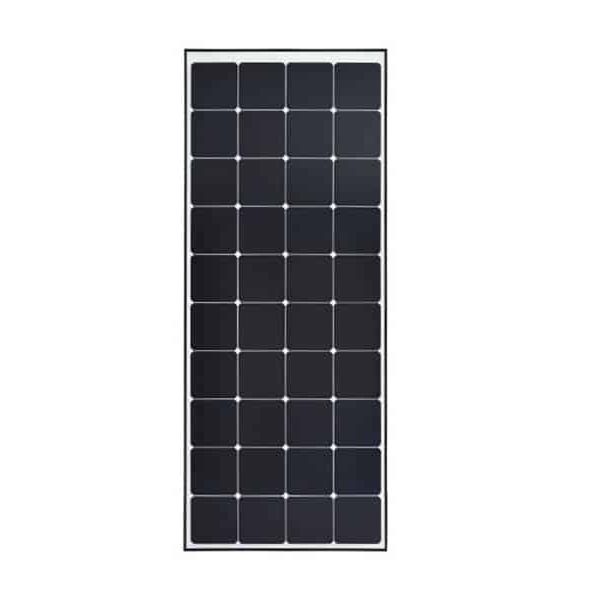

Sungold solar panels on flat roof SGSP-150W

SGSP series rigid solar panel uses the most mature product design, the overall product has been available for many years, has been tested for a long time environment, is the most stable design.
SGSP series solar panel made with high-efficiency SunPower solar cells. SunPower solar cell Classic IBC battery process used by SunPower. There is no grid line on the front of the battery to avoid the shading loss of the metal electrode, maximize the absorption of sunlight, and maximize the conversion efficiency. The conversion efficiency is up to 24.40%

SGSP series solar panel meets different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

make the most of every sunlight
Features
High performance cells
Easy to connect and install
Durable
Versatile
High performance cells
Sunpower cells are 20-30% more efficient than monocrystalline cells and have the added benefit of being extremely reliable (SunPower photovoltaic cells hold the world record for energy production). For example, sunpower photovoltaic cells have been selected to power the Solar Impulse solar aircraft.
Easy to connect and install
A perfectly waterproof MC4 connector is available at the output of the solar panel to ensure the electricity connection. The sturdy aluminium frame can be drilled to secure it to the boat.
Durable

The corrosion-resistant aluminum frame allows extended outdoor use. The SGSP series 150w fixed solar panel can last for decades.

Waterproof

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance. IP67-rated junction box provides complete protection against environmental particles and protection from low-pressure water flow.

Applications

RV

Home

Yacht

Frequently Asked Questions
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP solar glass panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Specifications

Maximum power(Pmax)

150W

Open-circuit voltage(Voc)

29.2V

Voltage at Pmax(Vmp)

24.8V

Short-circuit current(Isc)

6.41A

Current at Pmax(Imp)

6.05A

Cells efficiency(%)

24.40%

The maximum system voltage

1000V DC(IEC)

Power temperature coefficient

-0.27%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

1315*540*35mm

Weight (with Kickstand Case)

7.95kg (17.53lbs)

Warranty

10 years
