SGSP-65W

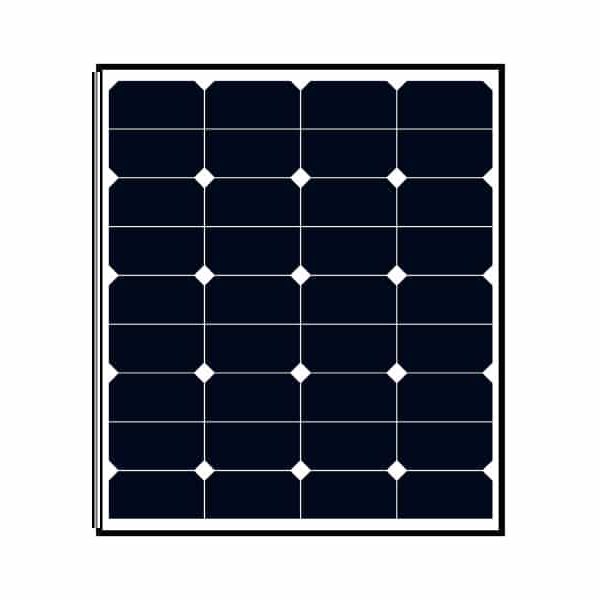

Sungold solar panels by the pallet SGSP-65W

SGSP series solar rigid panel uses the most mature product design, the overall product has been available for many years, has been tested for a long time environment, and is the most stable design.
SGSP series is made with high-efficiency SunPower solar cells. SunPower solar cell Classic IBC battery process used by SunPower. There is no grid line on the front of the battery to avoid the shading loss of the metal electrode, maximize the absorption of sunlight, and maximize the conversion efficiency. The conversion efficiency is up to 24.40%

SGSP series meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

make the most of every sunlight
Features
High performance cells
Easy to connect and install
Durable
Versatile
High performance cells
Conversion rate of 24.4% with Sunpower cells SunPower has been the global record holder for high efficiency solar cells and its production technology is one of the methods that must be studied by various experimental units around the world. With higher conversion efficiency
Easy to connect and install
A perfectly waterproof MC4 connector is available at the output of the solar panel to ensure the electricity connection. The sturdy aluminium frame can be drilled to secure it to the boat.
Durable

SGSP solar glass panel is the most mature design, the connection between the glass panel and the aluminum frame is encapsulated with solar silicone, which will not let any water vapor in, so you can put the product to work outdoors for a long time without worrying about any quality problems.

Versatile

Ideal for a variety of applications
Use it in your RV while camping or on a trip to the beach with the family – either way, this panel gives you maximum efficiency in every space.
Use it in your RV while camping or on a trip to the beach with the family – either way, this panel gives you maximum efficiency in every space.

Applications

RV

Home

Yacht

Frequently Asked Questions
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP solar glass panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Specifications

Maximum power(Pmax)

65W

Open-circuit voltage(Voc)

26.2V

Voltage at Pmax(Vmp)

22.3V

Short-circuit current(Isc)

3.09A

Current at Pmax(Imp)

2.92A

Cells efficiency(%)

24.40%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.27%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

625*540*25mm

Weight

3.76kg

Warranty

10 years
