SG-TF-D-150W

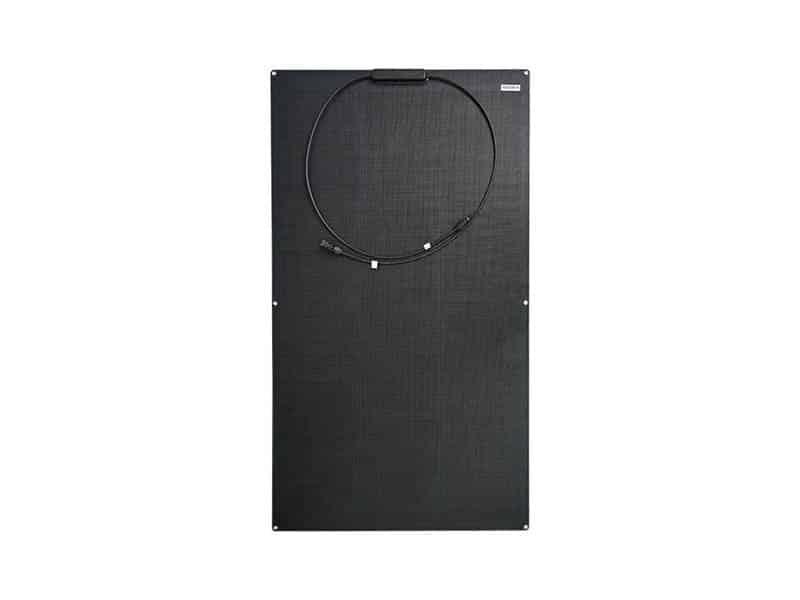

Sungold 150 watt solar panel TF-D-150W

Polymer composite material / 5 years warranty/strong impact resistance

The 150 watt solar panel utilizes PERC shingle cells with a high conversion efficiency of up to 22%, making it an excellent choice for RV living. Its strong impact resistance capabilities ensure that the battery remains protected at all times.

Moreover, the panel is highly flexible, thanks to its ETFE surface material. This material offers exceptional resistance to weather, salt spray, corrosion, and aging, making the panel highly durable and long-lasting.
make the most of every sunlight
Features
Exclusive Patented Material
Lighter And Thinner
Easy To Use
High Conversion And Corrosion Resistance
Exclusive Patented Material
TF-D-150w use an organic polymer composite to replace the typical glass front sheet as a laminant. The polymer composite material used is extremely durable, capable of withstanding extreme temperatures and climate conditions.
Ultra light and thin, more flexible
The TF Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.
5 years warranty
TF-D-150w solar flexible panel products have passed rigorous trampling and hail resistance tests conducted by the company. These tests have verified the protection and stability of the product, providing confidence in its reliability. Furthermore, the addition of a newly patented material has proven to be highly effective in protecting the battery sheet. These successful tests have laid a solid foundation for the 5-year warranty that comes with the product.
Shingled PERC technology
Shingled-cell technology eliminates cell spacing by overlapping small cells, allowing for more cells to be packaged in the same module area, resulting in a direct increase in module power. Shingled modules are capable of producing more electricity in it
Applications

RV

Home

Yacht

Frequently Asked Questions

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

TF-D-150W flexible solar panel adopts shingled-cell welding technology. Compared with ordinary PV modules, shingled-cell modules have higher conversion efficiency and stronger resistance to hot spot effects.

This 150W flex solar panel is suitable for off-grid applications such as RVs and yachts. It can also be installed on balconies to provide power to your home.

The output efficiency of a solar panel may not be ideal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy sky, and accumulation of dirt and smudges on the surface of the solar panels, can result in reduced efficiency.

Specifications

Maximum power(Pmax)

150W

Open-circuit voltage(Voc)

22.2V

Voltage at Pmax(Vmp)

18.8V

Short-circuit current(Isc)

8.46A

Current at Pmax(Imp)

7.98A

Cells efficiency(%)

22.0%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

2.44kg

Size

1180*680*3mm

Warranty

6 years
