SG-TF-S-165W

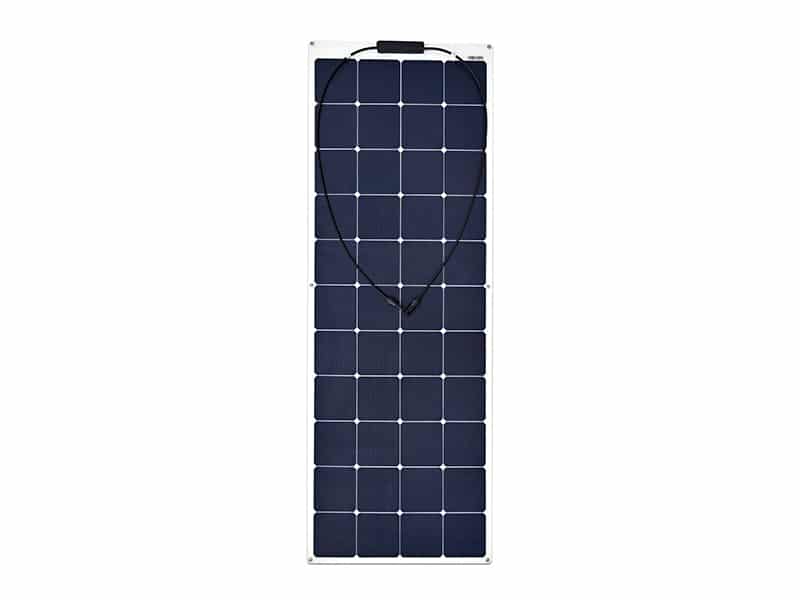

Sungold 165 watt solar panel TF-S-165W

Polymer composite material /SunPower solar cells/5 years warranty
Product Features:
  • Uses Sundold’s patented materials, providing better cell protection and shock absorption
  • Has excellent flexibility
  • Uses ETFE surface material, with excellent weather resistance, salt spray resistance, corrosion resistance, and aging resistance.
  • make the most of every sunlight
    Features
    Exclusive Patented Material
    Lighter And Thinner
    Easy To Use
    High Conversion And Corrosion Resistance
    Exclusive Patented Material
    The TF-S-165W marine flexible solar panel features Sungold’s proprietary patented material combined with SunPower solar cells to create an outstanding product. This exclusive material significantly improves weather resistance, salt spray resistance, corrosion resistance, and anti-aging properties, providing superior protection for the solar cells. Additionally, the material enhances the absorption of impact force, thereby minimizing damage to the solar cells.
    Lighter And Thinner
    TF-S-165W flexible solar panel is very light and thin, weighing only2.84kg with a thickness of only 2mm. It is very suitable for installation on RVs or in marine environments, and has flexibility and portability.
    Light weight and easy to use
    The flexible solar panels utilize back-contact SunPower cells, which have a maximum power output of 90W and an efficiency rating of up to 22.4% to 24%. These panels demonstrate excellent performance in low-light conditions, ensuring that they can still provide adequate power support for you even during such conditions.
    High Conversion And Corrosion Resistance
    The TF-S-165W flexible solar panel employs SunPower cells with a remarkable conversion efficiency of up to 24.4%. These panels are designed to operate within an ambient temperature range of -40℃ to +85℃, delivering a stable output that remains consistent over time. These panels are backed by a 5-year warranty and boast a service life of 20 years. Their durability and stable output enable them to maintain excellent performance even in adverse weather conditions.
    Applications

    RV

    Home

    Yacht

    Frequently Asked Questions

    Yes. It’s just that the power generation efficiency of solar panels will be reduced.

    Yes. TF series flexible solar panel is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.

    This 120W flex solar panel is suitable for RVs, vans, caravans and yachts. It can also be installed on balcony to provide power to your home

    TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

    5 years warranty. TF series flexible solar panels have service life of 20 years.

    Specifications

    Maximum power(Pmax)

    165W

    Open-circuit voltage(Voc)

    32.1V

    Voltage at Pmax(Vmp)

    27.3V

    Short-circuit current(Isc)

    6.41A

    Current at Pmax(Imp)

    6.05A

    Cells efficiency(%)

    24.40%

    The maximum system voltage

    200V DC(IEC)

    Power temperature coefficient

    -0.270%/℃

    Voltage temperature coefficient

    -0.236%/℃

    Current temperature coefficient

    +0.058%/℃

    Output power tolerance

    ±3%

    Operating temperature

    -40~85℃

    Weight

    2.84kg

    Dimensions

    1460*540*3mm

    Warranty

    5 years
