Sungold 120w Solar Panel SGM2-120W

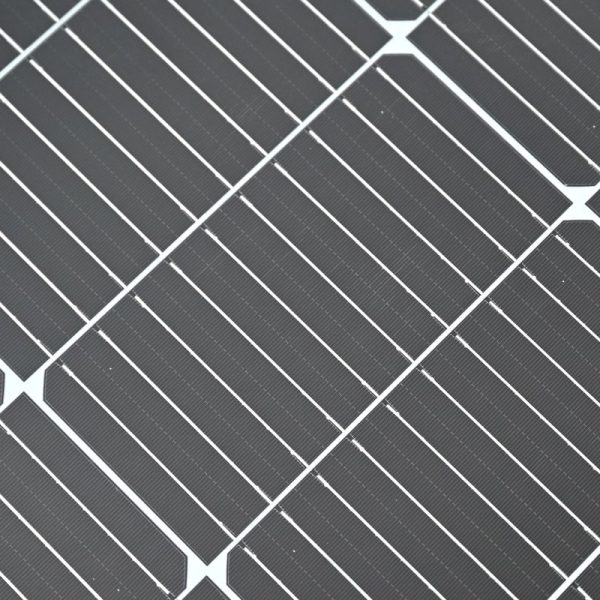

Upgrade your RV’s energy game with the Sungold SGM-120W solar panel kit, featuring cutting-edge 182 mm mono solar cells with unique Half-cut cell technology. This innovative technology reduces interconnection losses and boosts overall efficiency, ensuring you get the most power from the sun.

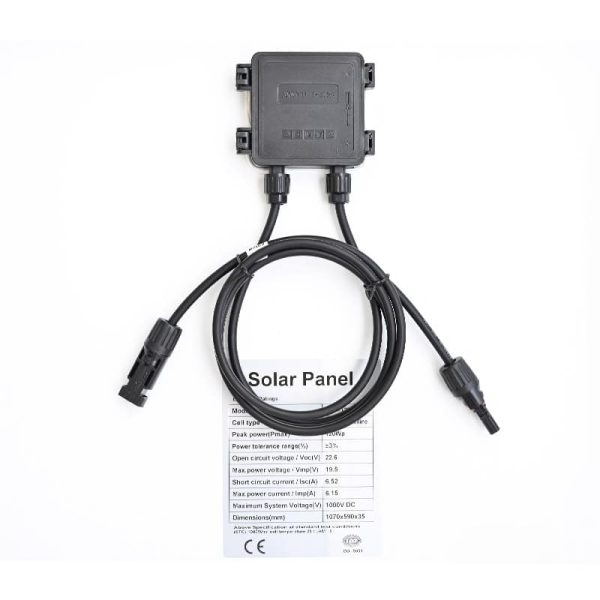

The installation process is a breeze, making it perfect for RV enthusiasts of all levels. With its anodized aluminum frame and sealed junction box, the solar PV module is designed to withstand the elements, making it weatherproof and ideal for outdoor use.
Embrace hassle-free adventures with this virtually maintenance-free solar kit, which provides a reliable source of green energy. Say goodbye to noisy generators and hello to a more sustainable and peaceful camping experience.
Unlock the potential of solar energy on your RV journeys with Sungold SGM-120W RV solar kit. Harness the power of the sun and embark on eco-friendly travels while enjoying the convenience of this high-performance, weather-resistant solar solution. Invest in a brighter and greener future for your RV today.
SGM series solar rv module uses the most mature product design. The overall product has been available for many years and has been tested for a long time environment, which is the most stable design.
Stronger 40mm robust frame to hold 5400 Pa load.
Enhanced system reliability in extreme temperatures. An environment with special cell level stress release technology. Salt mist, ammonia, and blowing sand resistance apply to seaside, farm, and desert environments.
Use rigid solar panels for RV camping or during beach trips with the family, either way this mono crystalline panel provides you with the most efficiency per space.
Yacht
Maximum power(Pmax)
120W
Open-circuit voltage(Voc)
22.3V
Voltage at Pmax(Vmp)
19.1V
Short-circuit current(Isc)
6.60A
Current at Pmax(Imp)
6.29A
Cells efficiency(%)
22.70%
The maximum system voltage
1000V DC(IEC)
Power temperature coefficient
-0.38%/℃
Voltage temperature coefficient
-0.36%/℃
Current temperature coefficient
0.07%/℃
Output power tolerance
±3%
Operating temperature
-40~85℃
Weight
6.90kg
Size
1090*590*35mm
Warranty
10 years
