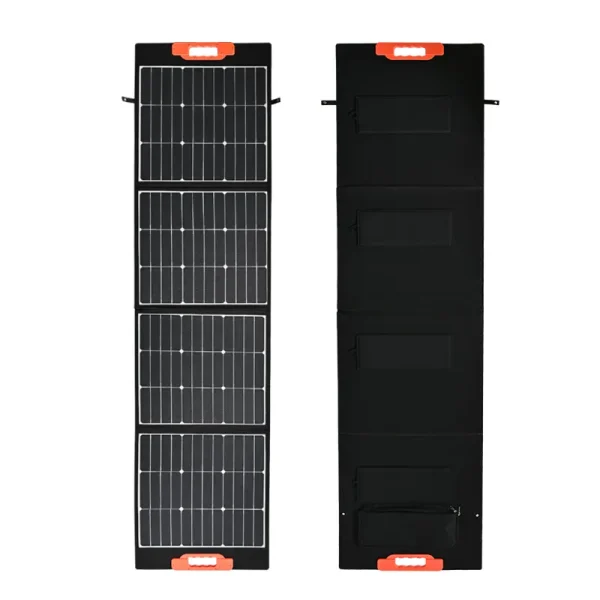

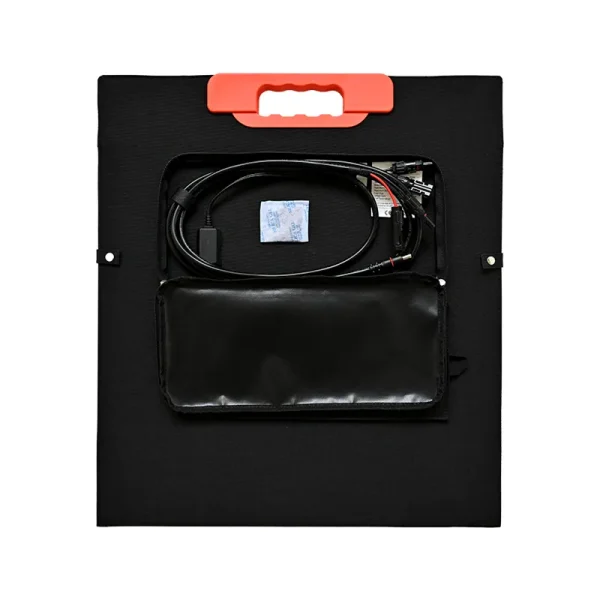

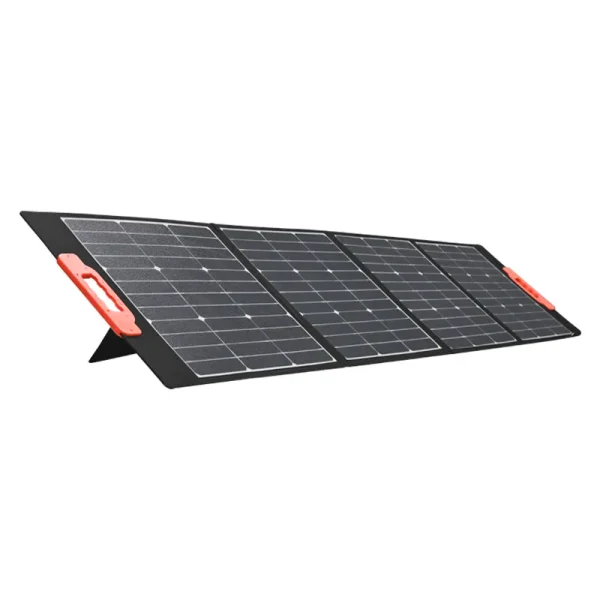

Sungold 200w Solar Panel SGWB2-TF-S-200W

The 200W solar panel boasts a solar conversion efficiency of up to 24.3%, allowing for quick adoption of green and environmentally friendly energy. Its ETFE laminated shell extends its lifespan, and the recommended angle ensures optimal sunlight absorption, making it the perfect power source for outdoor excursions and household backups.
It’s portable, foldable, and can be connected to a power station immediately, creating an ideal solar power system.
make the most of every
Edit Content
Lightweight and Portable
Using ETFE Supface Material

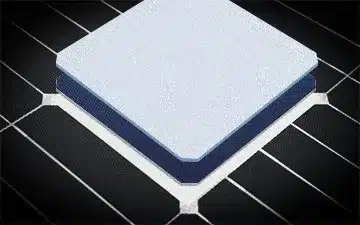

perc shingled-cells

perc shingled-cells

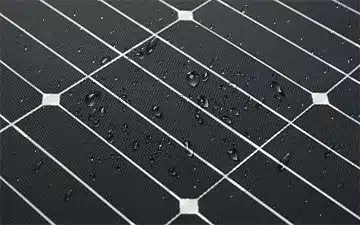

folding and portable
folding and portable

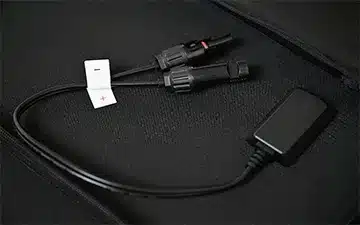

ip65 waterpoof rating
IP65 waterproof rating

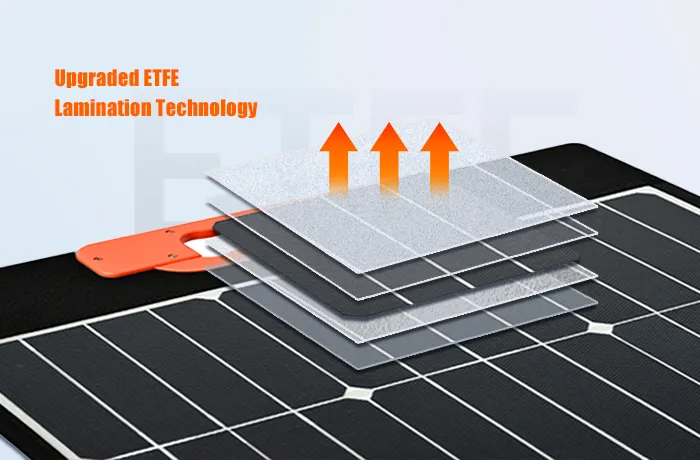

Upgraded ETFE Lamination Technology
The Sungold 200W solar panel features upgraded ETFE lamination technology and is crafted with high-quality 840D Oxford cloth exterior, offering a waterproof protective design that is durable and abrasion-resistant.
Employing integrated ETFE lamination shell technology, it provides dust and dirt resistance while achieving an IP67 waterproof rating, ensuring the product remains undamaged in harsh conditions, resulting in a long-lasting and durable product.
Upgraded ETFE Lamination Technology

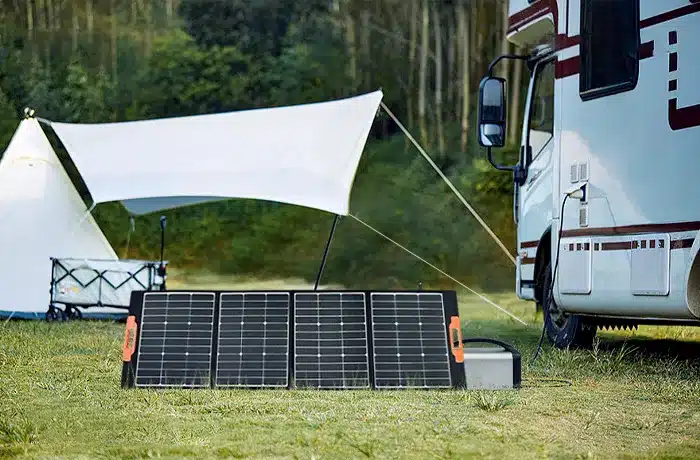

Wide Compatibility
Wide Compatibility
The 200W 12V Sunpower portable solar panel is equipped with MC4 connectors, making it compatible with various energy storage brands available in the market. To connect to different power stations, separate converters may be required.
It offers fast charging speeds and supports the parallel or serial connection of multiple solar panels, providing a faster charging rate for the power station. It’s particularly well-suited for portable power stations such as Jackery, BLUTTI, Anker, EF ECOFLOW, and many others.

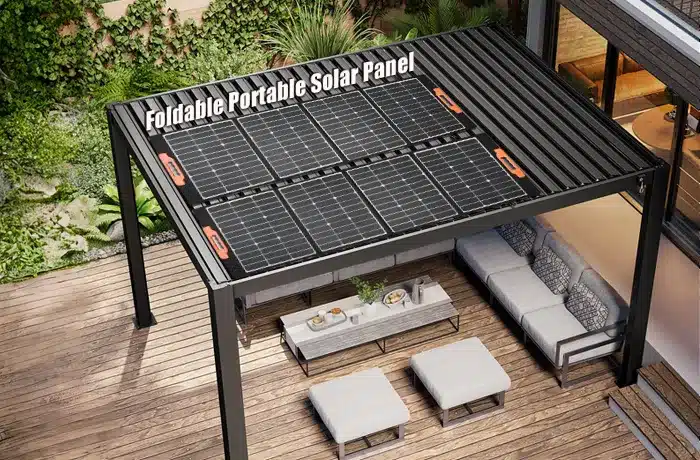

Foldable Portable Solar Panel
The portable solar panel is not only lightweight but also highly compact, with foldable dimensions of 630x565x32mm. Its ergonomic handle design offers maximum convenience. It also provides DIY installation options, such as for RVs, marine applications, and more.
High Battery Efficiency - Up to 23.5%
Foldable Portable Solar Panel
High Battery Efficiency – Up to 23.5%
The 200W solar panel, featuring SunPower solar cells, boasts a high conversion efficiency of up to 24.4%, significantly higher than the average monocrystalline silicon panels with an efficiency of 22.62%. It provides much greater efficiency, offering more power for your outdoor activities.

Mobile Solar Folding Panels for On-the-Go Power

With our portable mobile solar folding panels, you can have power even while you’re on the move. Just unfold it, and the solar system is ready to go. Whether it’s camping, RVing, van life, or outdoor adventures, our mobile solar systems and solar boxes are a smart, self-sufficient power solution.
Mobile Solar Folding Panels for On-the-Go Power

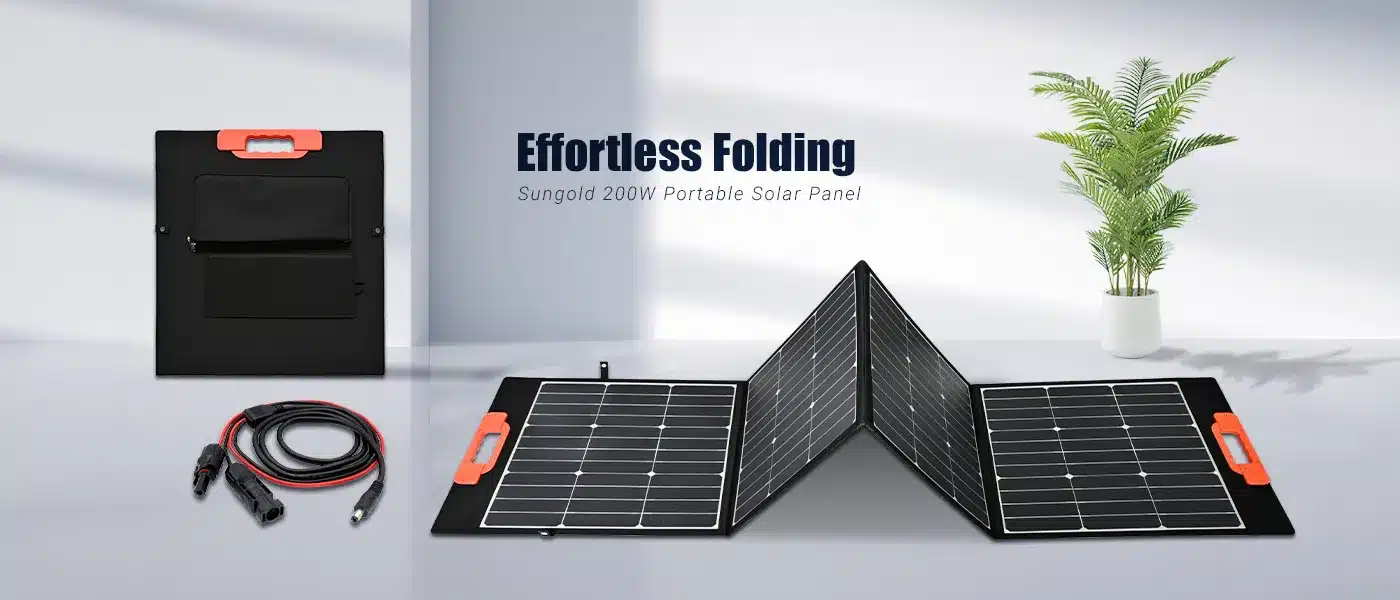

Effortless Folding

The solar panel has a maximum power output of 200W and utilizes monocrystalline solar cells with a high efficiency of up to 23% (high conversion efficiency). The efficiency of the charging process for connecting batteries depends on the intensity of sunlight. The charge conversion of the solar panel is influenced by factors such as the angle of direct sunlight, temperature, weather conditions, and charging duration. Always orient the front side of the solar panel towards the sun to achieve maximum efficiency.
Effortless Folding

With 200W Solar Panels and 1000kWh Kit

We highly recommend our top-tier product, the 1000kWh kit (featuring 200W solar panels). This kit includes a solar box and a portable energy storage, making it ideal for use in RVs or campervans. With an output power of 200 watts and a capacity of 1000 watt-hours, it provides ample energy for coffee makers, laptops, or other electronic devices. The kit is easy to transport and can be placed anywhere.
With 200W Solar Panels and 1000kWh Kit
Edit Content

Maximum power(Pmax)

200w

Open-circuit voltage(Voc)

25.9V

Voltage at Pmax(Vmp)

20.9V

Short-circuit current(Isc)

10.4A

Current at Pmax(Imp)

9.57A

Cells efficiency(%)

22.00%

The maximum system voltage

100V DC(IEC)

Power temperature coefficient

-0.29%/℃

Voltage temperature coefficient

-0.239%/℃

Current temperature coefficient

0.057%/℃

Output power tolerance

±3%

Operating temperature

-10~60℃

Folding Size

630*565*32mm

Unfold Size

2380*565*16mm

Warranty

1 year
