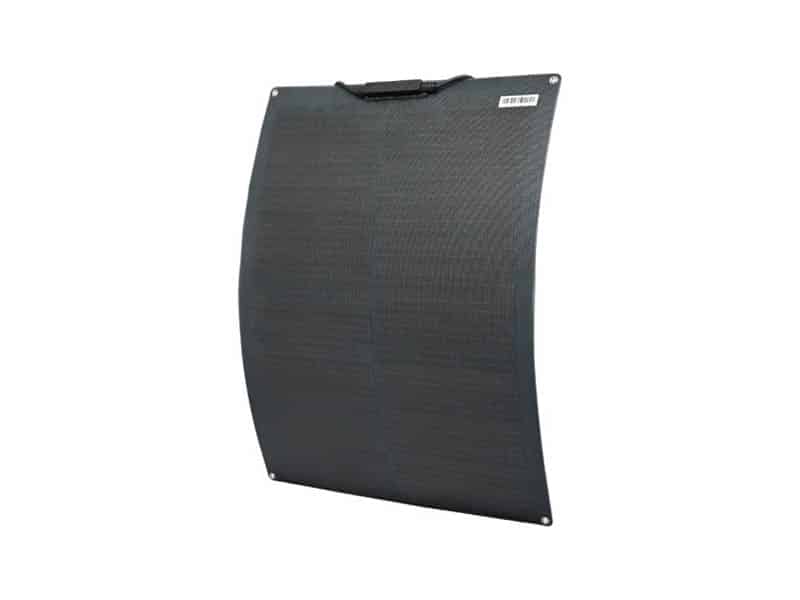

Sungold Flexible Solar Panels For RV SG-TF-D-50W

The 50 watt solar panel Flexible Solar Panels For RV are designed with PERC shingled cells boasting a high conversion efficiency of up to 22%, making it an excellent option for RV life. This design enhances absorption while minimizing cell damage.
Moreover, the TF-D-50W flexible solar panel features excellent flexibility, thanks to its ETFE surface material, which provides exceptional resistance to weather, salt spray, corrosion, and aging, making it highly durable and long-lasting.
make the most of every sunlight
Edit Content
Exclusive Patented Material
Lighter And Thinner
Easy To Use
SHINGLE TECHNOLOGY
Higher Power

Maximum power of 50w, efficiency of 22%.PERC shingled cell technology to increase the effective light receiving area, higher power

Ultra light and thin, more flexible

The TF Series Flexible Solar Panels For RV boasts a slim profile, measuring only 2mm thick. It uses a patented material developed by Sungold that enables the panels to bend more while effectively protecting the cells. This design makes the solar panel highly flexible, allowing it to fit many curves and conform to various unique shapes.

Easy To Use

TF-D-50W flexible solar module has excellent design and complete power, so there is no need to make complicated connections. MC4 is a mature and safe connecting line. With a Y-shaped connecting line, multiple panels can be easily connected in series and parallel.

Shingled technology
Shingled-cell technology eliminates cell spacing by overlapping small cells, which enables more cells to be packaged in the same module area, resulting in a direct increase in module power. Shingled modules are capable of producing more electricity in the same amount of time, making them a more efficient and effective option for solar panel technology.

What kind of power does a 50 watt solar panel provide?

Solar panels are suitable for a variety of occasions. While many people want a solar panel that can generate enough power to run most of the appliances in their home, sometimes all you need is a solar panel that can run the essentials.
This is where a 50 watt solar panel comes into play, as it is perfect for solar and outdoor enthusiasts who want to carry power with them.
What kind of power does a 50 watt solar panel provide

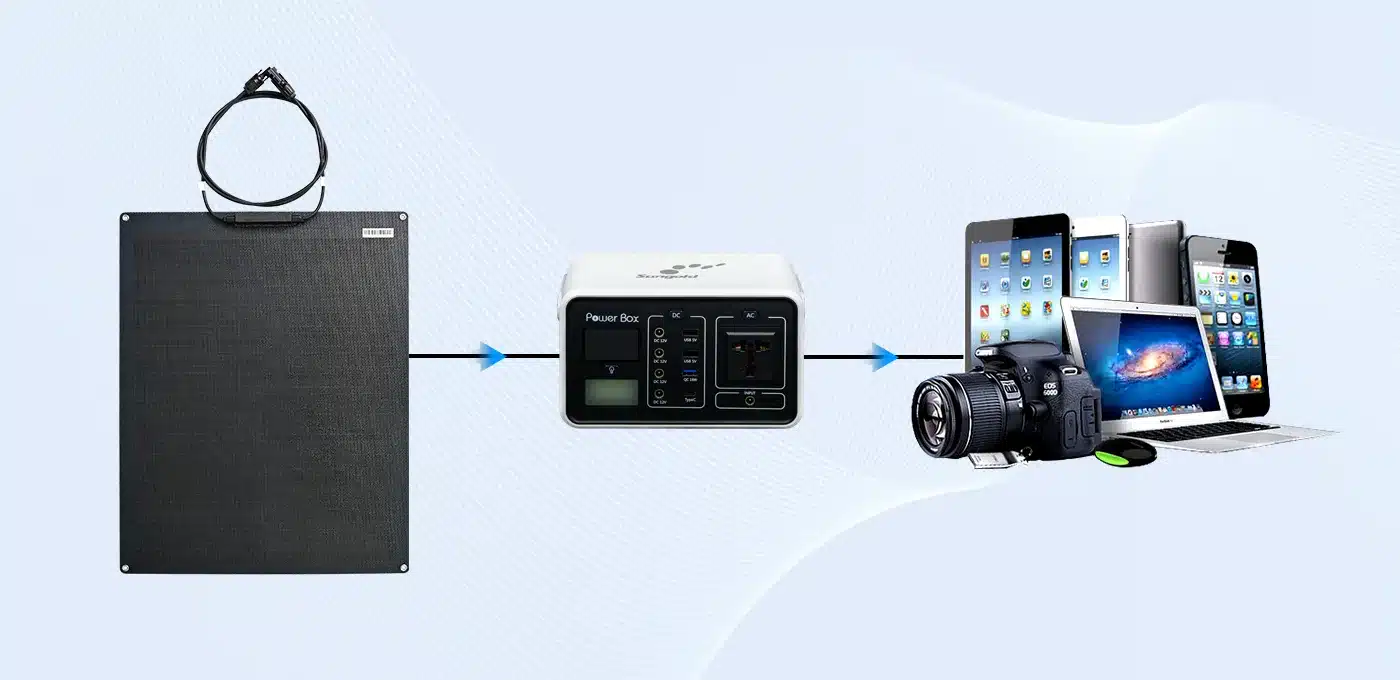

Benefits of 50 watt solar panel

The 50 watt solar panel is one of the smaller solar panels on the market, but it can still provide enough energy to run certain appliances and devices.
Due to its size, the 50 watt solar panel is perfect for charging small USB devices such as batteries and fans.
The panel can also charge other small electronic devices, such as smartphones. This is useful when you’re out camping for the weekend and need your smartphone in an emergency.
Benefits of 50 watt solar panel

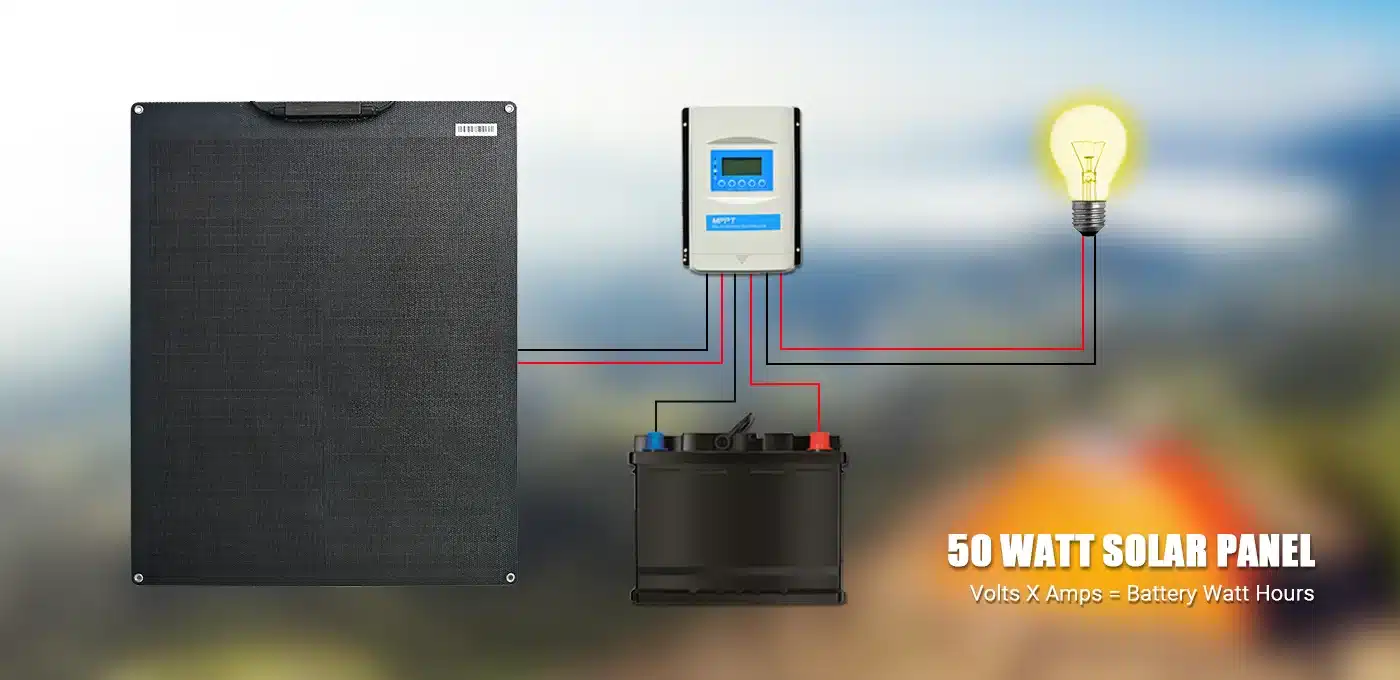

How long does it take to charge a 12V battery?

We know that combining a 50 watt solar panel with a 30 amp hour battery is the ideal running combination because the panel can generate enough power to charge.
Now the question that remains is how long it takes to charge. The answer comes in the form of a small equation, and it’s easy for us to understand it.
Volts ✕ Amps = Battery Watt Hours. “Battery watt-hours” is the amount of time it takes to charge. Here we have a 12V, 30Ah battery and a 50 watt solar panel. the equation looks like this:
12 ✕ 30 = 360 watts          360 / 50 = 7.2h
So for a 50 watt solar panel, ideally, it would take about 7 hours to fully charge the battery from zero.
How long does it take to charge a 12V battery

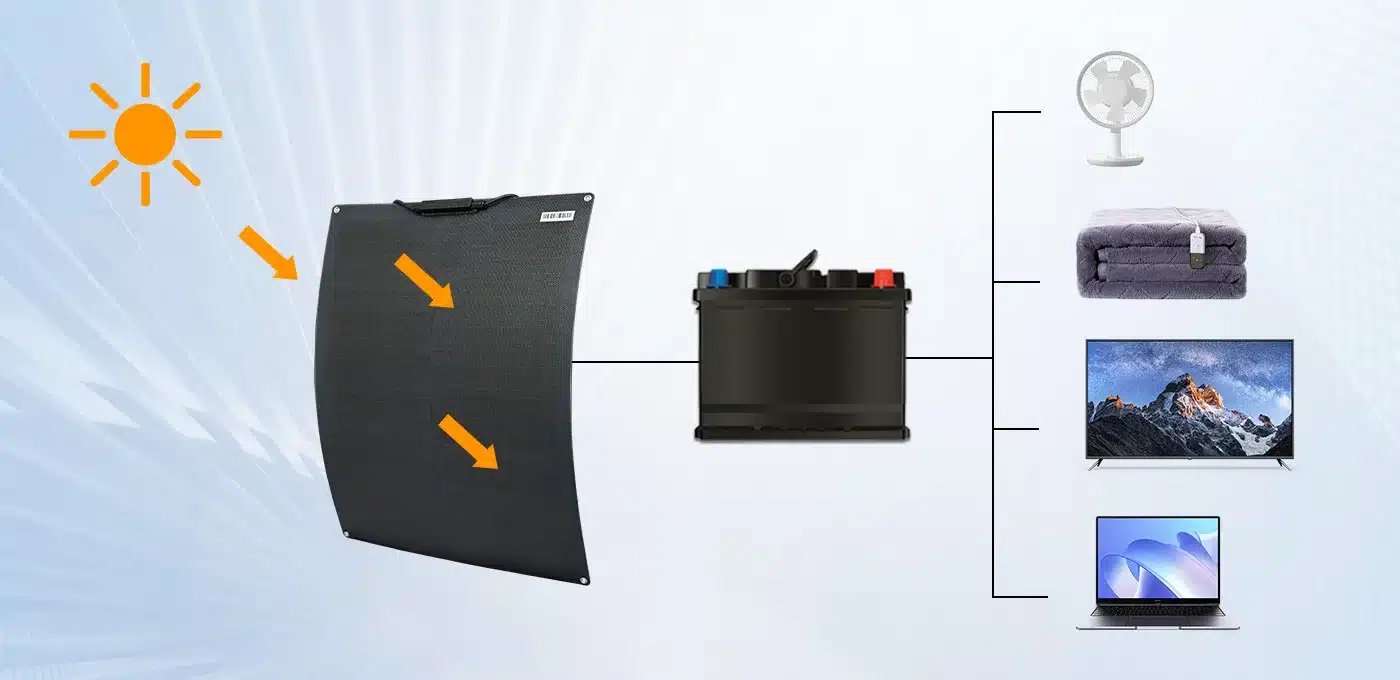

How much power does a 50 watt solar panel and a 30Ah battery provide?

We know that combining a 50 watt solar panel with a 30 amp hour battery is the ideal running combination because the panel can generate enough power to charge.
Now the question that remains is how long it takes to charge. The answer comes in the form of a small equation, and it’s easy for us to understand it.
Volts ✕ Amps = Battery Watt Hours. “Battery watt-hours” is the amount of time it takes to charge. Here we have a 12V, 30Ah battery and a 50 watt solar panel. the equation looks like this:
12 ✕ 30 = 360 watts          360 / 50 = 7.2h
So for a 50 watt solar panel, ideally, it would take about 7 hours to fully charge the battery from zero.
How much power does a 50 watt solar panel and a 30Ah battery provide

SG-TF-D 50 watt solar panel: emergency equipment solutions

One of the outstanding features of the SG-TF-D 50 watt solar panel is its flexibility. Unlike traditional rigid panels, solar panels are designed to bend and adapt to a variety of surfaces. This flexibility makes it ideal for unconventional mounting locations, such as curved RV roofs, boat decks, or backpacks. You can easily attach it to your favorite outdoor gear.The SG-TF-D 50 watt solar panel weighs a fraction of its traditional counterpart and is extremely lightweight.
In short, the SG-TF-D 50 watt solar panel is your solar solution for emergencies. With its robust performance, flexibility and durability, it is designed to enhance your outdoor experience and provide reliable energy. By choosing this solar panel, you’re not only investing in your adventure, but in a sustainable, environmentally friendly future.
Stay powered, stay connected and stay in control with Sungold’s SG-TF-D watt solar panel. Wherever your journey takes you, let the sun light your way.
SG-TF-D 50 watt solar panel-emergency equipment solutions
Edit Content

Maximum power(Pmax)

50W

Open-circuit voltage(Voc)

21.5V

Voltage at Pmax(Vmp)

18.2V

Short-circuit current(Isc)

2.91A

Current at Pmax(Imp)

2.75A

Cells efficiency(%)

22.0%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

0.96kg

Size

600*470*3mm

Warranty

6 years

Edit Content

RV

Home

Yacht

Edit Content
TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.
TF-D-50W flexible solar panel adopts shingled-cell welding technology. Compared with ordinary PV modules, shingled-cell modules have higher conversion efficiency and stronger resistance to hot spot effects.
This 50W flexible solar panel is suitable for off-grid applications such as RVs and yachts. It can also be installed on balconies to provide power to your home.
The output efficiency of a solar panel may not be ideal for a number of reasons. The most common environmental conditions, such as the angle of direct sunlight, cloudy sky, and accumulation of dirt and smudges on the surface of the solar panels, can result in reduced efficiency.
