Sungold Solar Panels Flexible SG-TF-D2-120W

5-year warranty / highly durable / high quality materials
The flexible solar panel 120 watt uses PERC shingled solar cells with a conversion efficiency of 22.7%, making it ideal for RV living. The panel is highly impact resistant and can effectively protect the cells.
In addition, the solar panel 120 watt is very flexible thanks to the ETFE surface material. This material is durable due to its excellent resistance to weathering, salt spray, corrosion and aging.
make the most of every sunlight
Edit Content
Patented material
Lightweight and flexible
Easy to use
Shingled technology
Patented material
This flexible solar panel 120 watt is made of Sungold proprietary material. This material can effectively improve the performance of the panel. The panel’s impact resistance is enhanced, and damage to the battery is reduced.
Lightweight and flexible

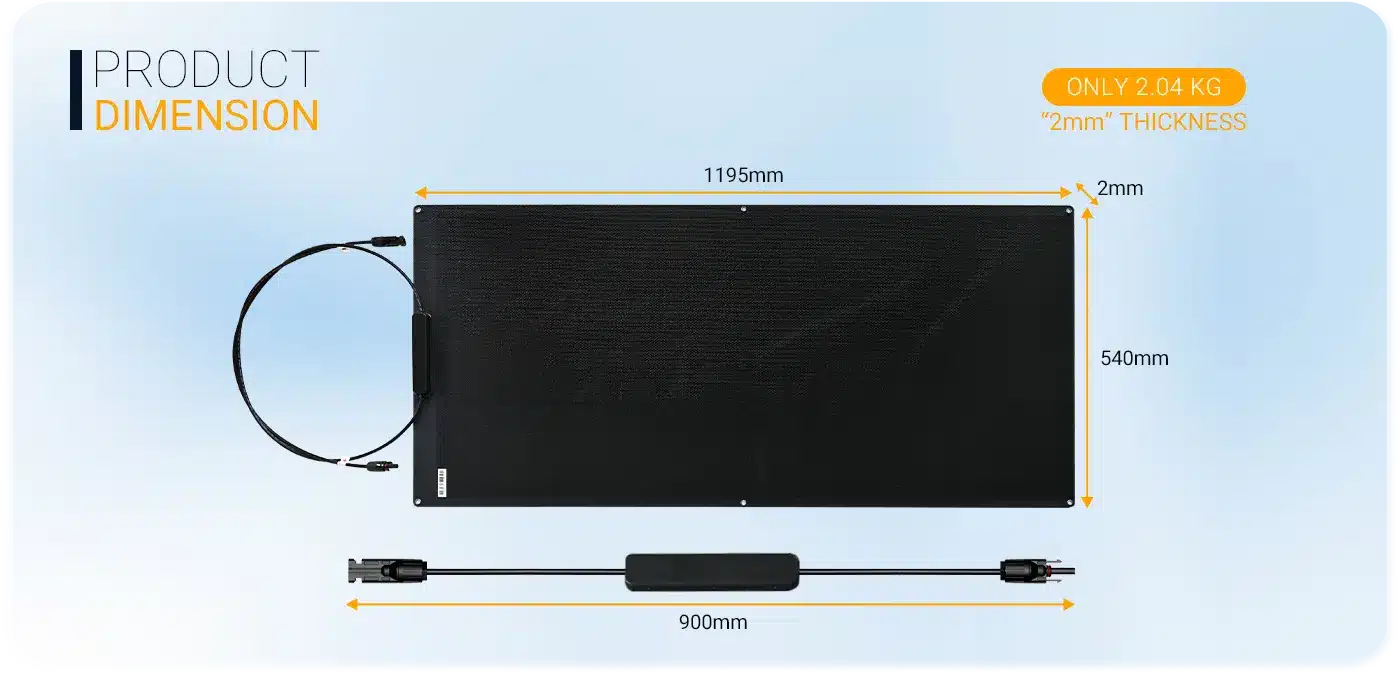

With a thickness of only 2mm, it is lighter than traditional solar panels. solar panel 120 watt is suitable for a variety of applications, such as being hung on a wall for a long time or mounted on an irregular surface.
Easy to use
The solar panel 120 watt is well designed and requires no complicated wiring. The panels are easy to install, transport, hang and dismantle with metal grommet mounting holes.
Shingled technology
Shingled technology eliminates solar cell spacing by overlapping small solar cells. More cells can be packaged in the same module area, increasing module power. Shingled solar panels can produce more power in the same amount of time. The hot spot effect is significantly reduced.

Sungold Black solar panels flexible 120w

Our lightweight monocrystalline solar panels not only improve module efficiency but also minimize weight. This makes it an ideal choice for various off-grid solar systems, especially suitable for transportation applications such as RVs and boats. The solar panel frame is constructed with lightweight substrates and laminates, making it highly suitable for outdoor environments.
Our design combines high-efficiency (PERC) monocrystalline solar cells with half-cut cell technology to enhance electrical performance and power generation efficiency. Additionally, the panel comes equipped with pre-drilled mounting holes, solar connectors, and a junction box, making installation quick and hassle-free. No matter where you are, our product will provide you with high-performance, reliable energy solutions, ensuring your outdoor adventure journeys are more convenient and enjoyable.
Sungold Black solar panels flexible 120w

Disruptive ETFE Technology

The 150W flexible solar panel incorporates groundbreaking ETFE film technology, featuring exceptional high transparency and remarkable flexibility, far surpassing other solar panels that use PET films. It also demonstrates outstanding heat resistance. Its surface properties not only include anti-soiling features but also possess a “self-cleaning” characteristic.
The 150W flexible solar panel incorporates groundbreaking ETFE film technology, featuring exceptional high transparency and remarkable flexibility, far surpassing other solar panels that use PET films. It also demonstrates outstanding heat resistance. Its surface properties not only include anti-soiling features but also possess a “self-cleaning” characteristic.
Disruptive ETFE Technology

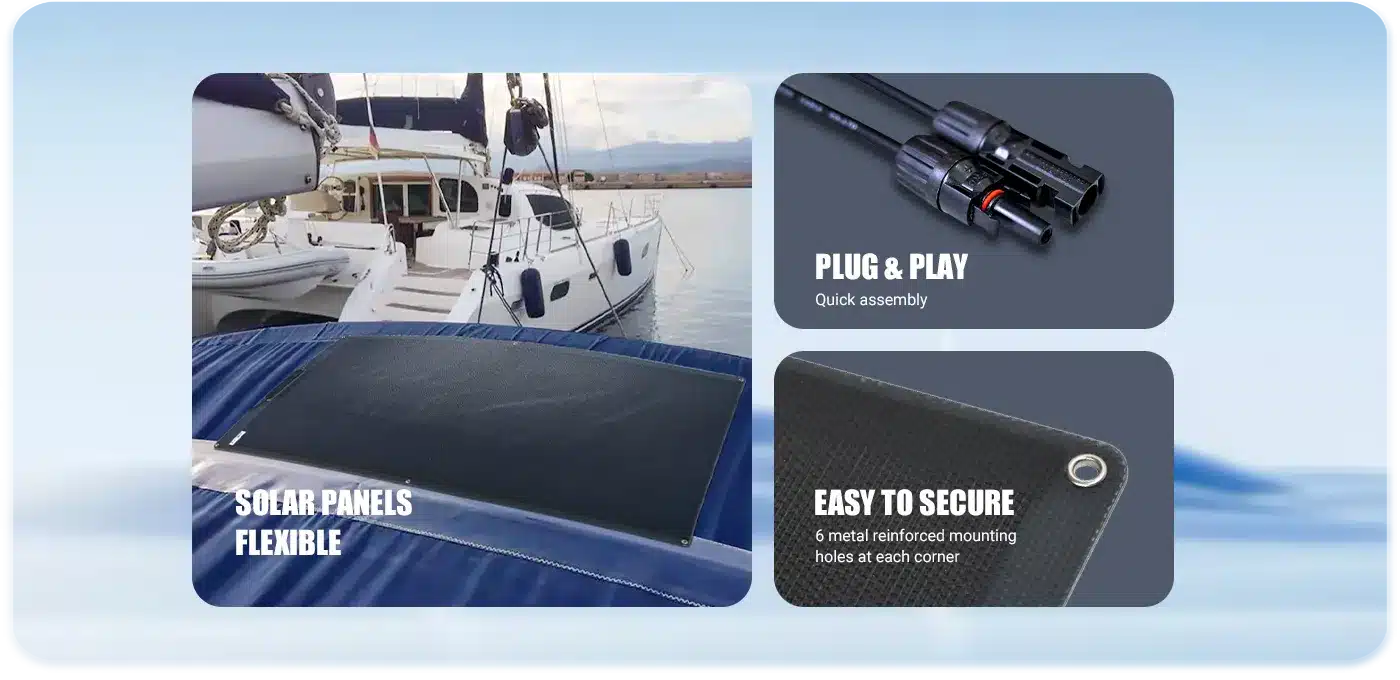

Inherent Flexibility, Optimal Curvature - Wider Range of Applications

This flexible solar panel boasts strong flexibility, making it suitable for a wider range of applications compared to many other flexible solar panels. Moreover, the thickness of the 150W solar panel is less than one-tenth of an inch, making it extremely lightweight and facilitating effortless transportation and installation. Whether you have a boat or a RV, this monocrystalline solar panel can seamlessly and easily adhere to any surface like a carpet.
Inherent Flexibility
Edit Content

Maximum power(Pmax)

120W

Open-circuit voltage(Voc)

24.0V

Voltage at Pmax(Vmp)

20.3V

Short-circuit current(Isc)

6.27A

Current at Pmax(Imp)

5.92A

Cells efficiency(%)

22.0%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

Size

1195*540*3mm

Warranty

5 years
