SG-TF-M-70W

Sungold flexible solar panels marine TF-M-70W

Polymer composite material / 5 years warranty/ANTI-TRAMPLING
SG-TF-M-70W small solar flexible panel utilizes single-crystal cells, boasting an impressive conversion efficiency of up to 23%. This innovative product features a breakthrough in material design, incorporating special patented materials from ancient times for improved battery protection. By enhancing absorption of impact, damage to the battery is minimized. This solar panel is an ideal solution for a variety of applications including outdoor, RV, home, BIPV, and more. With its quality assurance and extended application scope, it provides an excellent energy solution for any situation.
make the most of every sunlight

Features

ADOPT POLYMER COMPOSITE MATERIAL

Adopt Polymer Composite Material

LIGHTER AND FLEXIBLE
LIGHTER AND THINNER
5 YEARS WARRANTY
Anti-trampling
EXCLUSIVE PATENTED MATERIAL
TF-M-50w use an organic polymer composite to replace the typical glass front sheet as a laminant. The polymer composite material used is extremely durable, capable of withstanding extreme temperatures and climate conditions.

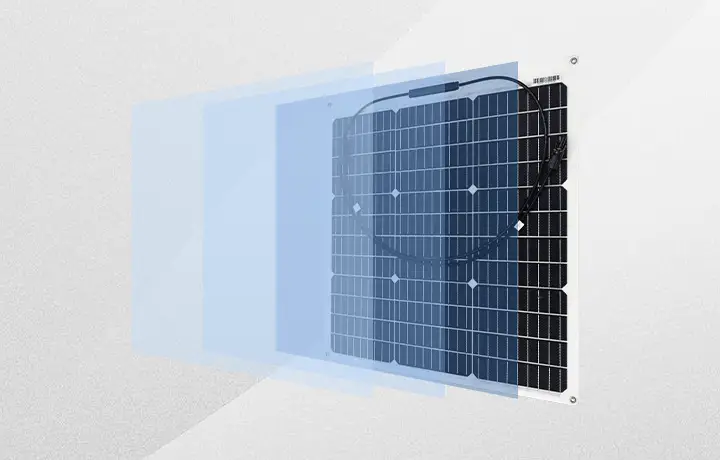

ADOPT POLYMER COMPOSITE MATERIAL
Ultra light and thin, more flexible
The TF Series solar panel is only 2mm thick. It uses Sungold’s patented material, which allows the solar panels to bend more while protecting the cells. This solar panel is more flexible and fits many curves, allowing it to conform to a variety of unique shapes.
5 years warranty
The TF-M-55w solar flexible panel products come with a 5-year warranty, which is supported by rigorous trampling and hail resistance tests conducted by the company. These tests have verified the product’s protection and stability, providing confidence in its reliability. Additionally, the product features a newly patented material that has proven highly effective in protecting the battery sheet, further ensuring the product’s durability and longevity.

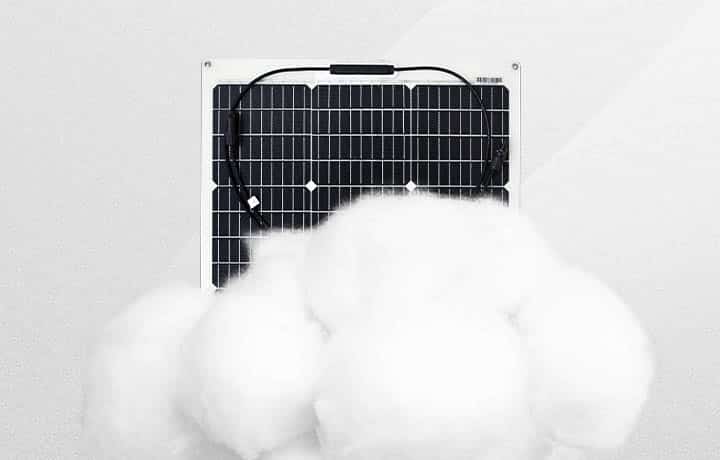

LIGHTER AND THINNER
ANTI-TRAMPLING
The TF-M-50w solar flexible panel samples were subjected to rigorous hail test conditions, which included a hail diameter range of 24.20 to 25.62mm, a mass range of 7.226 to 7.731g, a test velocity range of 21.9 to 24.0m/s, and a total of 11 shots. Despite these challenging conditions, the samples exhibited no abnormalities during the test and passed the visual inspection with flying colors.
Furthermore, the samples underwent a wet leakage current test, which exposed them to a maximum system voltage of 1000 V, a test voltage of 1000 V, a solution resistivity of 996 Ω·cm, and a solution temperature of 22.9 °C. The samples successfully passed this test with no abnormalities detected, indicating their exceptional durability and reliability.
Applications

RV

Home

Yacht

Frequently Asked Questions

A half cell is obtained by cutting a standard cell in half. The half-cell module can reduce the loss of power generation due to shading. At the same time, the half cell can reduce the power loss of the whole PV module.

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

5 years warranty. TF series flexible solar panels have service life of 20 years

Sungold offers 55W, 110W, 200W, 220W, 245W, 270W light mono flexible solar panels to meet all your needs

ETFE material. ETFE material has the characteristics of weather resistance, corrosion resistance and aging resistance. ETFE material also has extremely high light transmission.

Specifications

Rated Power

70W

Open-circuit voltage(Voc)

23.3V

Voltage at Pmax(Vmp)

19.8V

Short Circuit Current

3.82A

Current at Pmax(Imp)

3.54A

Cells efficiency(%)

22.80%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.38%/℃

Voltage temperature coefficient

-0.36%/℃

Current temperature coefficient

+0.07%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

1.45kg

Dimensions

745*540*2mm

Warranty

5 years
