SG-TF-S-150W

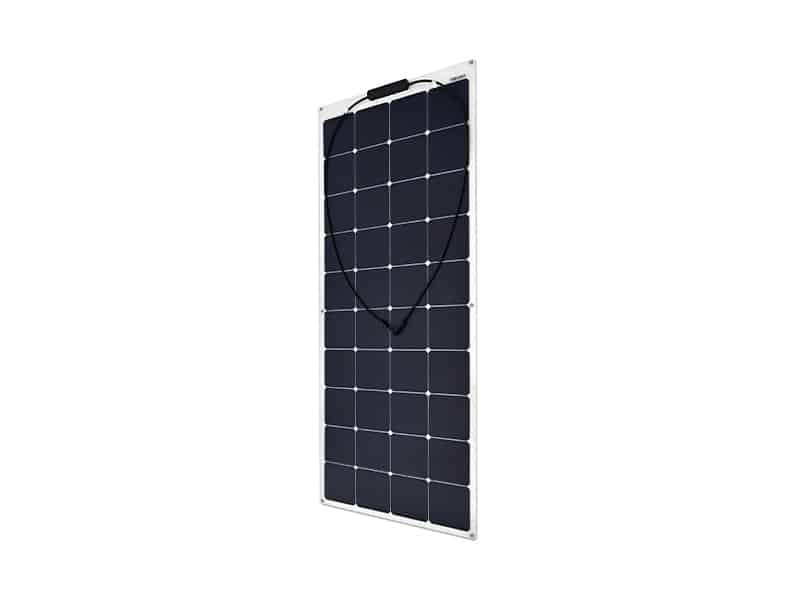

Sungold ETFE flexible solar panel SG-TF-150W
Polymer composite material /SunPower solar cells/5 years warranty
The TF-S-150W flexible solar panel kit uses SunPower cells, which have a conversion efficiency of up to 24%, making it an excellent choice for various applications such as RVs, boats, yachts, BIPV, and more. Additionally, sunold’s patented materials provide better protection for the cells and more effective absorption of impacts.
Furthermore, the TF-S-150W flexible solar panel has high flexibility and can be easily installed on uneven surfaces. It uses ETFE surface materials, ensuring excellent weather resistance, salt spray resistance, corrosion resistance, and aging resistance, thus ensuring optimal performance for many years to come.
make the most of every sunlight
Features
Exclusive Patented Material
Lighter And Thinner
Easy To Use
High Conversion And Corrosion Resistance
Exclusive Patented Material
The TF-S-150W marine flexible solar panel combines Sungold’s exclusive patented material with SunPower solar cells to create an excellent product. This unique material significantly improves weather resistance, salt spray resistance, corrosion resistance, and aging resistance, providing superior protection for solar cells. Additionally, the material enhances the absorption of impact, thereby minimizing damage to the solar cells to the greatest extent possible.
LIGHTER AND THINNER
TF-S-150W flexible solar panel is very light and thin, weighing only 2.59 kg with a thickness of only 2mm. It is very suitable for installation on RVs or in marine environments, and has flexibility and portability.
HIGHER POWER
The flexible solar panels utilize back-contact SunPower cells, which have a maximum power output of 150W and an efficiency rating of up to 22.4% to 24%. These panels demonstrate excellent performance in low-light conditions, ensuring that they can still provide adequate power support for you even during such conditions.
HIGH CONVERSION AND CORROSION RESISTANCE
The TF-S-150W flexible solar panel employs SunPower cells with a remarkable conversion efficiency of up to 24.4%. These panels are designed to operate within an ambient temperature range of -40℃ to +85℃, delivering a stable output that remains consistent over time. These panels are backed by a 5-year warranty and boast a service life of 20 years. Their durability and stable output enable them to maintain excellent performance even in adverse weather conditions.
Applications

RV

Home

Yacht

Frequently Asked Questions

Yes. It’s just that the power generation efficiency of solar panels will be reduced.

Yes. TF series flexible solar panel is designed with patented materials, combined with SunPower cells, and can be fully adapted to long-term walking after strict pedaling experiments. It will not cause cell rupture, and will not affect the warranty period.

This 120W flex solar panel is suitable for RVs, vans, caravans and yachts. It can also be installed on balcony to provide power to your home

TF series flexible solar panels use Sungold’s exclusive patented materials. The material allows solar panels to be greatly improved in terms of weather resistance, salt spray resistance, corrosion resistance and aging resistance.

5 years warranty. TF series flexible solar panels have service life of 20 years.

Specifications

Maximum power(Pmax)

150W

Open-circuit voltage(Voc)

29.2V

Voltage at Pmax(Vmp)

24.8V

Short-circuit current(Isc)

6.41A

Current at Pmax(Imp)

6.05A

Cells efficiency(%)

24.40%

The maximum system voltage

200V DC(IEC)

Power temperature coefficient

-0.270%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

+0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Weight

2.59kg

Dimensions

1330*540*3mm

Warranty

5 years
