SGBF2-180W

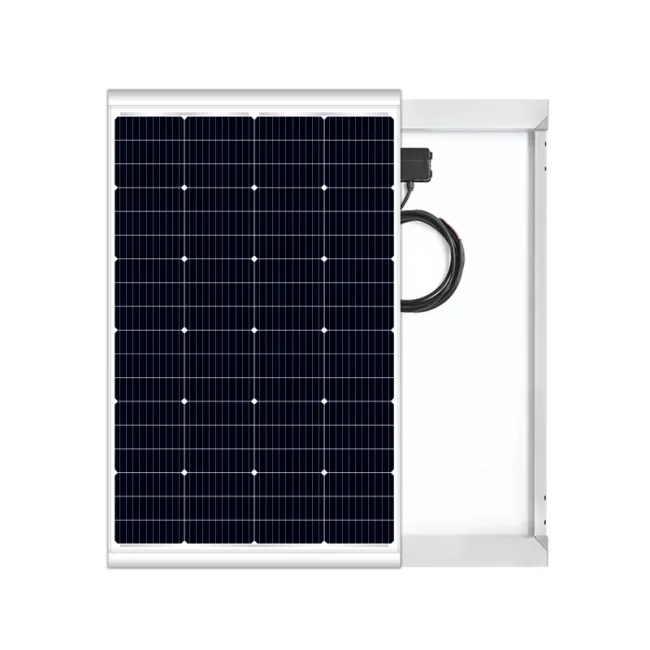

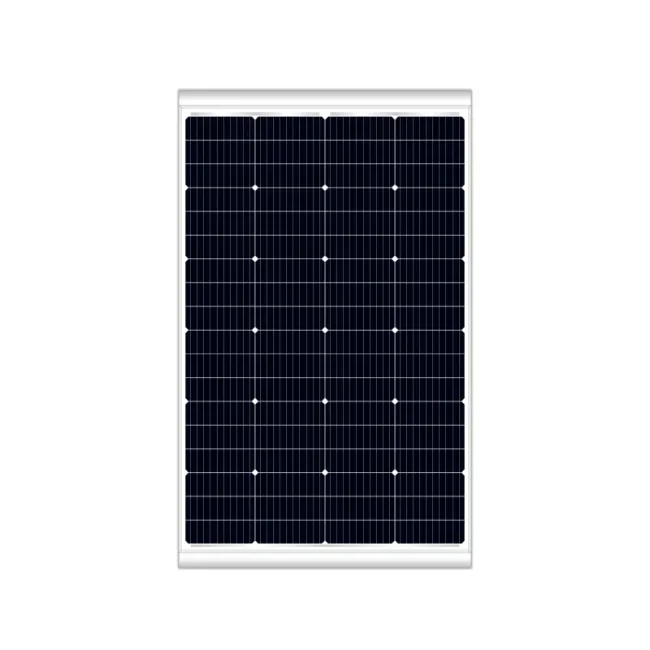

Sungold best solar panels for RV SGBF2-180W

The Sungold SGBF2-180W has a maximum power output of 180W and a conversion efficiency of 22.70%. It uses monocrystalline solar cells to provide high efficiency and stability in output, making it the best solar panels for RV.

Sungold SGBF2-180W solar panel is designed with an aluminum frame and glass panel, making it highly durable and long-lasting with a lifespan of 25 years. Additionally, Sungold offers a 10-year warranty,  reducing the hassle of replacing solar panels for RVs. With the best solar panels for RV, RV owners can enjoy reliable and efficient power for many years without frequent replacements.

MAKE THE MOST OF EVERY SUNLIGHT

Features
High efficiency

REMARKABLE EFFICIENCY

Durable and Robust

RESILIENT PROTECTION

High Safety

RESILIENT PROTECTION

High Transparency

RESILIENT PROTECTION

REMARKABLE EFFICIENCY

Sungold SGBF2-180W has a maximum power of 180W and uses mono-crystalline cells to generate 22.70% of the electricity needed to meet the basic electrical load of a caravan, and is considered by many RV campers to be the best solar panels for RVs.

High efficiency
High transparency

RESILIENT PROTECTION

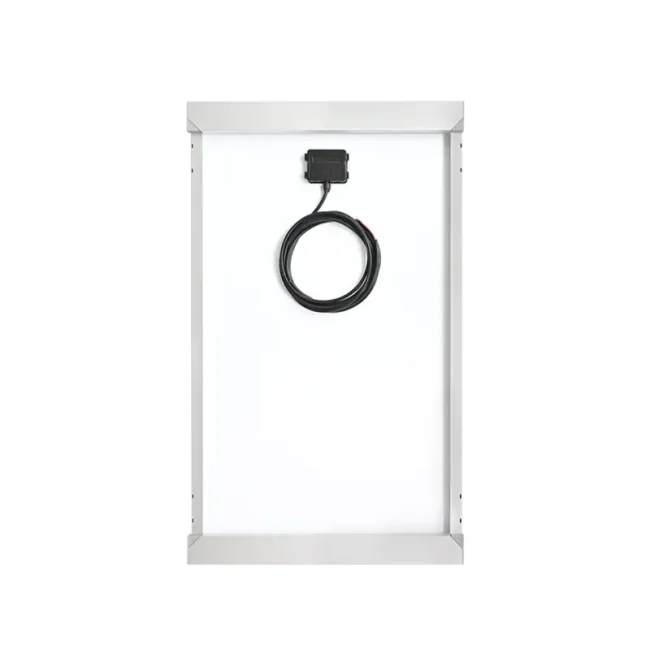

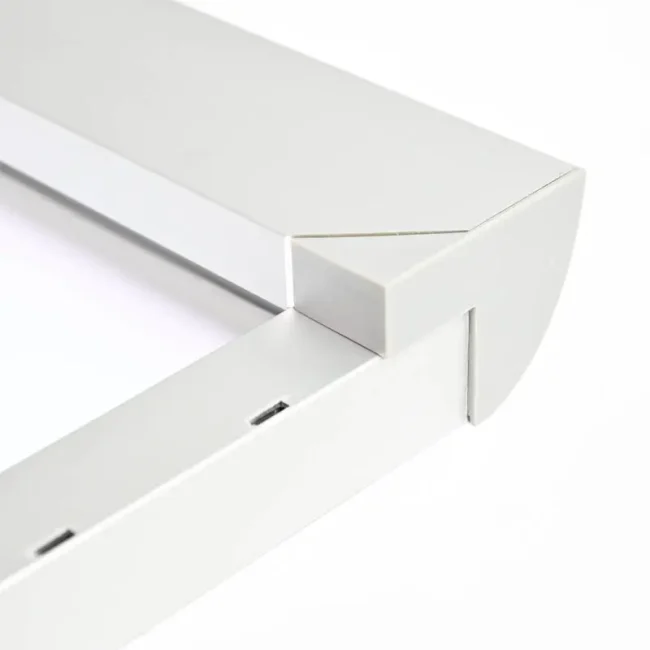

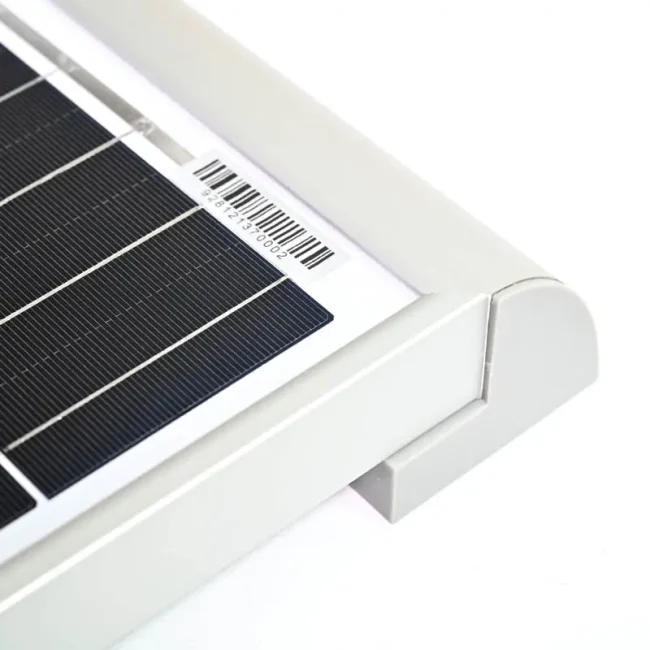

Sungold best solar panels for RV SGBF2-180W have an aluminum frame, a glass panel, and a robust PET backing, providing double protection for the solar cells without worrying about weather damage, making it more suitable for outdoor life.

SUPERB ADAPTIVENESS

Sungold best solar panels for RV SGBF2-180W are equipped with a controller, and Anderson plugs, making them highly adaptable for use in a variety of environments and providing you with a more comfortable and convenient environment for your electricity.

Versatility
Durable and robust

GREAT TRANSPARENCY

Sungold best solar panels for RV SGBF2-180W have a glass panel that extends the life of the module while reducing losses due to refraction of sunlight, and the high transparency increases the efficiency of the module. The glass surface is easy to clean and ensures more sunlight is absorbed by the cells.

Applications

RV

Home

Outdoor

Frequently Asked Questions

The Sungold Best Solar Panels for RV SGBF2-180W has a power rating of 180W.

Its size is 1260*770*55mm, if you have other size requirements, you can contact Sungold for customization service.

It consists of 4*18 monocrystalline cells measuring 182*60.67mm with high conversion efficiency.

This solar panel is suitable for all types of RVs or motorhomes and can provide them with reliable power.

This solar panel has a 10 year warranty and has a 25 year life span.

Of course, the SCBF range of caravan glass panels from Sungold includes five different wattages: 100W, 120W, 135W, 150W and 180W, if you don’t have the wattage you need, you can contact us to find out more.

With an efficiency of 22.70%, this solar panel can efficiently convert solar energy into electricity in sunny conditions.

Specifications

Maximum power(Pmax)

180W

Open-circuit voltage(Voc)

24.0V

Voltage at Pmax(Vmp)

20.5V

Short-circuit current(Isc)

9.22A

Current at Pmax(Imp)

8.79A

Cells efficiency(%)

22.70%

The maximum system voltage

DC1000

Power temperature coefficient

-0.42%/℃

Voltage temperature coefficient

-0.32%/℃

Power temperature coefficient

+0.04%/℃

Output power tolerance

±3%

Operating temperature

-40℃~85℃

Weight

-

Module Dimension

1260*770*55mm

Warranty

10 years
