SGSP-135W

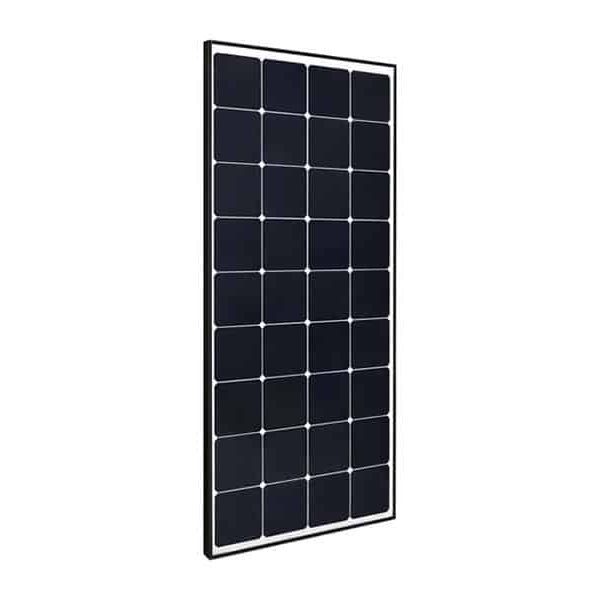

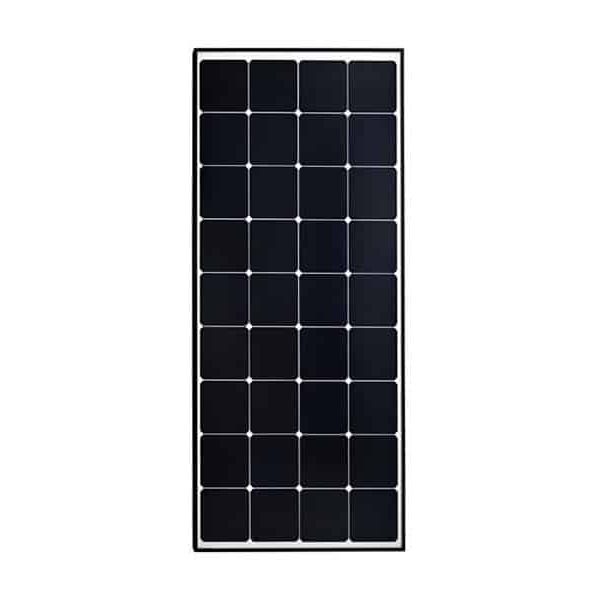

Sungold pergola with solar panels SGSP-135W

SGSP series solar rigid panel uses the most mature product design, the overall product has been available for many years, has been tested for a long time environment, and is the most stable design.
SGSP series is made with high-efficiency SunPower solar cells. SunPower solar cell Classic IBC battery process used by SunPower. There is no grid line on the front of the battery to avoid the shading loss of the metal electrode, maximize the absorption of sunlight, and maximize the conversion efficiency. The conversion efficiency is up to 24.40%

SGSP series meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

make the most of every sunlight
Features
High performance cells
Easy to use
Durable

Waterproof

High performance cells
24.40% efficiency with Sunpower cells. Sunpower cells are among the best in the world, and SunPower has been the global record holder for high-efficiency solar cells with higher conversion efficiency.
Easy to use

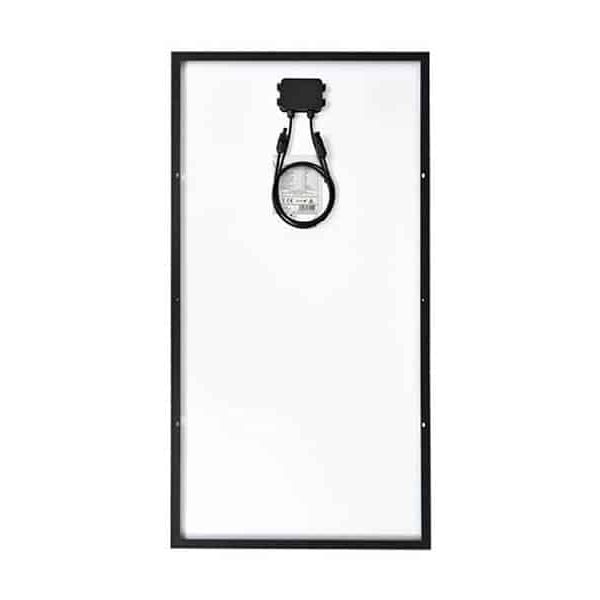

There is a fully waterproof MC4 connector at the output of the solar panel to ensure the electrical connection. The sturdy aluminum frame can be drilled to secure to the RV.

Durable

The corrosion-resistant aluminum frame allows extended outdoor use. The SGSP series 120w fixed solar panel can last for decades.

Waterproof
SGSP solar glass panel has IP67 waterproof rating, the whole product will not be affected by rain or water splashing, you can put the product in outdoor work for a long time without worrying about any quality problems.
Applications

RV

Home

Yacht

Frequently Asked Questions
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP solar glass panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Specifications

Maximum power(Pmax)

135W

Open-circuit voltage(Voc)

26.2V

Voltage at Pmax(Vmp)

22.3V

Short-circuit current(Isc)

6.42A

Current at Pmax(Imp)

6.06A

Cells efficiency(%)

24.40%

The maximum system voltage

1000V DC(IEC)

Power temperature coefficient

-0.27%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

1190*540*35mm

Weight

7.24kg

Warranty

10 years
