SGSP-40W

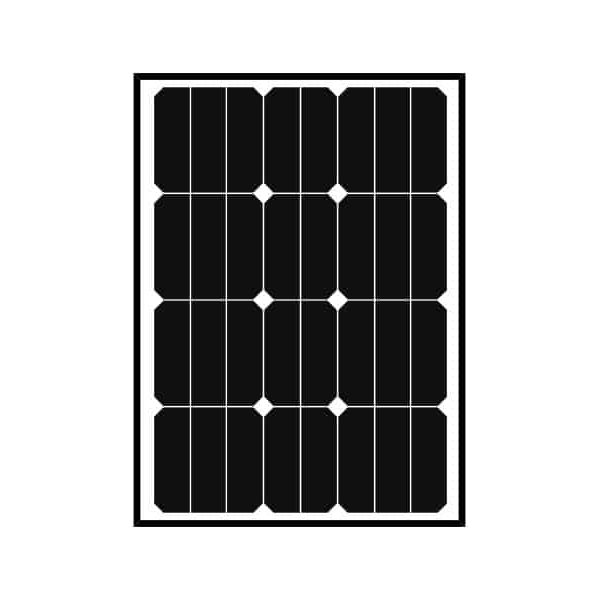

Sungold 40 watt solar panel SGSP-40W

SGSP solar rigid panel uses the most mature product design, the overall product has been available for many years, has been tested for a long time environment, is the most stable design.
SGSP is made with high-efficiency SunPower solar cells. SunPower solar cell Classic IBC battery process used by SunPower. There is no grid line on the front of the battery to avoid the shading loss of the metal electrode, maximize the absorption of sunlight, and maximize the conversion efficiency. The conversion efficiency is up to 24.40%

SGSP series meet different needs of applications. Ground mount compatible. Compatible with on-grid and off-grid inverters. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

make the most of every sunlight
Features
High performance cells
Easy to Connect and Mount
Durable
Versatile
High performance cells

Sunpower cells are 20-30% more efficient than monocrystalline cells and have the added benefit of being extremely reliable. For example, SUNPOWER photovoltaic cells have been selected to power the Solar Impulse solar aircraft.

Easy to Connect and Mount

Use waterproof MC4 connectors to ensure electrical connection. Meet the needs of different applications. Ground-mount compatible. Compatible with both grid-tied and off-grid inverters. Pre-drilled holes on the back of the panel for quick installation and fixing.

Durable
10 years warranty, 25 years service life Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life. EL tested solar modules; no hot-spot heating . TPT back sheet ensures smooth performance over a long period of time.
Waterproof

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance. IP67-rated junction box provides complete protection against environmental particles and protection from low-pressure water flow.

Applications

RV

Home

Yacht

Frequently Asked Questions
Conventional RV roof, off-grid roof system, traffic road peripheral products, outdoor fixed use, etc.
SGSP solar glass panel is one of the most mature products. Although the weight of the product is relatively heavy, it is stable and the worse-saving way of use greatly reduces the after-sales worries of customers.
Yes, but note the amperage capacity of the controller when connecting panels and do not exceed the controller capacity.
Specifications

Maximum power(Pmax)

40W

Open-circuit voltage(Voc)

23.3V

Voltage at Pmax(Vmp)

19.8V

Short-circuit current(Isc)

2.14A

Current at Pmax(Imp)

2.03A

Cells efficiency(%)

24.40%

The maximum system voltage

600V DC(IEC)

Power temperature coefficient

-0.27%/℃

Voltage temperature coefficient

-0.236%/℃

Current temperature coefficient

0.058%/℃

Output power tolerance

±3%

Operating temperature

-40~85℃

Size

540*395*25mm

Weight

2.52kg

Warranty

10 years
