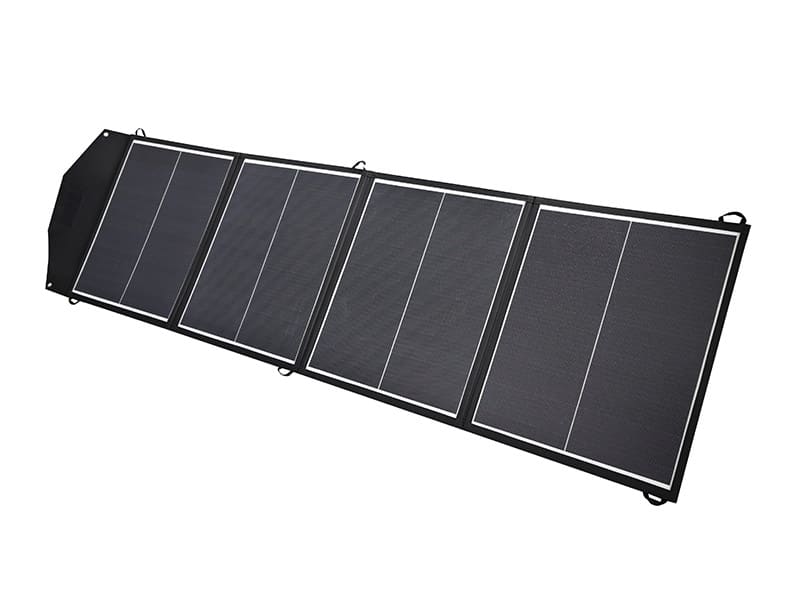

Sungold 200 watt portable solar panel

Sungold SPC-TF-D-200W portable solar panel is made of ETFE and uses UV-resistant canvas to enhance the performance of the solar panel. The portable solar charging bag is not only high power output but also foldable and lightweight. The whole product is only 83.0*24.2*0.16 inches when opened, which is very easy to carry. It can greatly extend your travel time. Use it in outdoor camping, RV travel, and other off-grid environments.
This portable soalr panel has passed CE and ROHS certifications. The product’s solar cell performance, as well as its reliability and environmental friendliness, have been strongly certified. Sungold also has the advantage of the tax rate, the product is affordable and very cost-effective.
make the most of every
Edit Content

PERC shingled solar cells

Lightweight and foldable
ETFE surface material

with portable power station

PERC shingled solar cells are used

This Sungold SPC-TF-D-200W portable solar panel adopts PERC shingled solar cells with the latest Shingled technology, making it the highest quality among solar panels. Compared with other cells, PERC shingled solar cells can absorb more sunlight in the same area, giving you a superb experience.

Lightweight and foldable

Sungold SPC-TF-D-200W portable solar charging bag is lightweight, easy to carry, and convenient to use. It is composed of four 50W solar panels. The charging pack also comes with four adjustable brackets for easy installation and angle adjustment, which can absorb the sunlight to the maximum extent.

ETFE surface material

Sungold SPC-TF-D-200W portable solar panel is made of ETFE surface material, which is a laminated outer film with high UV resistance and good light transmission, achieving 98% light transmission. It also provides excellent weather resistance as well as salt spray resistance for solar panels, which can extend the life of solar panels and provide high protection performance from occasional rain or wet fog

Multi-functional compatible

Sungold SPC-TF-D-200W portable solar panel is compatible with portable power stations, so you don’t have to worry about running out of electricity when using it in an off-grid environment. It is your best solution for outdoor solar applications.



Unleash the power of the 200 watt portable solar panel

The 200 watt portable solar panel is really a mid-range option for solar charging. These should be able to generate enough power for most common household appliances such as microwaves and LCD monitors.

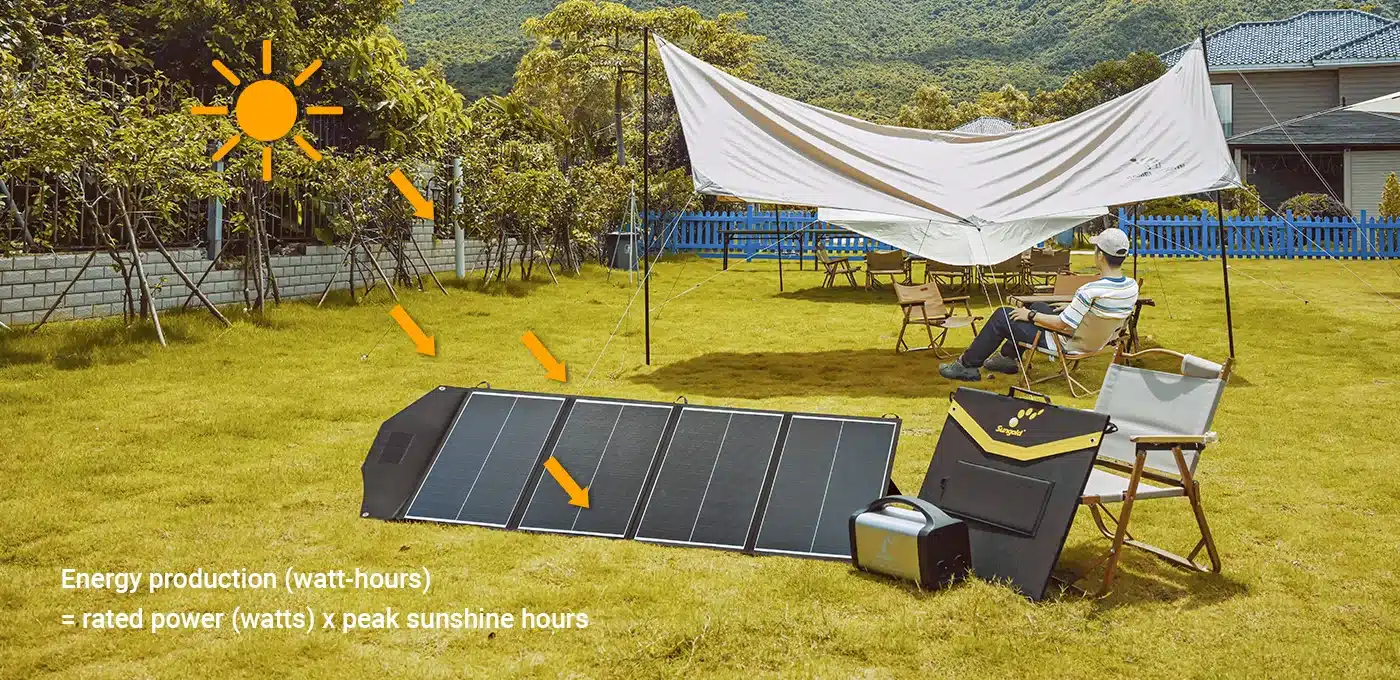

Unleash the power of the 200 watt portable solar panel

Unleash the power of the 200 watt portable solar panel

A 200 watt power solar panel can produce between 700 watt-hours and 1300 watt-hours of energy per day. However, it should be noted that the amount of power generated will depend on where the solar panel is installed and the weather conditions of the day.
The best way to calculate the average amount of power generated by a 200 watt portable solar panel per day is to multiply the panel’s power rating by the peak sunshine hours of the day. In other words, the formula is
Energy production (watt-hours) = rated power (watts) x peak sunshine hours.
For example, assuming 5 hours of peak sunlight; a 200 watt solar panel produces 200 watts x 5 hours of peak sunlight = 1000 watt-hours.

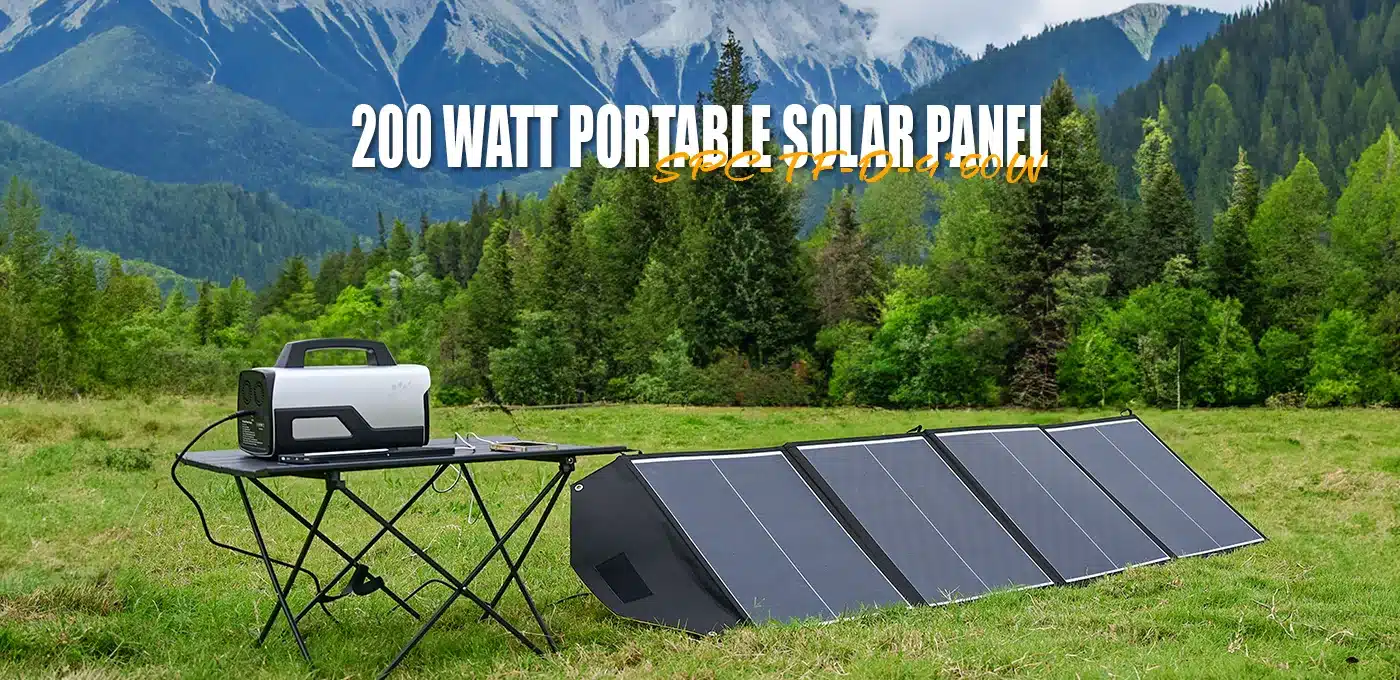

How many amp hours does a 200 watt portable solar panel produce?

On average, a 200 watt – 12-volt solar panel is capable of producing 60 to 100 amp hours of current per day. If the solar panel is exposed to direct sunlight, it can generate 10 to 12 amps per hour. Assuming you get 6 hours of peak sunlight per day, the average amp-hour energy for the day would be about 60-70 amp-hours.
It’s worth noting, however, that this assumes about 5 hours of peak sunlight. In reality, however, there may be fewer hours of sunlight, thus reducing the number of amp-hours per day. Since winter provides only about 3 hours of peak sunlight, the average AMP hours generated by a 200 watt solar panel is only about 30 to 40 hours.

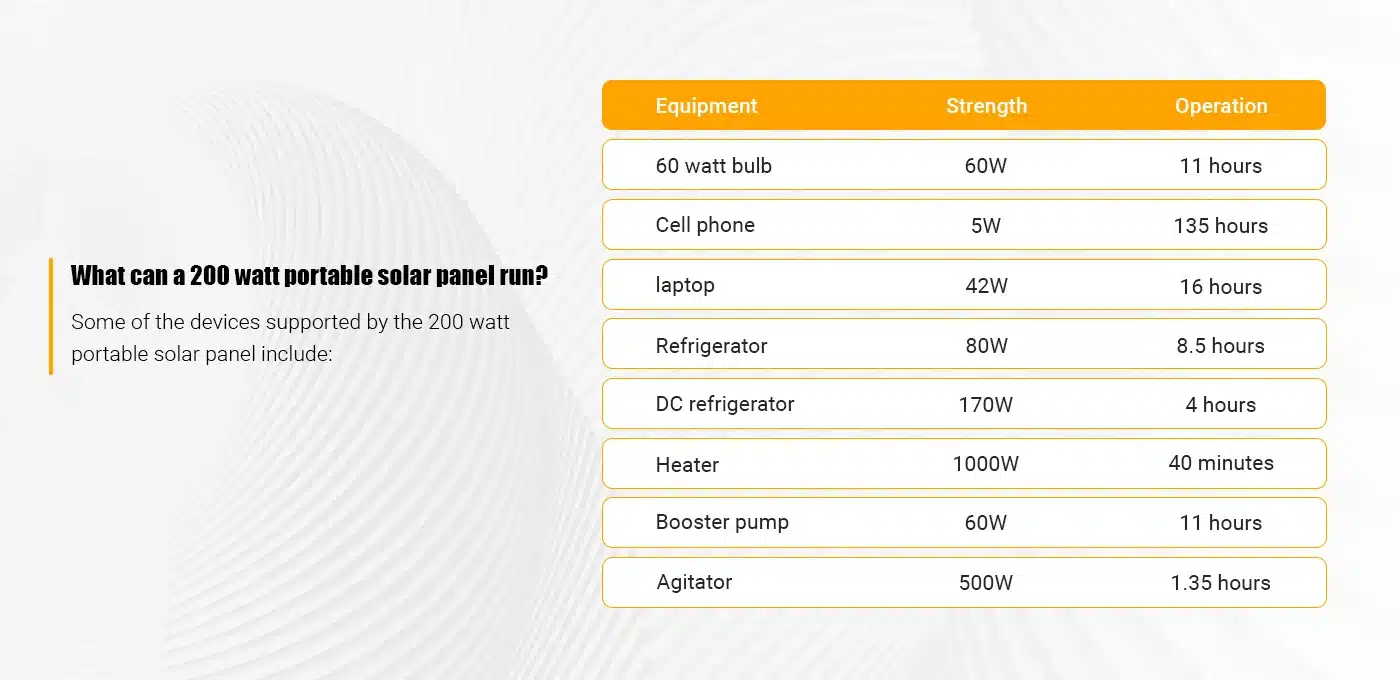

What can a 200 watt portable solar panel run?

In the United States, the average daily power production of a 200 watt portable solar panel ranges from 473 Wh/day to over 972 Wh/day. From this perspective, you will find that solar panels provide the best experience in powering your appliances.
Some of the devices supported by the 200 watt portable solar panel include:
What can a 200 watt portable solar panel run
The runtimes specified above are average runtimes and are when only the specific device is used. Combined use will reduce the time.
Assuming these devices will not be running all the time, a 200 watt portable solar panel should be able to run a laptop, LED lights, an energy-efficient mini fridge, an exhaust fan, a coffee maker, and a 32-inch LED TV.

What can a 200 watt portable solar panel run?

If you’re in the market for a 200 watt portable solar panel, you’re making a smart choice in renewable energy. However, with so many options available today, it can be challenging to determine which one is best for you.
Choose a reputable brand with a longer warranty. Having a manufacturer’s warranty will give you peace of mind knowing that you are protected if something goes wrong with your panels. The pioneering manufacturer of Sungold solar panels has 15 years of experience in the industry.
The Sungold 200 watt portable solar panel has a conversion rate of up to 24%, which means it can convert a higher percentage of sunlight into electricity, resulting in more efficient power. The Sungold 200 watt portable solar panel is also more durable due to its proven experience and dedication to high quality.
Edit Content

Rated Power

135W

Open-circuit voltage(Voc)

26.27V

Voltage at Pmax(Vmp)

22.32V

Short-circuit current(Isc)

6.41A

Current at Pmax(Imp)

6.05A

Solar cell

Shingle solar cell

Cells efficiency(%)

24.40%

The maximum system voltage

100V DC(IEC)

Power temperature coefficient

-0.43%/℃

Voltage temperature coefficient

-0.34%/℃

Current temperature coefficient

0.05%/℃

Certifications

CE,ROHS

Output power tolerance

±3%

Operating temperature

-10~60℃

Weight

3.90kg (8.60lbs)

Folding Size

560*440*20mm

Unfold Size

1525*560*4mm

Warranty

1 year

Edit Content

Edit Content
The Sungold SPC-TF-S-135W was tested in an ideal laboratory. The output of a solar panel can be affected by a variety of factors such as unexpected weather (cold, cloudy, and rainy), the angle of the sun’s rays, and the absence of shadows.
Yes. Sungold SPC Series solar panels are compatible with most portable charging stations, including Jackery, Ecoflow, Anker, Rockpals, Blutti, and others.
Yes. Sungold SPC Series solar panels are IP65-rated waterproof, but please do not leave them in the rain or submerge them in water.
Thank you for your interest in the Sungold SPC Series portable solar panel. We offer a two-year warranty on this solar panel. If you have any problems using the product, you can contact us. We are always at your service.
Dear customer, this product does not require an additional controller. There are various connectors for this product to connect directly to the battery.
